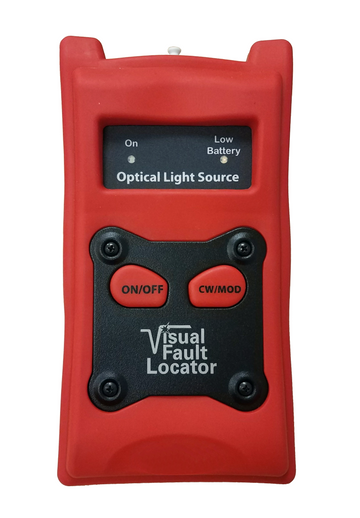

Visual Fault Locator with LC Adapter (Single Mode & Multimode)
This Visual Fault Locator is an essential tool for troubleshooting a fiber optic system.
A 1mW fiber coupled laser sends a 650 nm visible red light down the length of the fiber. The escaping light allows easy identification of breaks or severe macro bends.
Internal optics are used to optimize the units performance for either singlemode or multimode applications. Fiber end identification and continuity testing for long distances are also natural applications.
This unit operates with two AA batteries (provided).
Features:
- Identify Breaks, Macro Bends
- Great for Fiber End Identification
- Singlemode and Multimode Applications
- 1mW Fiber Coupled Laser
- 650 nm Visible Red Light
- Protective Rubber Boot
Download Products Spec Sheet:
| Product Specifications | |
| Output Power | 1 mW minimum |
| Wavelength | 650 nm |
| Battery | (2) AA |
| Battery Life (typical) |
30hrs continuous 40hrs modulated |
| Pulse Rate | 1Hz |
| Emission Indicator | Power indicator in sync when laser in use |
| Size | 6 1/4" L x 3 1/4" W x 1 1/4" D |
| Weight | 7.5 oz |
| Operating Temp. | -10°C to +50°C |
