Spider Fan-Out Kit - 12 Fibers, 1 meter Tubing, 250µm Fiber, Yellow Color
Corning Cable Systems' Spider Fan-Out Kit is a low-cost termination option for multi-fiber cables. This kit is designed for both factory and field termination of tight-buffered and loose tube non-armored cables with up to 12 fibers.
This kit provides the end-user with a craft-friendly, modular product that enables simple step-by-step assembly for successful installation. Installation of the kit eliminates the need for patch panels at low-cost termination points.

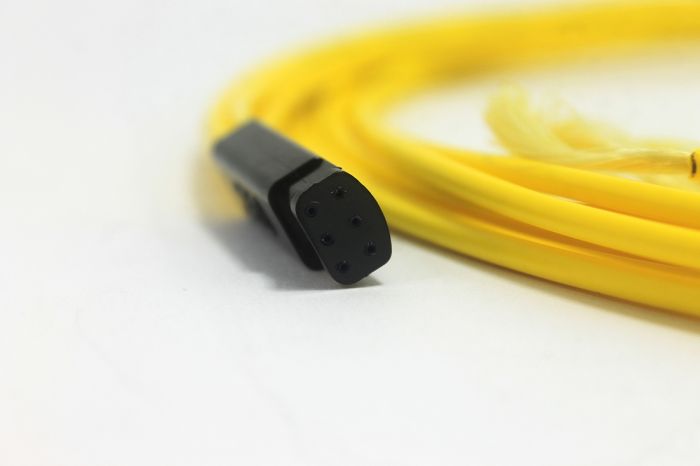

The Spider Fan-Out Kit terminates and provides pull-out protection for bare fibers (250µm). Installation of the product is simple. The cable jacket is stripped back and the fibers are threaded into the modular 6-fiber fan-out inserts. These inserts consist of six 1-meter lengths of fan-out tubing secured in a composite assembly.
The fan-out tubing provides three layers of protection consisting of a Teflon inner tube (into which the fiber is inserted), an aramid yarn strength member and an outer protective PVC jacket (3mm diameter, yellow colored). The fan-out insert then snaps into the main spider body. When all the inserts have been loaded, the outer housing is installed to complete the assembly.
Spider Fan Out Kit, Base, 2 Slot
Spider Fan Out Kit, Base, 4 Slot
