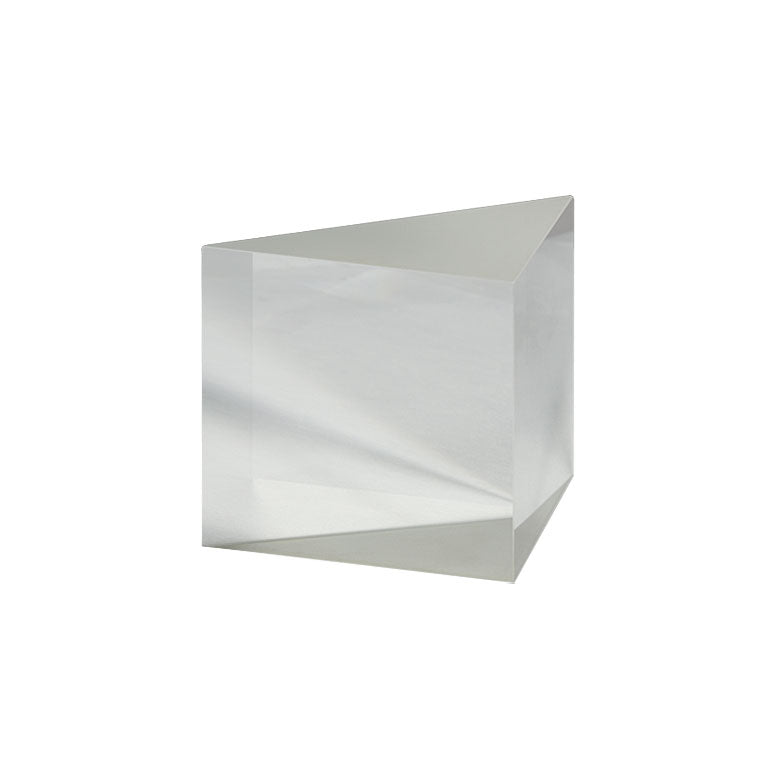

T-PS703 - CaF2 Right-Angle Prism, Uncoated, L = 10 mm

Part No.: T-PS703

$ 550.00

T-PS703 - CaF2 Right-Angle Prism, Uncoated, L = 10 mm

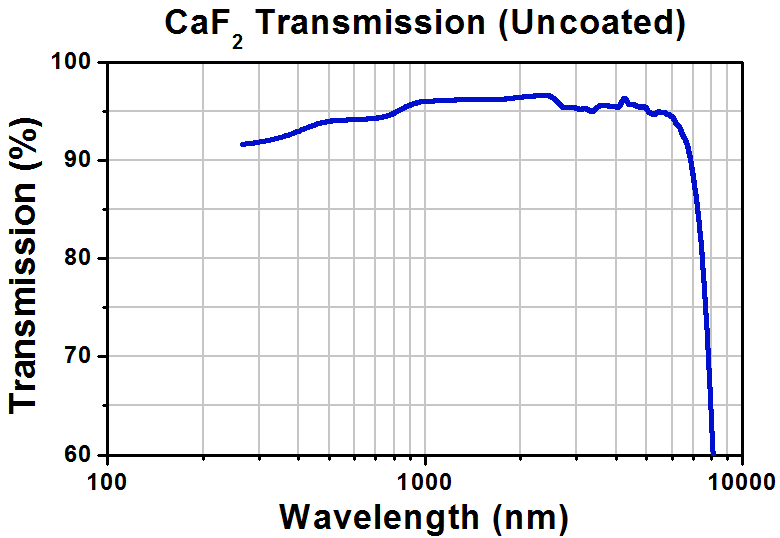

Choose a CaF₂ Right-Angle Prism for applications requiring high transmission in the 180 nm - 8 µm range. The material exhibits a low refractive index, varying from 1.35 to 1.51 within its usage range of 180 nm to 8.0 µm, as well as an extremely high laser damage threshold. Please see the Graphs tab for a graph of index of refraction vs wavelength for calcium fluoride. Calcium fluoride is also fairly chemically inert and offers superior hardness compared to its barium fluoride, magnesium fluoride, and lithium fluoride cousins.

Item #	Material	L	X	Angle Tolerance	Dimensional Tolerance
T-PS605	UV Fused Silica	3 mm	4.2 mm	±10 arcmin	±0.2 mm
T-PS609		5 mm	7.1 mm	±3 arcmin	±0.2 mm
T-PS610		10 mm	14.1 mm	±3 arcmin	±0.2 mm
T-PS614		12.5 mm	17.7 mm	±3 arcmin	±0.2 mm
T-PS615		15 mm	21.2 mm	±3 arcmin	±0.2 mm
T-PS608		20 mm	28.3 mm	±3 arcmin	±0.2 mm
T-PS611		25 mm	35.4 mm	±3 arcmin	±0.2 mm
T-PS612		40 mm	56.6 mm	±3 arcmin	±0.2 mm
T-PS613		60 mm	84.9 mm	±3 arcmin	±0.2 mm
T-PS905	N-BK7	3 mm	4.2 mm	±10 arcmin	±0.1 mm
T-PS909		5 mm	7.1 mm	±3 arcmin	±0.1 mm
T-PS910		10 mm	14.1 mm	±3 arcmin	±0.1 mm
T-PS914		12.5 mm	17.7 mm	±3 arcmin	±0.2 mm
T-PS915		15 mm	21.2 mm	±3 arcmin	±0.2 mm
T-PS908		20 mm	28.3 mm	±3 arcmin	±0.1 mm
T-PS911		25 mm	35.4 mm	±3 arcmin	±0.1 mm
T-PS912		40 mm	56.6 mm	±3 arcmin	±0.1 mm
T-PS919		50 mm	70.7 mm	±3 arcmin	±0.1 mm
T-PS913		60 mm	84.9 mm	±3 arcmin	±0.1 mm
T-PS703	CaF	10 mm	14.1 mm	±10 arcmin	+0.0/-0.3 mm
T-PS706		12.5 mm	17.7 mm	±10 arcmin	±0.2 mm
T-PS707		15 mm	21.2 mm	±10 arcmin	±0.2 mm
T-PS704		25 mm	35.4 mm	±10 arcmin	+0.0/-0.3 mm
T-PS701	ZnSe	10 mm	14.1 mm	±10 arcmin	+0.0/-0.3 mm
T-PS702	ZnSe	25 mm	35.4 mm	±10 arcmin	+0.0/-0.3 mm
