What is Synchronous Transmission and Asynchronous Transmission?

>> What is Synchronous Transmission?

The term synchronous is used to describe a continuous and consistent timed transfer of data blocks.

Synchronous data transmission is a data transfer method in which a continuous stream of data signals is accompanied by timing signals (generated by an electronic clock) to ensure that the transmitter and the receiver are in step (synchronized) with one another. The data is sent in blocks (called frames or packets) spaced by fixed time intervals.

Synchronous transmission modes are used when large amounts of data must be transferred very quickly from one location to the other. The speed of the synchronous connection is attained by transferring data in large blocks instead of individual characters.

Synchronous transmission synchronizes transmission speeds at both the receiving and sending end of the transmission using clock signals built into each component. A continual stream of data is then sent between the two nodes.

The data blocks are grouped and spaced in regular intervals and are preceded by special characters called syn or synchronous idle characters. See the following illustration.

Figure 1. Synchronous transmission


After the syn characters are received by the remote device, they are decoded and used to synchronize the connection. After the connection is correctly synchronized, data transmission may begin.

An analogy of synchronous transmission would be the transmission of a large text document. Before the document is transferred across the synchronous line, it is first broken into blocks of sentences or paragraphs. The blocks are then sent over the communication link to the remote site.

The timing needed for synchronous connections is obtained from the devices located on the communication link. All devices on the synchronous link must be set to the same clocking.

The following is a list of characteristics specific to synchronous communication:

  • There are no gaps between characters being transmitted.
  • Timing is supplied by modems or other devices at each end of the connection.
  • Special syn characters precede the data being transmitted.
  • The syn characters are used between blocks of data for timing purposes.

Due to there being no start and stop bits the data transfer rate is quicker although more errors will occur, as the clocks will eventually get out of sync, and the receiving device would have the wrong time that had been agreed in the protocol for sending/receiving data, so some bytes could become corrupted (by losing bits).

Ways to get around this problem include re-synchronization of the clocks and use of check digits to ensure the bytes is correctly interpreted and received.

Most network protocols (such as Ethernet, SONET, Token Ring) use synchronous transmission.


>> What is Asynchronous Transmission

In contrast, asynchronous transmission works in spurts and must insert a start bit before each data character and a stop bit at its termination to inform the receiver where it begins and ends.

The term asynchronous is used to describe the process where transmitted data is encoded with start and stop bits, specifying the beginning and end of each character.

An example of synchronous transmission is shown in the following figure.

Figure 2. Asynchronous transmission


These additional bits provide the timing or synchronization for the connection by indicating when a complete character has been sent or received; thus, timing for each character begins with the start bit and ends with the stop bit.

When gaps appear between character transmissions, the asynchronous line is said to be in a mark state. A mark is a binary 1 (or negative voltage) that is sent during periods of inactivity on the line as shown in the following figure.

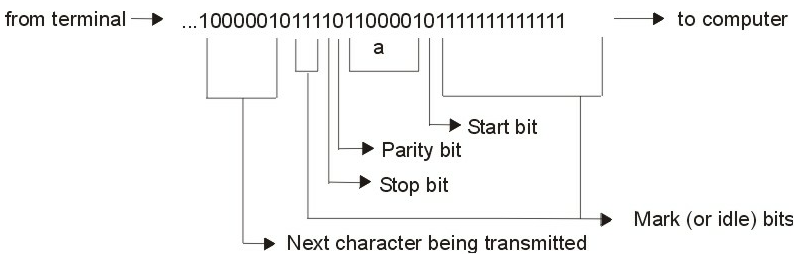

Figure 3. Mark (idle) bits in the data stream


When the mark state is interrupted by a positive voltage (a binary 0), the receiving system knows that data characters are going to follow. It is for this reason that the start bit, which precedes the data character, is always a space bit (binary 0) and that the stop bit, which signals the end of a character, is always a mark bit (binary 1).

The following is a list of characteristics specific to asynchronous communication:

  • Each character is preceded by a start bit and followed by one or more stop bits.
  • Gaps or spaces between characters may exist.

With asynchronous transmission, a large text document is organized into long strings of letters (or characters) that make up the words within the sentences and paragraphs. These characters are sent over the communication link one at a time and reassembled at the remote location.

In asynchronous transmission, ASCII character would actually be transmitted using 10 bits. For example, "0100 0001" would become "1 0100 0001 0". The extra one (or zero, depending on parity bit) at the start and end of the transmission tells the receiver first that a character is coming and secondly that the character has ended. This method of transmission is used when data are sent intermittently as opposed to in a solid stream. In the previous example the start and stop bits are in bold.

The start and stop bits must be of opposite polarity. This allows the receiver to recognize when the second packet of information is being sent.

Asynchronous transmission is used commonly for communications over telephone lines.
