10G rate three slot (SFP+ & XFP) managed converter (transponder) w/ optical protection channel and tunable XFP support. No casing - card only.
FRM220-10G-SXX - 10G rate three slot (SFP+ & XFP) managed converter (transponder) w/ optical protection channel and tunable XFP support. No casing - card only

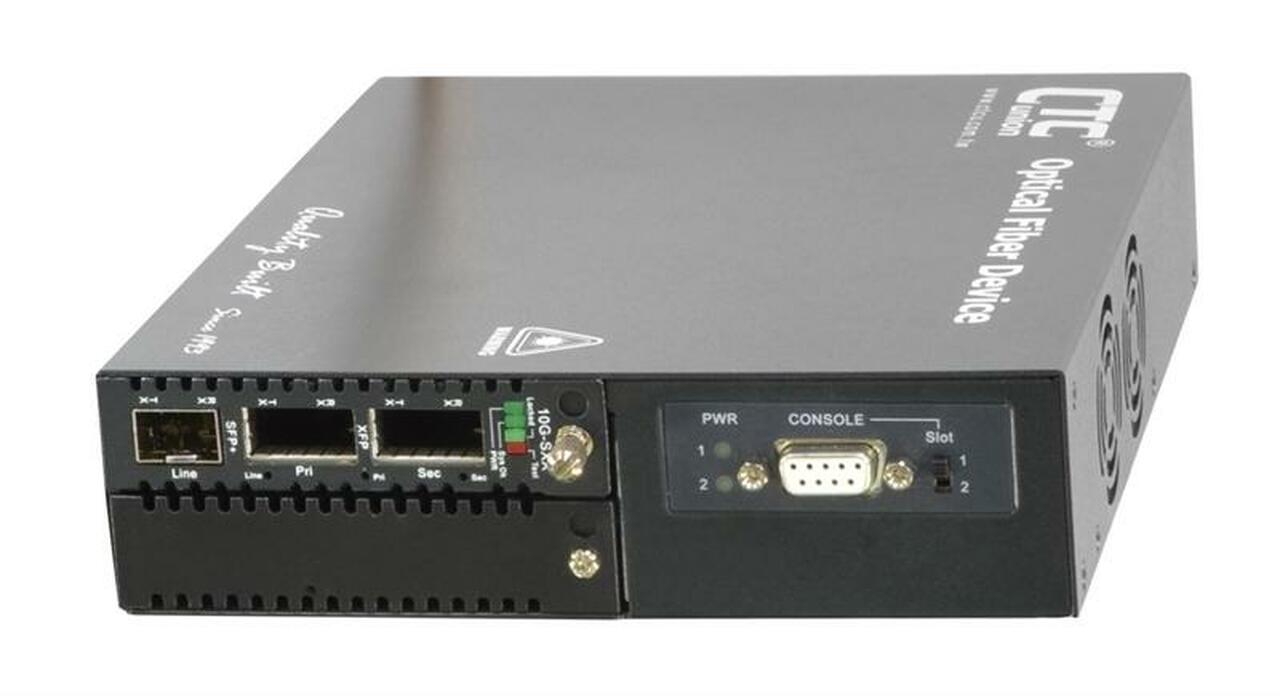

Note: The FRM220-10G-SXX converter INCLUDES a 2 slot FRM220-CH02M-AC casing. The case does include a local serial RS-232 DB9 console port for standalone management and AC 90-240V embedded power supply.
Product description

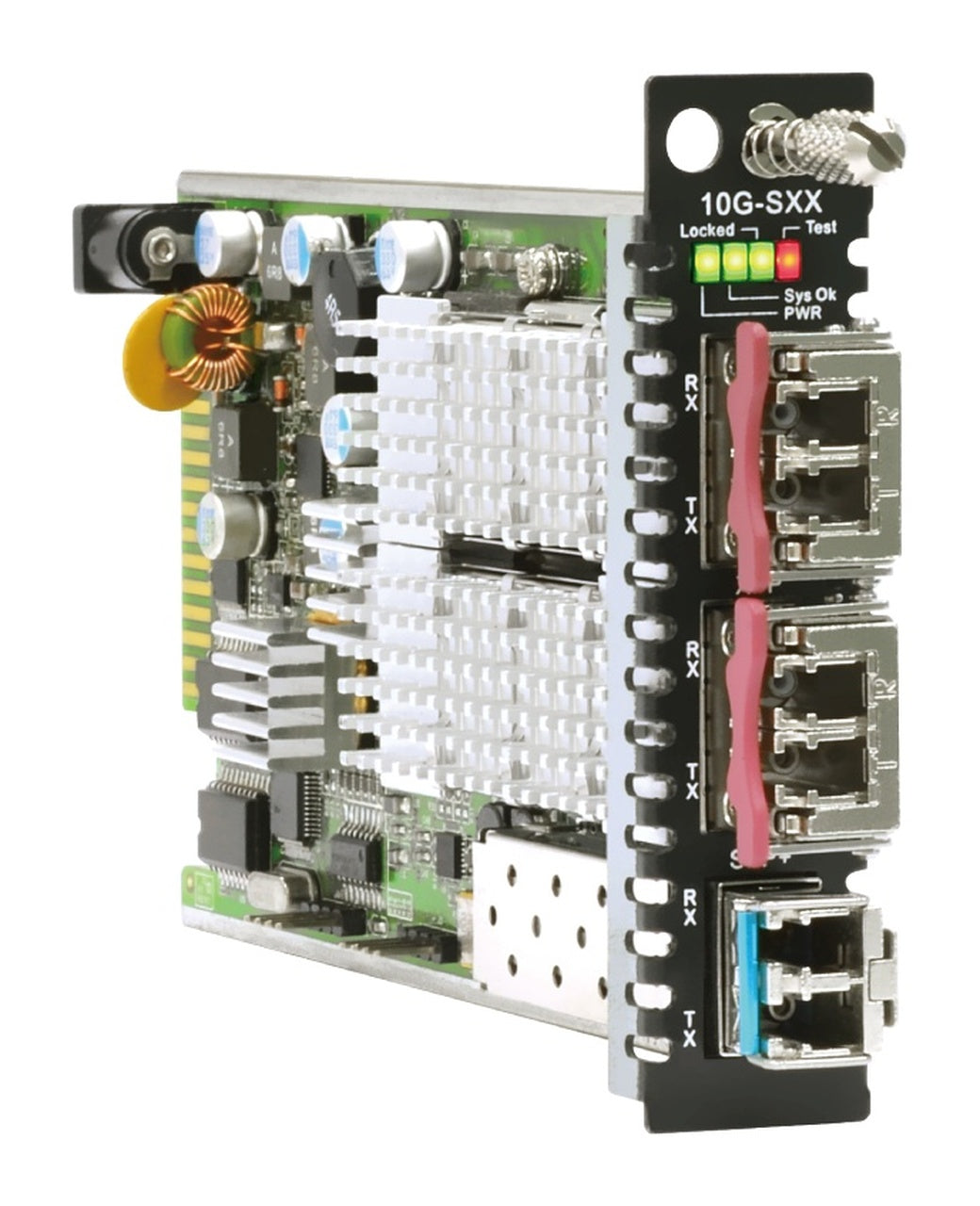

The latest FRM220-10G-SXX transponder card is an extremely versatile all-optical fiber media converter equipped with one SFP+ and two XFP 10G rate slots.
Any 10GBase transceiver (multi-mode or single-mode) or DWDM/CWDM SFP+ or XFP module can be installed in each slot of FRM220-10G-SXX transponder card.
Any of the optical ports can be set for redundancy optical protection, thus the card can be used as XFP to XFP or XFP to SFP+ optical conversion.
Also copper direct attach cables (DAC's) are supported by the FRM220-10G-SXX transponder.
Unit supports web-based, in-band management telnet, SNMP or console management when installed in the FRM220-CH20 OR FRM220-CH08 chassis or in the small standalone casing of FRM220-CH02M that provides a separate console port.
The transponder card supports multi-protocol 10G data rates including 10G Ethernet, STM-64, SONET OC192 or 10G Fibre Channel.
The FRM220-10G-SXX supports tunable XFP transceivers, like the XFP-1080-DTZR. By accessing the management of the FRM220-10G-SXX transponder, user can set up the operating wavelength for the tunable laser.
The FRM220-10G-SXX all-optical 10G converter is extremely versatile. You can have the transponder installed in the small FRM220-CH02M casing with choice of AC, DC(-48V) or AC+DC power supply or on the 8 or 20 slot FRM220 chassis with 2U and 19" rack mountable size, in matter of minutes.
In an always changing and growing networking environment, such a versatile model allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters.
The FRM220-10G-SXX 10G rate media converter is one of the best choices for data carriers and service providers.
Product Installation Manual
Technical specifications
| Interfaces: | One SFP+ and two XFP slots supporting 10G Ethernet, OC-192, STM-64, 10G FC (10.51875G), OTN G.709 or OTU2 (10.709225G) data rates |
| Connectors: | SFP+/XFP slots with LC optical connectors10G Base-SR, LRM, LR, ER, ZR, CWDM or DWDM or DAC copper and active optical cables |
| Front LEDs: | PWR,Line Link, Client Link, Test, Loopback, Alarm, Active port |
| Power: | Internal 90-260V AC power supply with NEMA1-15(2 blades only), US type main plug or DC -48V with IEC 3 screw block connector |
| Temperature: | 0 - 50°C (Operating); 0 - 70°C (Storage) |
| Humidity: | 10 - 90% non-condensing |
| Consumption: | less than 10W |
| Dimensions(WxDxH): | 155mm x 88mm x 23mm without power casing |
| Weight: | 150g (card only) |
| Compliance: | CE, FCC, LVD, RoHS |
| MTBF: | 65,000 hours |
