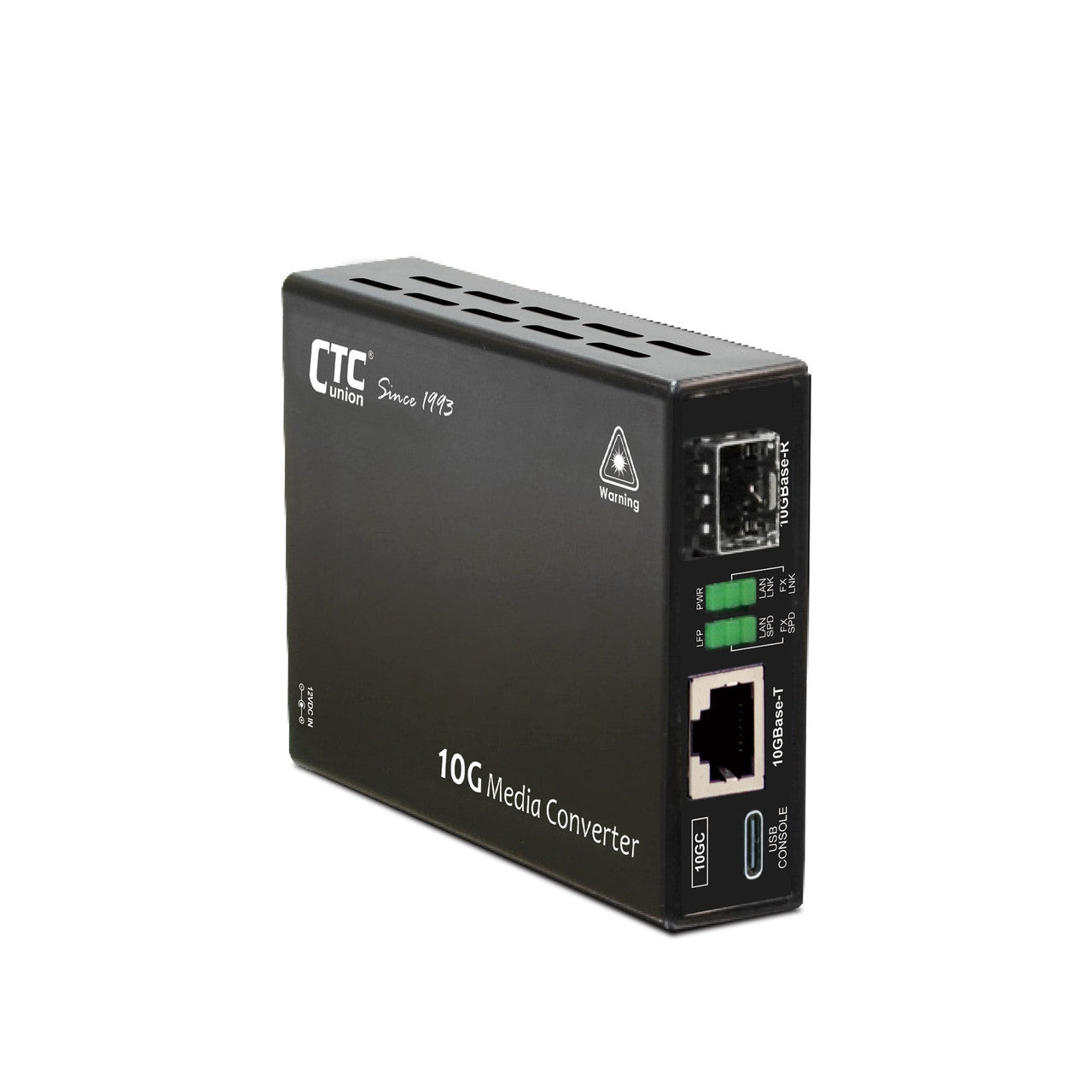

XMC-10GC 10G/5G/2.5G/1G/100M Copper to 10GBASE-R SFP+ Media Converter, USB managed
The XMC-10GC fiber media converter is an extremely versatile fiber media converter equipped with one 10G/5G/2.5G/1G/100M Ethernet copper port (RJ45 Cat6a or Cat 7 twisted pair cabling, backwards compatible with 1000Base-T Gigabit Ethernet and 100Base-TX Fast Ethernet copper ports) and one 10G-Base-R SFP+ slot for 10G fiber Ethernet uplink.
Any 10GBase transceiver (multi-mode or single-mode) or DWDM/CWDM SFP+ module can be installed in the SFP+ slot of XMC-10GC converter. Also copper direct attach cables (DAC's) are supported by the XMC-10GC converter.
Unit supports management through an USB-C separate console port. The media converter supports copper port speed auto-negotiation Ethernet 10G/5G/2.5G/1G/100M TP connections.
Technical specifications
| Interfaces: | One SFP+ slot supporting 10G Ethernet data rate 10G-Base-R and one RJ45 10G/5G/2.5G/1G/100M auto-negotiating (Cat6a/Cat7) twisted pair cable port. RJ45 port supports Gigabit 100Base-T and Fast Ethernet 100Base-TX connections |
| Connectors: | SFP+ slot with LC optical connectors, supporting SR, LR, ER, ZR, CWDM or DWDM optics as well as DAC copper and optical cables and RJ45 copper port |
| Front LEDs: | PWR, LAN Link, FX Link, LAN Speed, FX Speed, FLP |
| Power: | separate 90-240V AC power supply adapter |
| Temperature: | 0~45°C (Operating); -10~70°C (Storage) |
| Humidity: | 5~95% non-condensing |
| Consumption: | less than 10W |
| Dimensions(WxDxH): | 96.5mm x 73.4mm x 23mm |
| Weight: | 280g |
| Compliance: | CE, FCC, LVD, RoHS |
| MTBF: | 65,000 hours |
Additional information on XMC-10GC converter:
PDF Datasheet; PDF Installation Manual.
