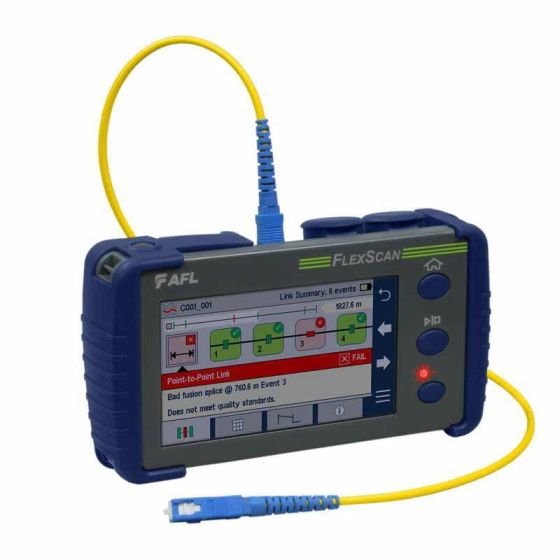

The AFL FlexScan FS200-100 Single-mode OTDR is a pocket-sized, high-performance solution designed for identifying, locating, and resolving optical network issues. This all-in-one tool is suitable for both novice and expert technicians working in environments ranging from FTTH PON to point-to-point networks.

Product Features

• Rapid Testing: Complete dual-wavelength tests in as low as 5 seconds using FleXpress mode.

• Intuitive Troubleshooting: LinkMap displays color-coded icons to show network health and provides clear pass/fail indications.

• Performance-Packed: Features SmartAuto multi-pulse acquisition and up to 39 dB dynamic range.

• All-in-One Integration: Includes an integrated optical power meter (OPM), optical light source (OLS), and visual fault locator (VFL).

• Rugged and Portable: Weighs less than one pound (0.4 kg) and fits in your pocket, with a large indoor/outdoor touchscreen.

• Seamless Connectivity: Results can be uploaded via Bluetooth, Wi-Fi, or USB for real-time reporting.

• Optical Port Saver: Includes a field-replaceable Port Saver to protect against connector damage.

Specifications

• Wavelengths: 1310 nm and 1550 nm.

• Dynamic Range: 39 dB at 1310 nm and 37 dB at 1550 nm.

• Dead Zones: Best-in-class event dead zone of 0.7 m and attenuation dead zone of 2.3 m.

• Range Settings: 250 m to 240 km.

• Display: 4.3-inch color touchscreen LCD, 480x272 backlit.

• Battery Life: Over 12 hours of operation.

Basic Kit Contents

• FlexScan FS200-100 Single-mode OTDR.

• Optical Port Saver (installed).

• AC charger and battery.

• Carry strap and medium soft case.

• SC/2.5 mm connector adapters.

• FlexReports Basic software.

• USB cable.
