Wall Mount Fiber Connector Housing – Black
Holds (12) CCH Adapter Panels / Modules

This classic wall-mount fiber connector housing is designed for high-density interconnect and cross-connect applications in enterprise network environments. It supports standard CCH connector panels or modules and provides a robust, space-efficient solution for fiber termination in telecommunications rooms and main cross-connect areas.

The enclosure features a rugged metal construction with a drop-down access door that creates a temporary work surface during installation and maintenance. Integrated jumper routing guides simplify fiber management and help maintain proper bend radius. An optional field-installable lock kit is available to provide additional security for the access door.

Download product spec sheet (PDF)

Specifications

• Capacity:

  • Holds (12) CCH connector panels or modules (not included)

  • Supports up to 144 fibers (depending on panel configuration)

• Construction:

  • Material: Metal housing

  • Color: Black

• Design Features:

  • Interconnect and cross-connect capability

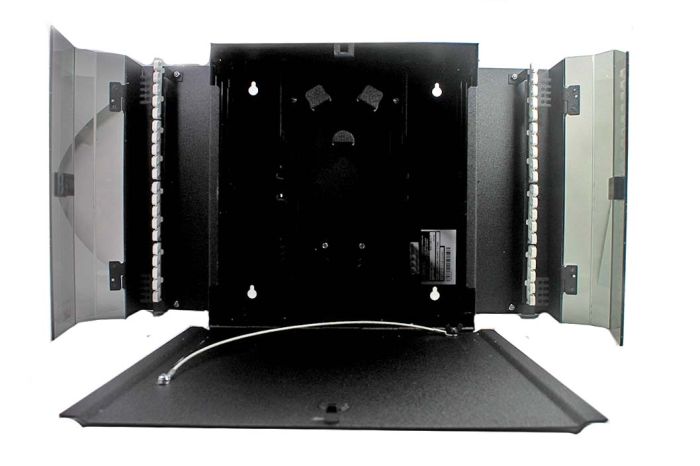

  • Drop-down access door for convenient installation and servicing

  • Integrated jumper routing guides for organized fiber management

  • Bracket for securing buffer tube fan-out kits

  • Optional field-installable lock kit for added security

  • Rugged, wall-mountable design

• Mounting:

  • Wall-mountable enclosure

  • Accepts standard CCH connector panels and modules

• Dimensions:

  • 13.5" H × 22.5" W × 5.125" D

• Application:

  • Enterprise networks

  • Telecommunications rooms and main cross-connects

• Notes:

  • Adapter panels and modules sold separately
