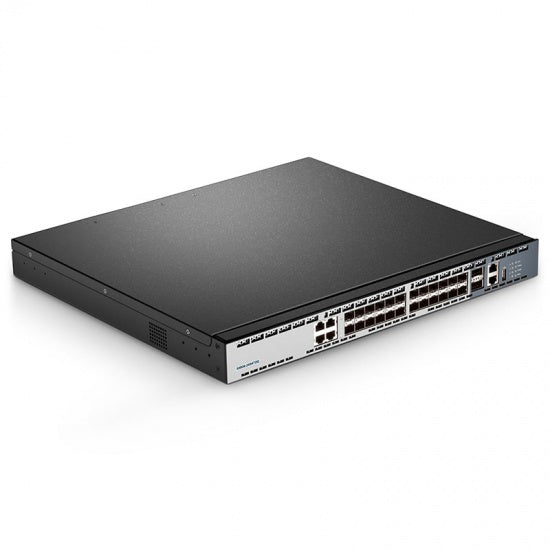

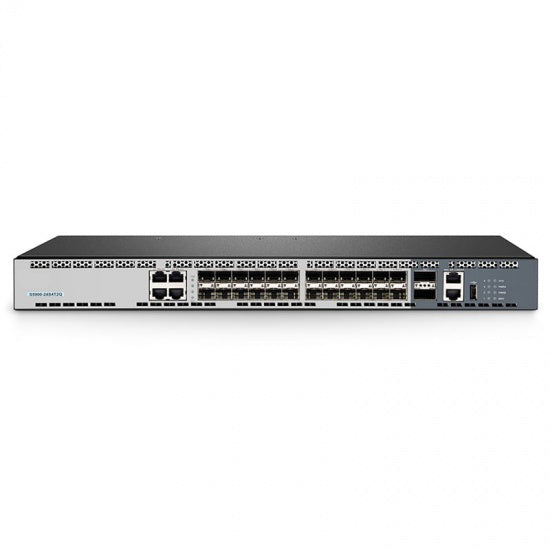

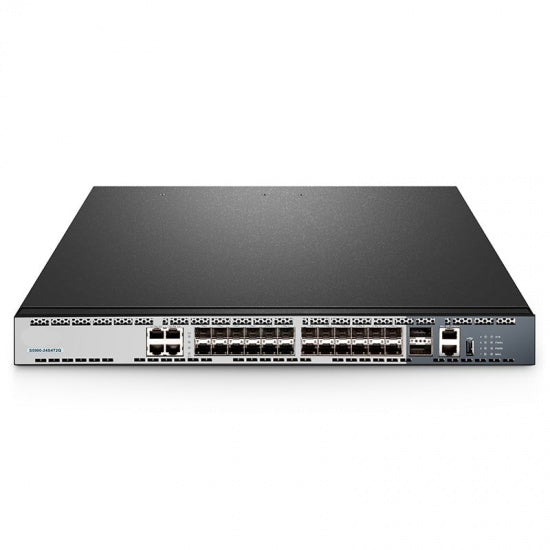

FS-S5900-24S4T2Q, 24-Port Ethernet L3 Switch, 24 x 10Gb SFP+, 4 x Gigabit RJ45, with 2 x 40Gb QSFP+ Uplinks, Stackable Switch, Broadcom Chip

FS-S5900-24S4T2Q is a high-performance Layer 3 Ethernet switch with 24x 10Gb SFP+, 4x 10/100/1000BASE-T RJ45 and 2x 40Gb QSFP+ in a compact 1U form factor.

The switch provides high-performance L2/L3/L4 wire speed switching capacity by integrating services such as IPv6, network security, flow analysis, virtualization.

With high reliable techniques including continuous forwarding, graceful restarting and loop network protection, the work efficiency of S5900-24S4T2Q and its maximum running time are guaranteed.

With a unique combination of advanced features, flexible deployment options and rich automation features, the switch is ideal for high-performance computing, data center and high-end campuses.

Specifications

• Ports: 24x 1G/10G SFP+, 4x 10/100/1000BASE-T RJ45 | 2x 40G QSFP+

• Stacking: Support

• Switching Capacity: 640 Gbps

• Total Number Of IPv4/IPv6 Routes: 16,000

• Forwarding Rate: 480 Mpps

• Number of VLANs: 4,094

• SDRAM: 2GB

• MAC Address: 128,000

• Flash Memory: 32MB

• Jumbo Frame: 96,00

• MTBF: >100,000 Hours

• ARP Table: 16,000

• Hot-swappable Power Supplies: 1+1 Redundancy (100-240VAC)

• Management: WEB, CLI, SNMP V1/V2/V3, SSH, RMON, SFLOW, USB

• Airflow: Front-to-Back

• Warranty: 5 Years
• Flexible 10/100/1000M/10G/40G Interface Speeds, All 10G/40G Ports Support Stacking

• Broadcom BCM56842 Switch Chip

• Hot-Swappable 1+1 Power Supplies and 4+1 Smart Fans

• IPv4/IPv6 Dual-Stack Technology

• Support RIPng/OSPFv3/BGP4+/DHCPv6

• Support ACL, AAA, RADIUS, TACACS+, etc

• Support CLI/WEB/SNMP/SSH

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Connectivity Solutions

Stack for Redundancy

High Availability and Power Efficient

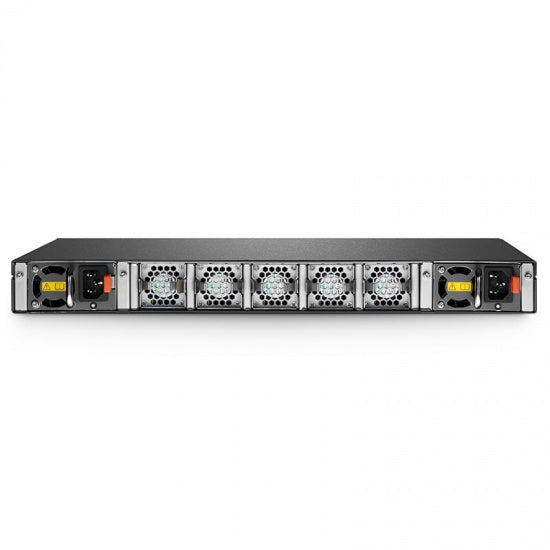

The S5900-24S4T2Q Switch supports and ships with dual 1+1 redundant power supplies, 4+1 fans for front-to-back airflow and it can operate with up to one individual fan failure.

Monitor and Troubleshoot Your Networks
Now you can manage your FSOS switches with varied management interfaces, which supports SNMP v1/v2/v3, CLI, web management, Telnet and TFTP connection, OAM, SSH, SSL and RMON, etc, for monitoring and optimizing your devices.

Use Zabbix to Monitor FS Switch via SNMP
/specials/network-unified-monitoring-solution-127.html&Learn more

10G Data Center TOR Switch with 40G Uplinks
Featuring up to 24 wire-speed 10G SFP+ ports, 4 wire-speed 10/100/1000BASE-T RJ45 ports and 2 wire-speed 40G QSFP+ ports in a 1U platform, the S5900-24S4T2Q Ethernet Switch delivers 640 Gbps of Layer 2 and Layer 3 connectivity to networked devices such as secure routers, servers, and other switches.
