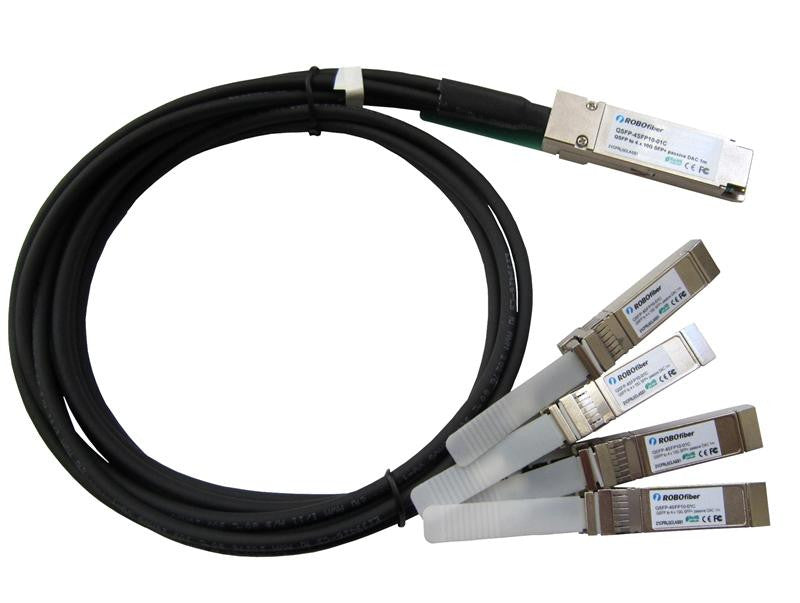

QSFP-4SFP10-01C QSFP+ 40G to 4 SFP+ 10G quad fan-out passive copper DAC direct attach cable 1m length

Mooseline Part No.: QSFP-4SFP10-01C

  • $ 222.00 or

Product description

The QSFP-4SFP10-01C is a 1m long passive fan-out copper direct attach cable with one QSFP+ connector and four SFP+ 10G connectors.
Cable provides short distance (same shelf) inexpensive connectivity at up to 40G rates. It operates 4 independent 10G channels using the QSFP
connector footprint on one end and 4 independent SFP+ transceivers of 10Gbps each. Each of the four channels can operate at multi-rate speeds Gigabit to 10G (1 Gbps to 10.3125Gbps).
Cable has been tested and found compatible with most major brand networking vendors (including Cisco, Juniper and Edge-Core TOR switches).

The 40G Direct Attach cables can be used in a wide variety of applications such as:
  • High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers
  • Switched fabric I/O such as ultra high bandwidth switches and routers 10G/40G Ethernet
  • Data center cabling infrastructure
  • High density connections between networking equipment

QSFP-4SFP10-01C 40G direct attach copper cable specifications
Connectors one QSFP+ 38pin footprint and four SFP+ 20 pin footprint
Cable length 1m
Connect speed multi-speed up to 40Gbps (Gigabit compatible)
Cable type 4 pair twinax
Operation passive
