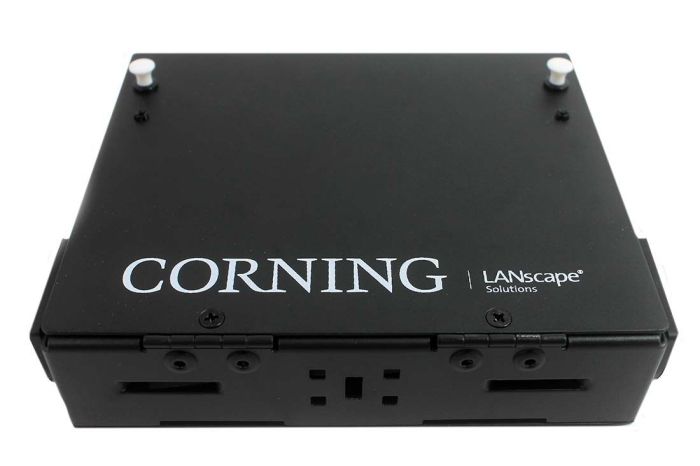

Wall Mount Fiber Enclosure – Black
Holds (1) CCH Adapter Panel, Up to 6 Fibers

This compact wall-mount fiber enclosure is designed for storage, protection, and termination of optical fiber cables in indoor environments where mounting space is limited. It accepts one standard CCH connector panel and provides integrated splice, cable, and fiber management for clean and reliable installations.

The enclosure features a durable black metal housing with a low-profile 1.5-inch frontal projection, making it well suited for box-in-a-box applications, building entrances, wiring closets, open office areas, and other space-constrained locations. A built-in splice tray with routing guides supports both splice protection and future moves, adds, and changes. The housing can be stacked up to three units high, allowing capacity expansion without requiring additional wall space. Multiple mounting orientations are supported, including optional DIN rail mounting for use inside control cabinets.

Download product spec sheet (PDF)

Specifications

• Capacity:

  • Holds (1) CCH connector panel (not included)

  • Supports up to 6 fiber connections

  • Accommodates up to (12) single-fiber heat-shrink splices or (6) ribbon heat-shrink splices

• Construction:

  • Material: Metal housing

  • Finish: Black powder coat

• Design Features:

  • Compact indoor wall-mount enclosure

  • Stackable design (up to 3 units) for capacity growth

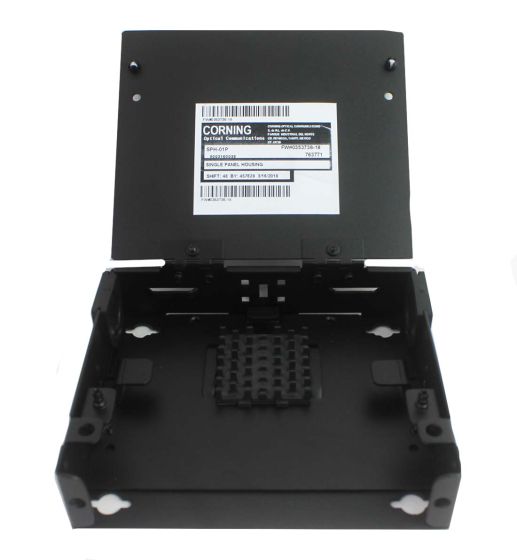

  • Built-in splice tray with fiber routing guides

  • Integrated cable and fiber management

  • Supports splice management, cross-connect, or both

  • DIN rail mountable with optional DIN rail kit

• Dimensions:

  • 6.3" H × 5.5" W × 2.0" D

• Application:

  • Indoor enterprise network environments

  • Building entrances, wiring closets, terminals, and control cabinets

• Notes:

  • Adapter panel sold separately
