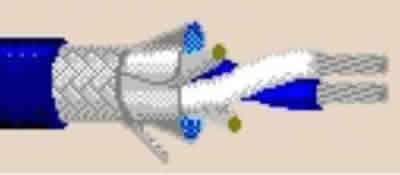

Twinax - DataTray 600V Twinaxial Cable 18 AWG FS PR FRPP SH PVC Blue, Cairo
| Attributes | |
|---|---|
| Coax Type: | TWINAXIAL |
| Impedance: | 78 OHM NOMINAL IMPEDANCE |
| Plenum: | GENERAL PURPOSE (CM, CMG, CMX) |
| Conductor: AWG | 18 GAUGE AWG |
| CONDUCTOR: Type | STRANDED CONDUCTOR |
| Material | TINNED COPPER |
| DIELECTRIC: Material | FPO-FOAMED POLYOLEFIN |
| Braid % | 55% BRAID COVERAGE |
| Braid Matl | TINNED COPPER |
| SCREEN/SHIELD: Type | BOTH, BRAID OVER FOIL |
| JACKETING: Material | PVC-POLYVINYLCHLORIDE, PVC-1 |
| Outdoor | NO NOT OUTDOOR GRADE MATERIAL |
| Flooded | NO NOT FLOODED OVER BRAID |
| SPEC/STND: NEC | NEC GENERAL USE |
| CSA | FLAME RATED FOR GENERAL USE |
| RoHS Compliant: | YES |
| Coax Construction: | TWINAXIAL |
| CONDUCTOR: Diameter | 0.046 INCHES |
| _NEC Rating | CM |
| Conductors | 1 Pr Stranded TC |
| Jacket Color | Blue |
| Jacket Material | PVC |
| Rating | CMR/CMG |
| Shield | Foil + 55% TC Braid |
| Shield & Material | Foil + 55% TC Braid |
| RG Type | Twinax |
| Conductor Stranding/Dia. AWG & Type | 7/0.046/18/TC |
| Approx. Wt. lb./1,000 ft. | 69 |
| Weight lb./1,000 ft. | 69 |
| Nom. Core O.D. (in.) | 0.192 |
| Imped. Ohms | 78 |
| Nom. Capacitance (pF/ft.) | 19.5 |
| Nom. O.D. (in.) | 0.324 |
