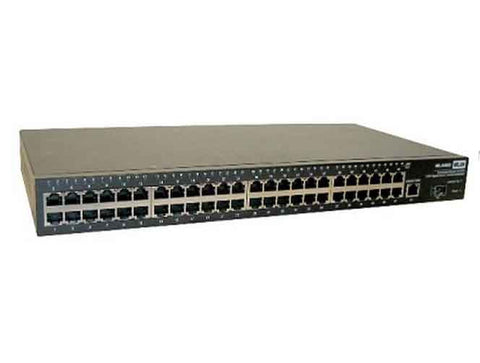

48-port 10/100BASE-TX switch
Specifications:
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z Gigabit Fiber IEEE 802.3x Flow control and Back Pressure |
| Connector | 100BASE-T: 48 x RJ-45 Gigabit copper: 1 x RJ-45 SFP: 1 x SFP socket |
| Switch Architecture | Store and forward switch architecture. Back-plane up to 20Gbps |
| Address Support | 8K MAC address table with auto learning function |
| Packet Buffer | 6Mbits |
| System LEDs | System power (Green) 10/100TX port: Link/Activity (Green) Gigabit copper port: Link/Activity (Green), Speed (Yellow) SFP: Link/Activity (Green) |
| Power | AC 100~240V, 50/60Hz, 0.26A |
| Power Consumption | 22 Watts (Maximum) |
| Ventilation | 1 Fan |
| Operating Temperature | 0 to 45°C ( 32°F to 113°F ) |
| Storage Temperature | -40°C to 70°C ( -40°F to 158°F ) |
| Operating humidity | 5% to 95% ( non-condensing) |
| Storage humidity | 95% |
| Dimensions |
Width:17.32" [440 mm] Depth:8.86" [225 mm] Height:1.75" [44 mm] |
| Chassis | Metal |
| EMI | FCC Class A, CE |
| Safety | UL, cUL, CE/EN60950 |
