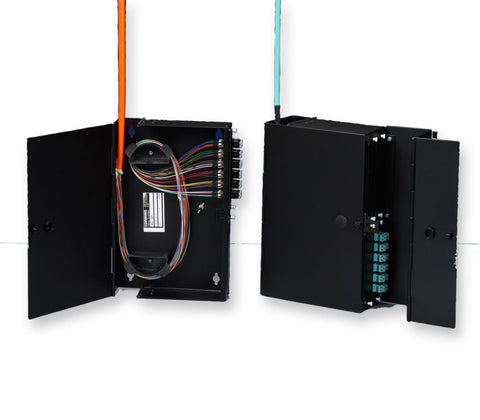

Wall-Mountable Interconnect Center (WIC), holds 4 CCH connector panels
General Specifications
| Application | Enterprise Networks |
|---|---|
| Mounting Type | Wall-Mountable |
| Product Type | Wall-Mountable Hardware |
Design - Hardware
| Housing Color | Black |
|---|---|
| Housing Type | WIC |
| Locking Availability | Provider door |
| Maximum number of Panels per Housing | 4 |
| Panel or Module Type | CCH |
| Splice Tray Options | Up to (8) 0.2-in or (4) 0.4-in reduced-length splice trays |
Mechanical Characteristics
| Dimensions (HxWxD) | 33 cm x 21.6 cm x 10.4 cm (13 in x 3.5 in x 4.1 in) |
|---|
Chemical Characteristics
| RoHS | Free of hazardous substances according to RoHS 2002/95/EG |
|---|
Shipping Information
| Units per Delivery | 1/1 |
|---|---|
| Package Contents | Housing; blank panel; instruction sheet; central member strain-relief clamp kit; 6 tie wraps, 1/8 x 4, white; neoprene edge grommeting, 9-in |
| Shipping Weight | 2.7 kg (6 lb ) |
