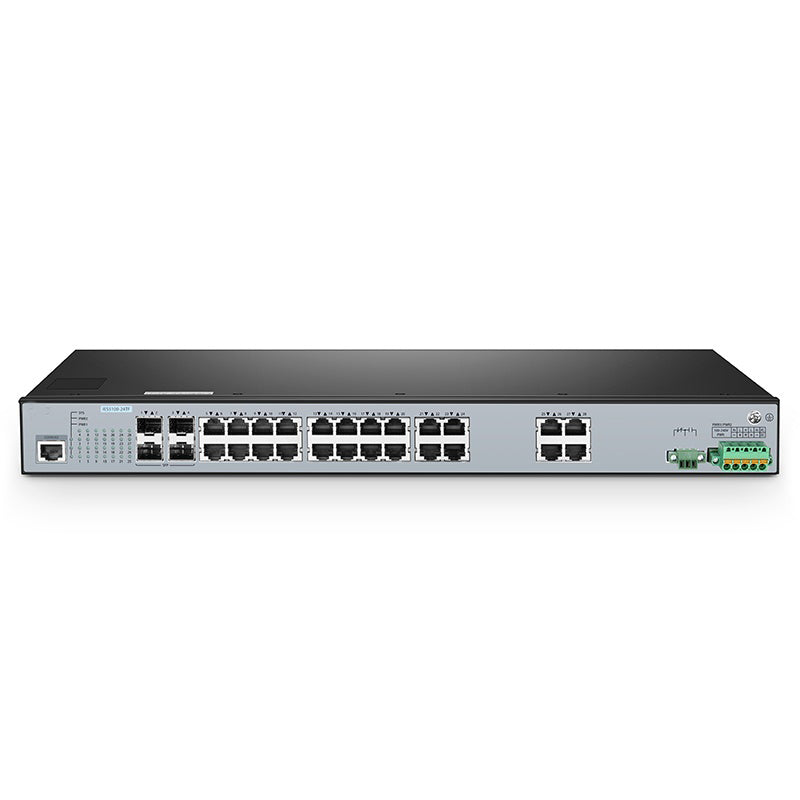

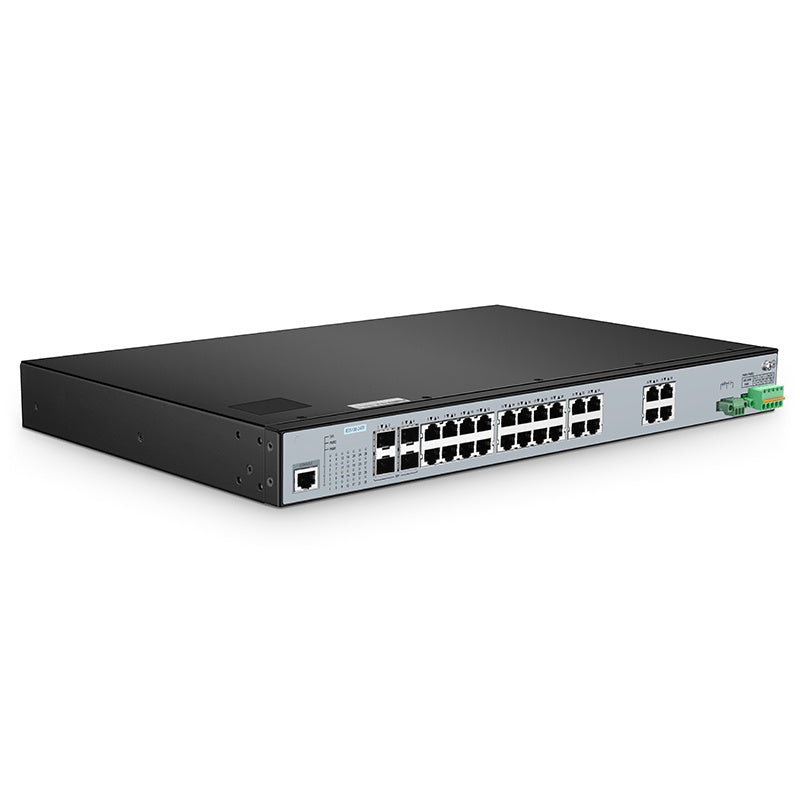

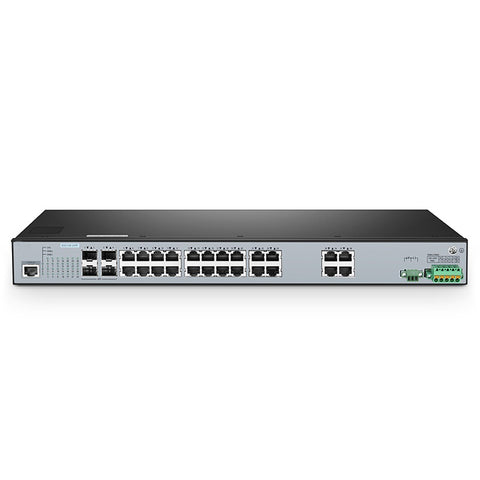

FS-IES5100-24TF, 24-Port Gigabit Ethernet L2+ Managed Industrial Switch, 24 x 10/100/1000BASE-T, with 4 x 1Gb SFP, -40 to 85°C Operating Temperature

The FS-IE5100-24TF features 24x 10/100/1000BASE-T copper ports, 4x 100/1000BASE-X SFP ports in a 1U case, which is designed especially for a broad spectrum of industrial and extended enterprise connectivity needs. Equipped with an IP40 rated metal enclosure and fanless design, it can operate within a wide temperature range of -40 to 85°C (-40 to 185°F).

This switch is ideal for harsh environments, and can be widely used in energy, transportation, industrial production, environmental protection, and industrial industry. This layer 2+ industrial managed switch supports enhanced L3 routing functions RIP, OSPF and VRRP, which can facilitate the deployment of applications across networks, making them ideal for medium or large-scale industrial aggregation networks.

Specifications

• Ports: 24x 10/100/1000Base-T RJ45 | 4x 100/1000Base-X SFP

• MAC Address: 16K

• Switching Capacity: 56Gbps

• Input Voltage: 100-240VAC/VDC

• Forwarding Rate: 41Mpps

• Max. Power Consumption: 35W

• Flash Memory: 16MB (NOR)

• Operating Temperature: -40 to 85°C (-40 to 185°F)

• Jumbo Frame: 9,000

• Storage Temperature: -40 to 85°C (-40 to 185°F)

• Packet Buffer: 12Mbit

• Operating Humidity: 5-95% (non-condensing)

• Fan Number: Fanless

• Management: WEB GUI/SSH/Telnet/SNMP

• Enclosure: IP40 Rated Metal Enclosure

• MTBF: ≥ 400,000 Hours

• Installation: Rack Mount

• Dimensions (HxWxD): 1.73''x17.32''x11.02'' ( 44x440x280mm)

Product Highlights

• IP40 Metal Enclosure for Harsh Environments and Temperatures from -40 to 85°C

• Supports Both High-voltage AC and Low-voltage DC Inputs

• Rack Mount for Installation

• Support Layer 3 Routing RIP/OSPF/VRRP

• Support CLI/WEB/SSH/Telnet/SNMP for Easy Network Management
• Enclosure: IP40 Rated Metal Enclosure
• Packet Buffer: 12Mbit
• Jumbo Frame: 9,000
• Flash Memory: 16MB (NOR)


Software Spotlights

High Availability and Multi-Service Support

• Support the Spanning Tree Protocols (IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP)
• Support the IPv4 and IPv6 multicast functions
• Support traffic classification of each field of L2/L3/L4 protocol headers
• Support IGMP v1/v2/v3, IGMP snooping, MLD

Error-Free Network Configuration

• Support SNMP (Managed by Zabbix) v1, v2, and v3
• Support STP protocol protection (BPDU Guard)
• Support LACP, ERPS, etc
• Support multiple queuing algorithms such as SP, WRR or SP+WRR
• Support CAR traffic control
• Support 802.1P/DSCP priority remark
• Support Layer 3 Routing RIP/OSPF/VRRP

Connectivity Solutions

Full Gigabit Ethernet Interfaces

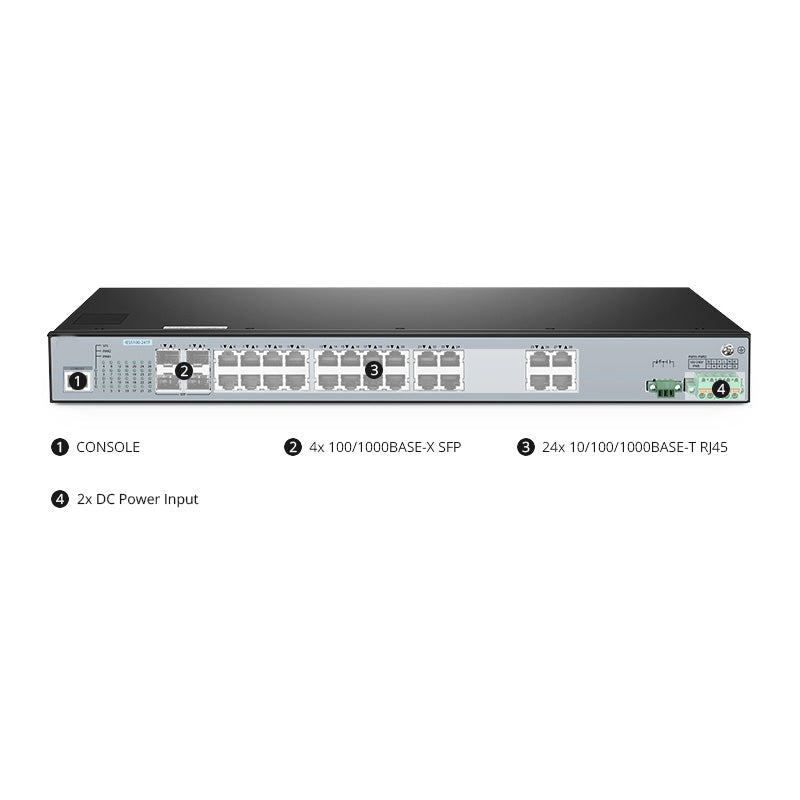

FS-IES5100-24TF is available with 24 x 10/100/1000BASE-T and 4 x 1Gb SFP ports and dual redundant power inputs to provide secure and flexible access for high-speed applications in the industrial space.

IP40 Aluminum Metal Housing Suitable for Industrial Environments
FS-IES5100-24TF is equipped with rugged IP40 metal enclosure to withstand a high degree of vibration and shock while operating in industrial environments from -40 to 85°C.

OSPF (Open Shortest Path First) Improves Network Stability
OSPF uses advanced routing algorithms and area-based design to dynamically update routes as the network changes, improving network stability and performance.

MRP (Media Redundancy Protocol) Ensures Industrial Networks Reliability
The MRP protocol eliminates ring network loops, prevents broadcast storms, and it restores network functionality within 20ms in case of link failure or disconnection.

Equipped with Console, Web and SNMP Management Interfaces
With the built-in Web-based management interface, the FS-IES5100-24TF offers an easy-to-use, platform-independent management and configuration facility.
