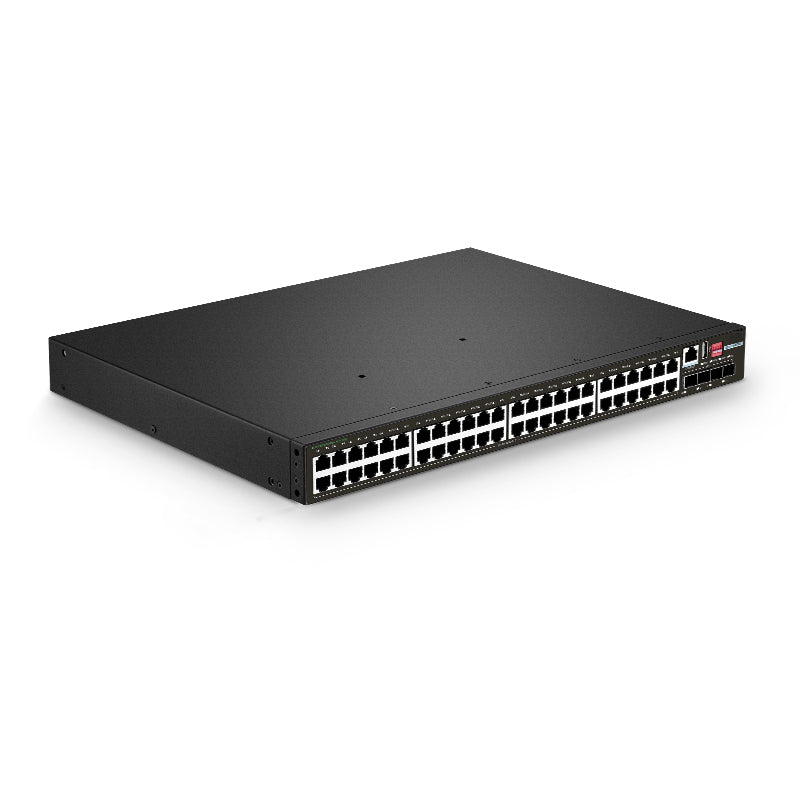

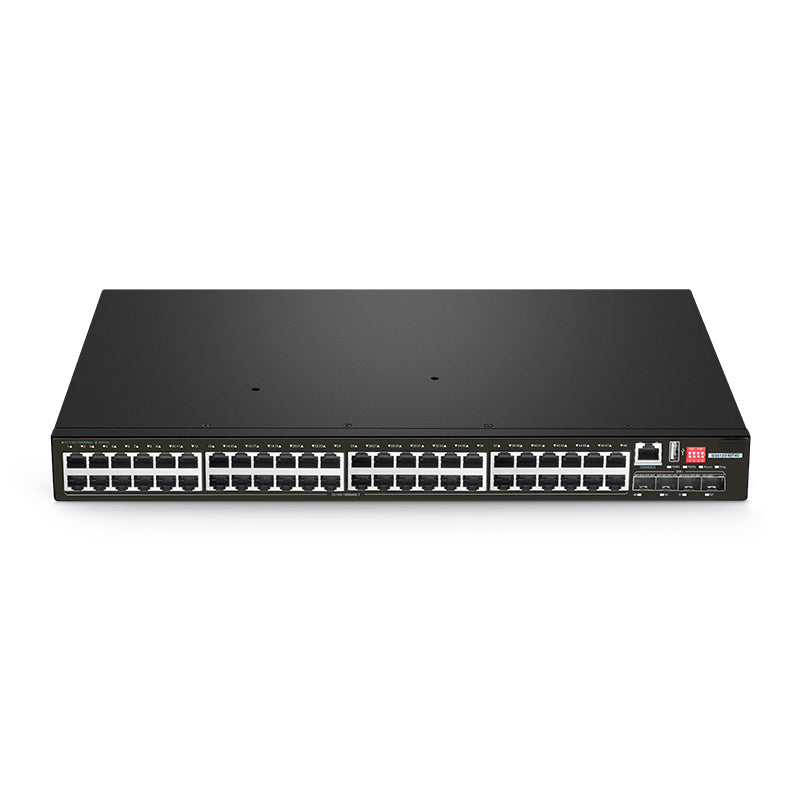

FS-IES5120-48T4S, 48-Port Gigabit Ethernet L2+ Managed Industrial Switch, 48 x 10/100/1000BASE-T, with 4 x 1/10Gb SFP+, -40 to 75°C Operating Temperature

The FS-IES5120-48T4S features 48 x 10/100/1000BASE-T copper ports, 4 x 1/10Gb SFP+ Ports in a 1U case, which is designed especially for a broad spectrum of industrial and extended enterprise connectivity needs. Equipped with an IP40 rated metal enclosure, it can operate within a wide temperature range of -40 to 75°C (-40 to 167°F).

This switch is ideal for harsh environments, and can be widely used in energy, transportation, industrial production, environmental protection, and industrial industry. This layer 2 industrial managed switch supports enhanced L2+ functions such as 802.1Q VLAN and port-based VLAN, QoS, IGMP snooping, LACP link aggregation, etc. can meet the requirements of many scenarios in industrial environments.

Specifications

• Ports: 48 x 10/100/1000BASE-T | 4 x 1/10Gb SFP+

• MAC Address: 16K

• Switching Capacity: 176Gbps

• Input Voltage: 100-240V AC

• Forwarding Rate: 130.952Mpps

• Max. Power Consumption: 44W

• Storage Temperature: -40 to 85°C (-40 to 185°F)

• Operating Temperature: -40 to 75°C (-40 to 167°F)

• Enclosure: IP40 Rated Metal Enclosure

• Operating Humidity: 5-95%(non‐condensing)

• Fan Number: Fanless

• Weight: ≤5kg

• Dimensions (HxWxD): 1.72''x17.32''x12.60'' (43.6x440x320mm)

• Installation: Rackmount

Software Spotlights

IPv4/IPv6 Dual-Stack

• Support IPv4/IPv6 static routing
• Support RIP/RIPng, OSPF
• Support VRRP
• Support BFD FOR VRRP
• Support BFD FOR IPV4
• Support BFD FOR IPv6

Multicast Efficiency

• Support IGMP v1/v2/v3
• Support IPv4 IGMP snooping
• Support IPv6 MLD snooping
• Support Multicast VLAN
• Support MVRP (Alternatives to GVRP/GARP)

Industrial Ethernet Protocols

• Support transparent transmission for PROFINET, EtherNet/IP and Modbus TCP
• Supports PTP Synce

ACL&QOS

• Supports packet filtering functions
• Supports flexible queuing scheduling algorithms

Error-Free Network Configuration

• Supports remote configuration via Telnet
• Supports configuration through a console port
• Supports SNMP
• Supports RMON for alarms, events and historical data
• Supports SDN/OpenFlow, compliant with the OpenFlow 1.3 standard
• Supports cloud-based management
• Supports web-based network management
• Supports system logging
• Supports hierarchical alarms
• Supports IRF2 stacking technology
• Supports NTP
• Supports power and temperature alarms
• Support NETCONF

Secure and Simplified Access

• Supports hierarchical user management and password protection
• Supports AAA authentication
• Supports Radius authentication
• Supports SSH 2.0
• Supports port isolation
• Supports port security features
• Supports MAC address authentication
• Supports HTTPS
• Supports PKI (Public Key Infrastructure).
• Supports attack source tracing for ARP packets.
• Supports IP Source Guard (including both IPv4 and IPv6)
• Supports DAI, protection against ARP attacks and DDoS
• Supports Secure Boot

Layer 2 Ring Protection Protocol

• Support STP/RSTP/MSTP
• Support STP root protection
• Support BPDU protection
• Supports G.8032 ERPS with a self-healing time of 30ms
• Supports RRPP with a self-healing time of 30ms
• Supports IEC 62439-2 MRP with a self-healing time of less than 20ms

Connectivity Solutions

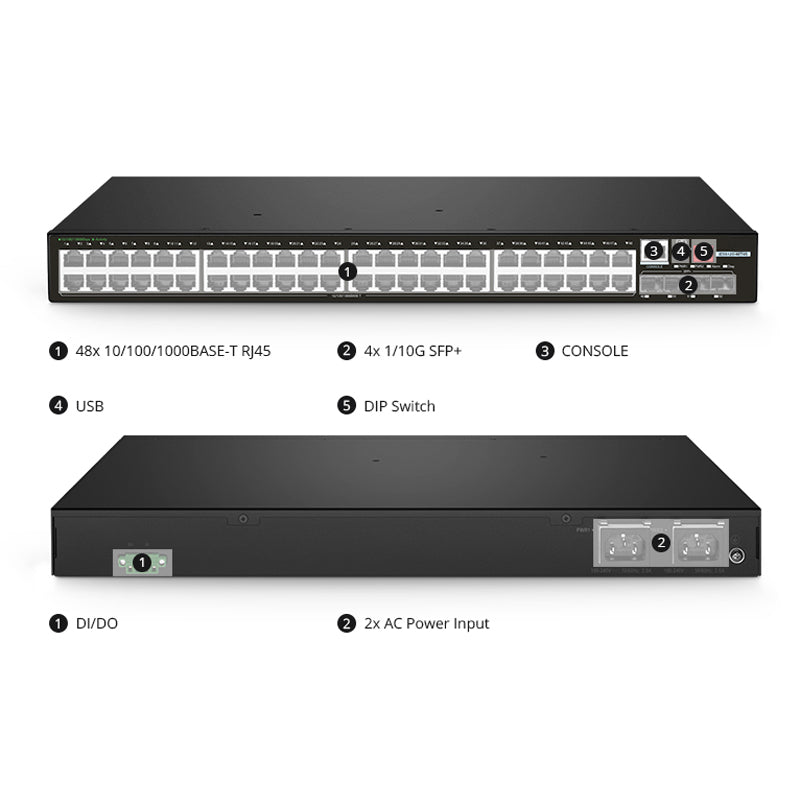

Full Gigabit Ethernet Interfaces
FS-IES5120-48T4S is available with 48 x 10/100/1000BASE-T and 4 x 1/10Gb SFP+ ports to provide secure access for high-speed applications in the industrial space.

IP40 Aluminum Metal Housing Suitable for Industrial Environments
FS-IES5120-48T4S is equipped with rugged IP40 metal enclosure to withstand a high degree of vibration and shock while operating in industrial environments from -40 to 75°C.
