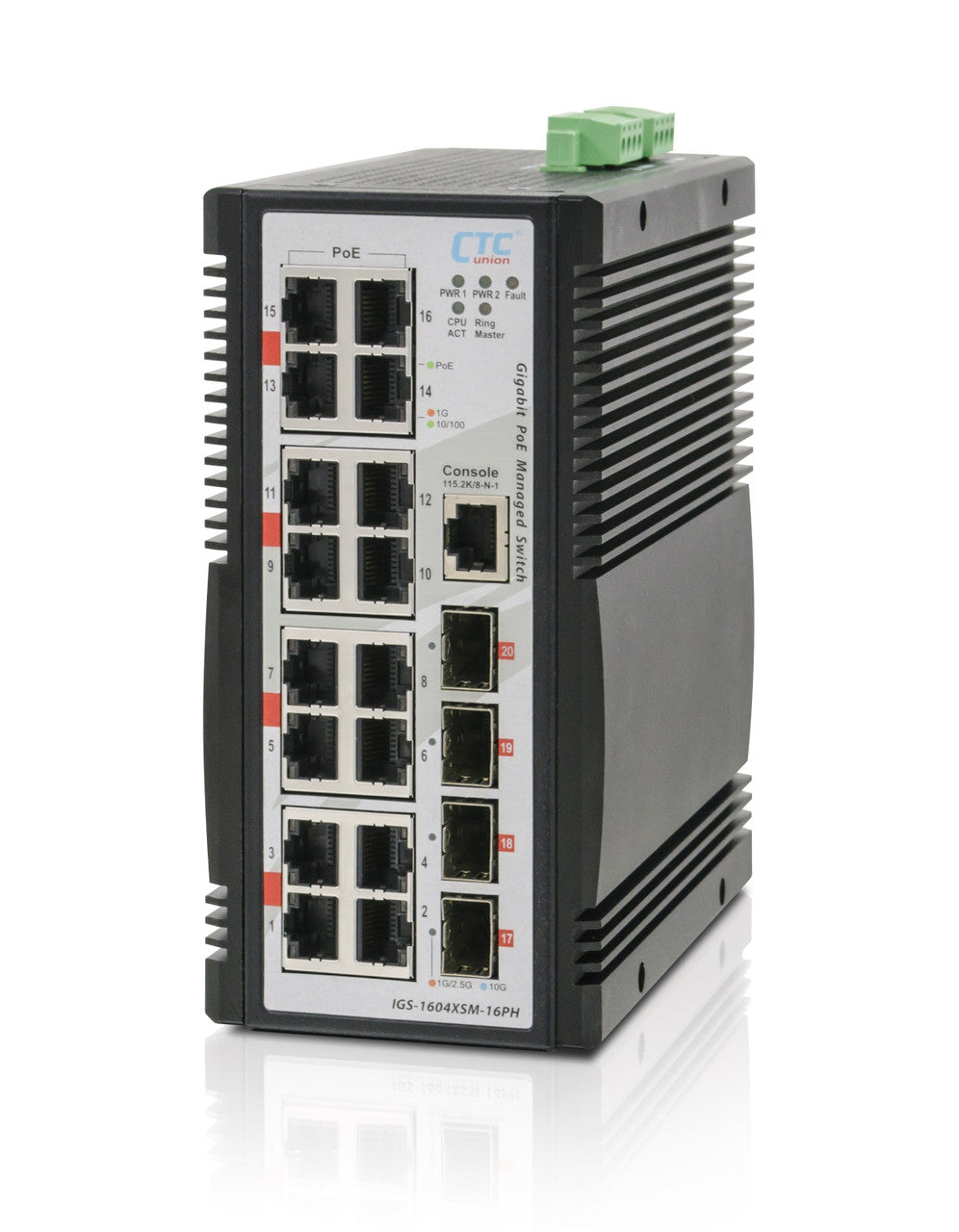

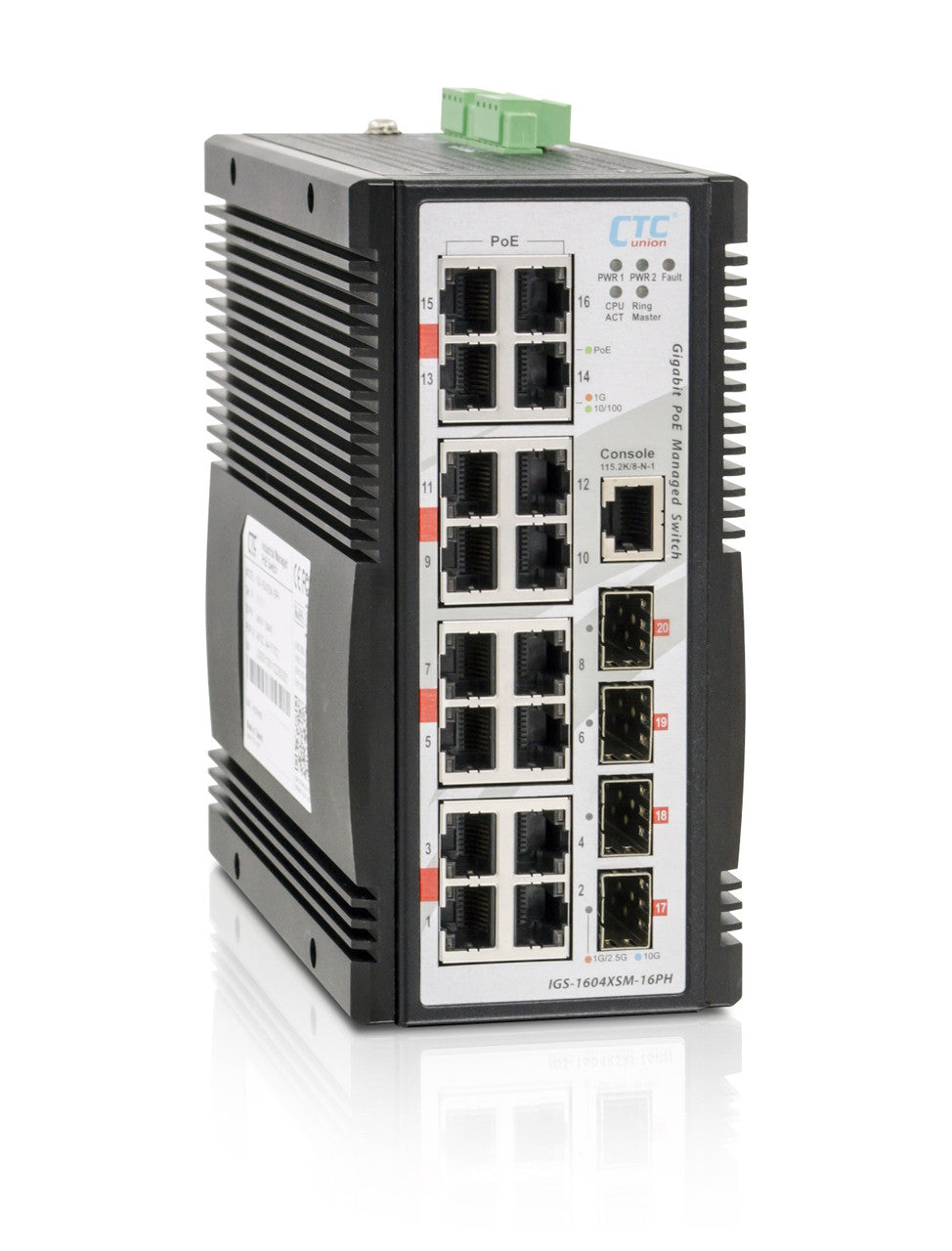

The IGR-1604XSM is a Layer 3 Industrial 16-port RJ45 Gigabit Ethernet routing switch with 4-port 10G/2.5G/1G SFP+ slots, for SFP pluggable transceivers.

Switch can be used to connect and feed various types of Ethernet PD devices, such as smoke sensors, Wi-Fi access points, femtocells, alarm centers or IP cameras.

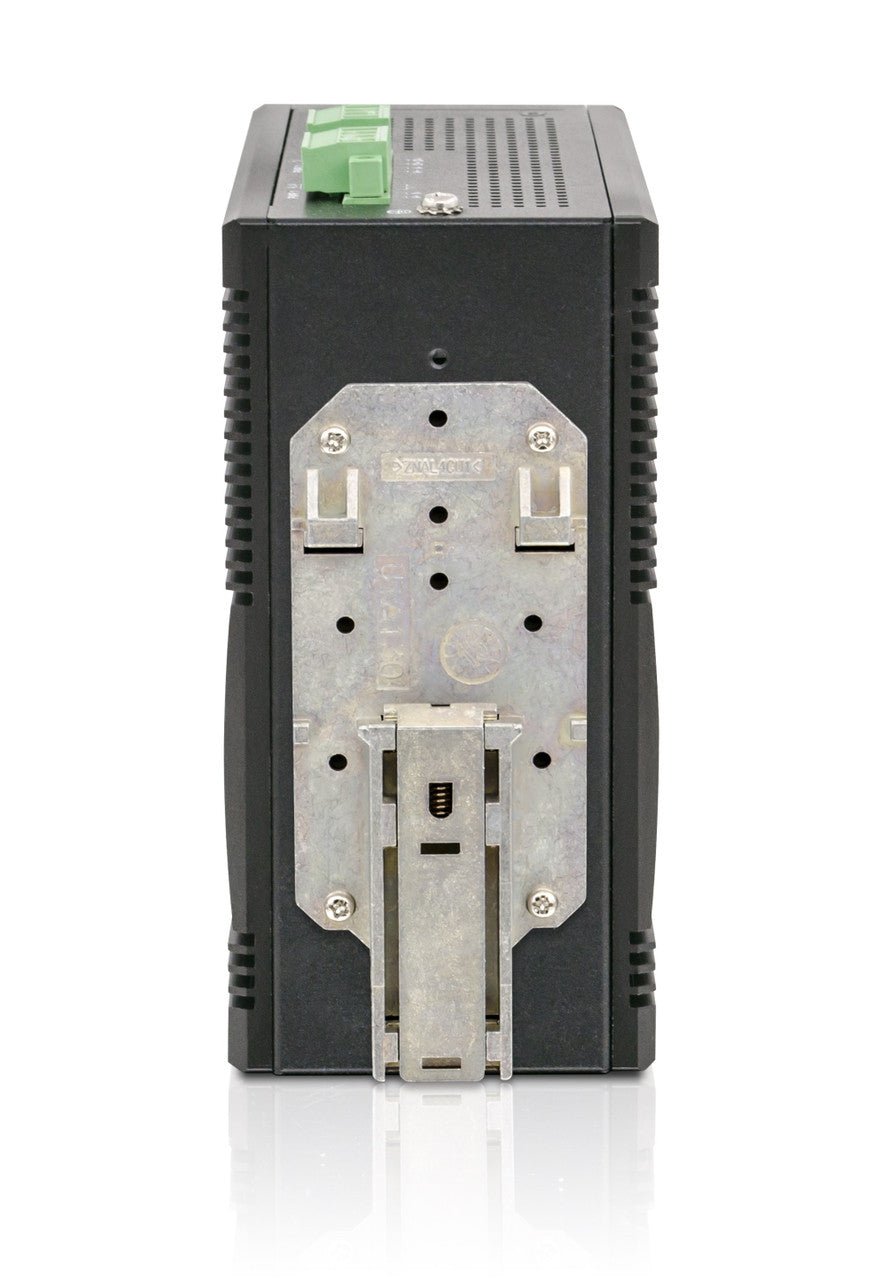

The din-rail and fan less 20-port switch has a hardened design for high surge protection, wide operating temperature and it is safety certified to meet critical requirements.

Features:

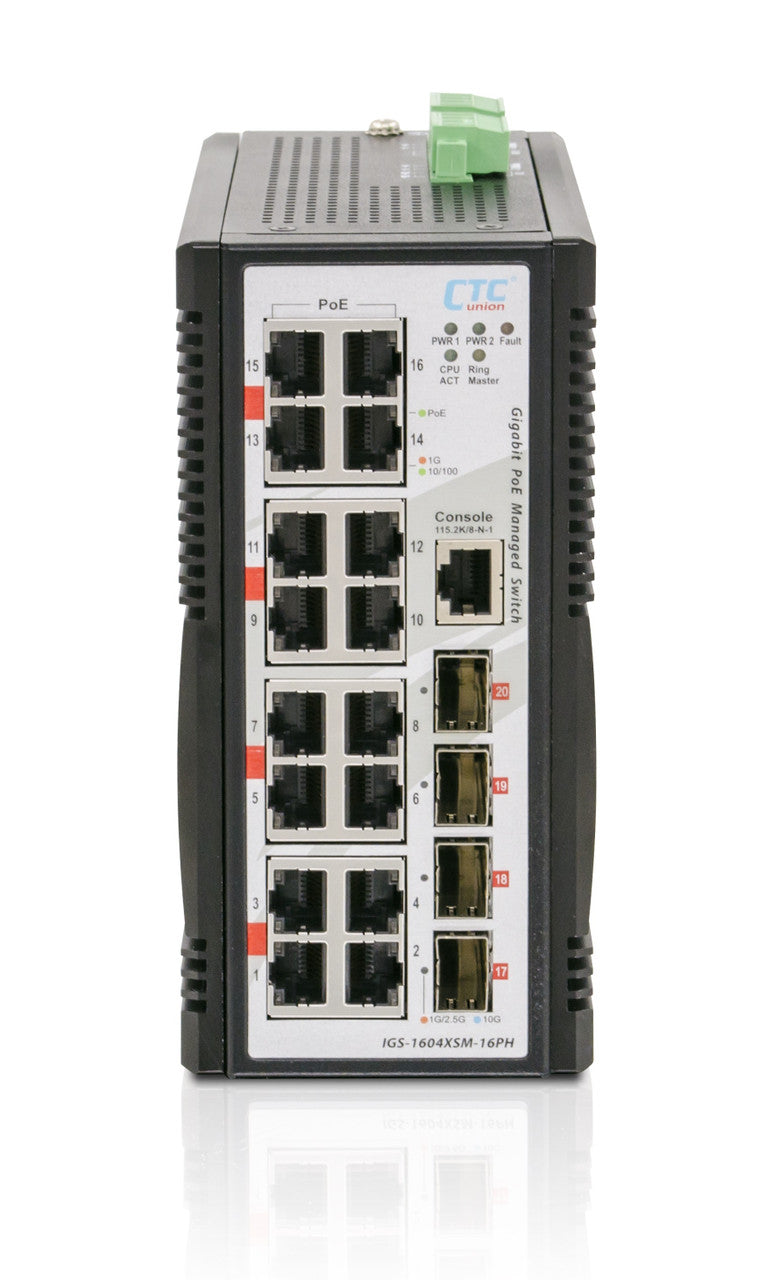

• 16x 10/100/1000Base-T RJ-45 and 4x 10G/2.5G/1G SFP+ Fiber ports

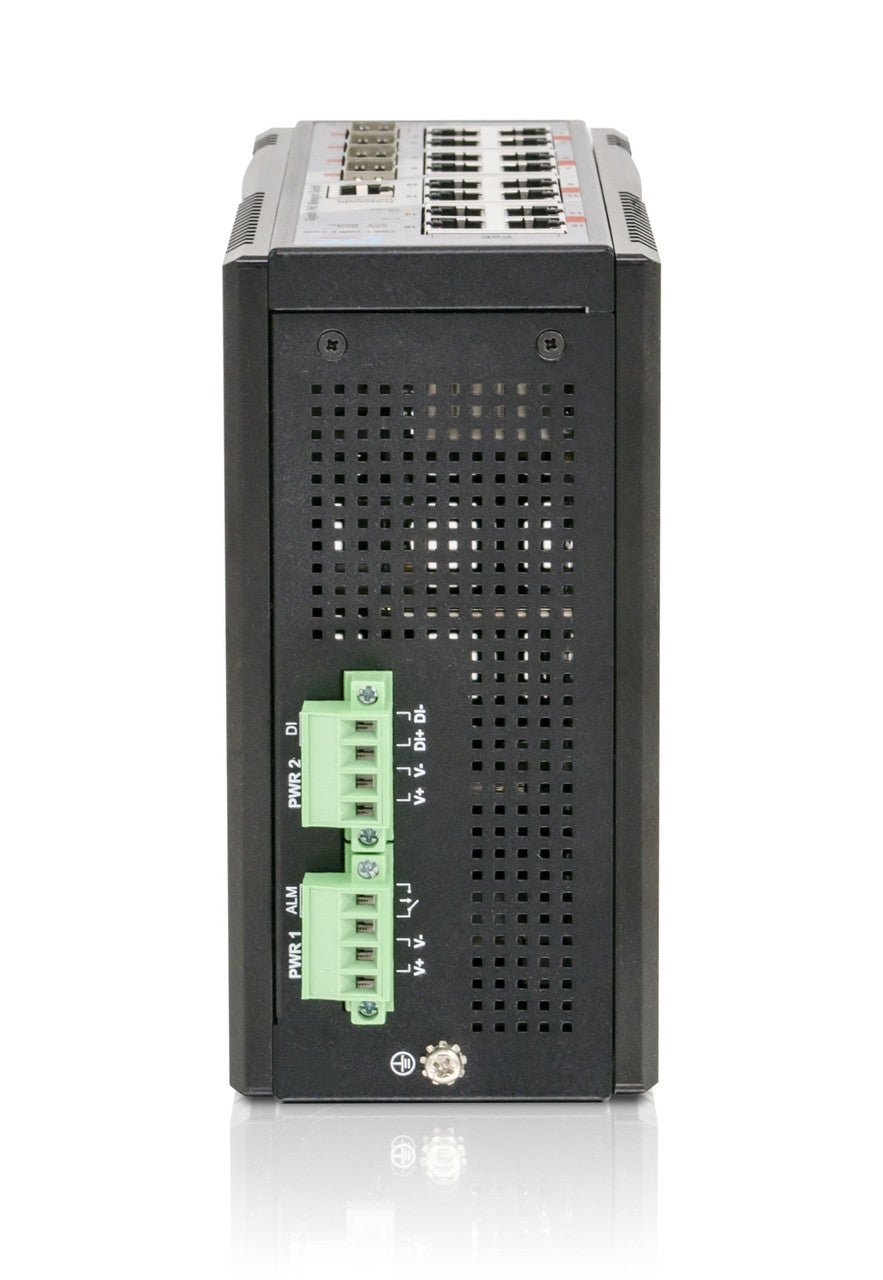

• 48VDC (24-60VDC) redundant dual input power
• UL60950-1, CE, FCC, Rail Traffic EN50121-4 certified
• Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
• Cable diagnostic, Measuring cable OK or broken point distance
• Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize the power consumption
• STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring (EPR) for redundant cabling
• Provide up to 5 instances that each supports u-Ring, u-Chain or Sub-Ring type for flexible uses
• u-Ring for Redundant Cabling, recovery time<10ms in 250 maximum devices
• DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
• IPv4/v6 Static Routing Supported
• RIP v1/v2 Dynamic Routing Supported
• OSPF v2, OSPF v3 Dynamic Routing Supported
• Layer 3 Redundancy VRRP v2, v3
• QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
• IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, MVR
• Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
• IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
• Security : Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
• Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
• RMON, MIB II, Port mirroring, Event syslog, DNS, NTP/SNTP, IEEE802.1ab LLDP
• Supports IPv6 Telnet server /ICMP v6
• CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
• SmartView Management System support
• Supporting Central EMS for management of up to 50 SmartView Server, and maximum up to 25,000 device

Additional information on IGR-1604XSM series: PDF datasheet; PDF Installation Manual; PDF Management Manual.
