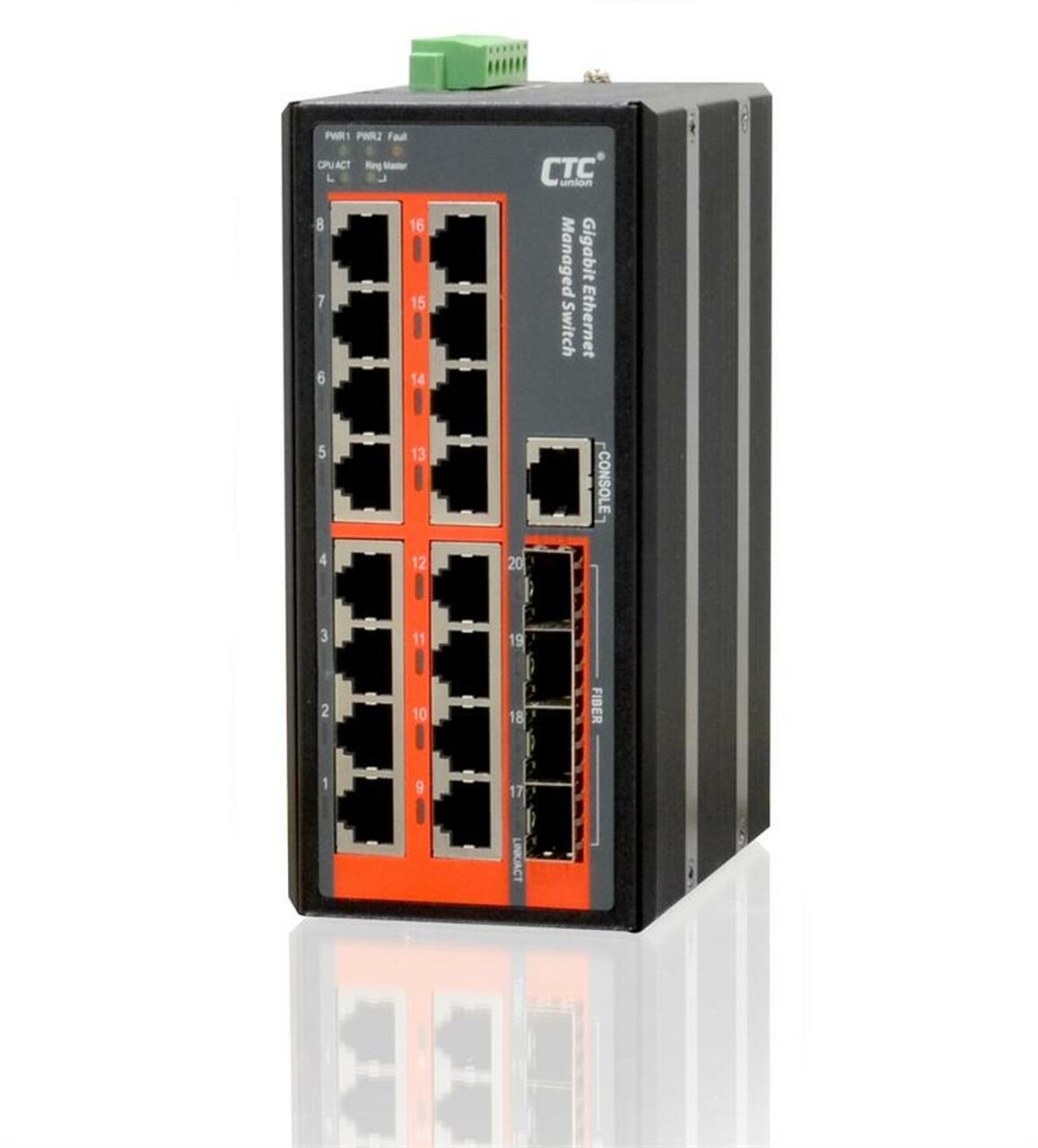

The IGS-1604SM is a managed industrial grade Gigabit switch with 16x 10/100/1000Base-T(X) ports and 4x SFP Gigabit/Fast Ethernet ports that provide stable and reliable Ethernet transmission.

The Ethernet switch supports a variety of management functions, including STP/ RSTP/MSTP/ ITU-T G.8032 Ring and multiple u-Ring for redundant cabling, layer 2 Ethernet IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostic, and Green Ethernet.

Housed in rugged DIN rail or wall mountable enclosures, this switch is designed for harsh environments, such as industrial networking, security automation applications, intelligent transportation systems (ITS), and is also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

Standard operating temperature range models (-10 to 60°C) and wide operating temperature range models (-40 to 75°C) fulfill the special needs of industrial automation applications.

Features:

• 16x 10/100/1000Base-T RJ-45 with 4x 100/1000Base-X SFP Fiber
• UL60950-1, CE, FCC, Rail Traffic EN50121-4 certified
• Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
• Cable diagnostic, Measuring cable OK or broken point distance
• Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize the power consumption
• STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring (EPR) for redundant cabling
• Provide up to 5 instances that each supports u-Ring, u-Chain, or Sub-Ring type for flexible uses, and a maximum of up to 5 Rings.
• u-Ring for Redundant Cabling, recovery time<10ms in 250 maximum devices
• DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
• QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
• IEEE802.1q VLAN, MAC-based VLAN, IP subnet based VLAN, Protocol-based VLAN, VLAN translation, MVR
• Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
• IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
• Security : Port-based and MAC-based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
• Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
• RMON, MIB II, Port mirroring, Event Syslog, DNS, NTP/SNTP, IEEE802.1ab LLDP
• Supports IPv6 Telnet server /ICMP v6
• CLI, Web-based management, SNMP v1/v2c/v3, Telnet server for management
• SmartView Management System support
