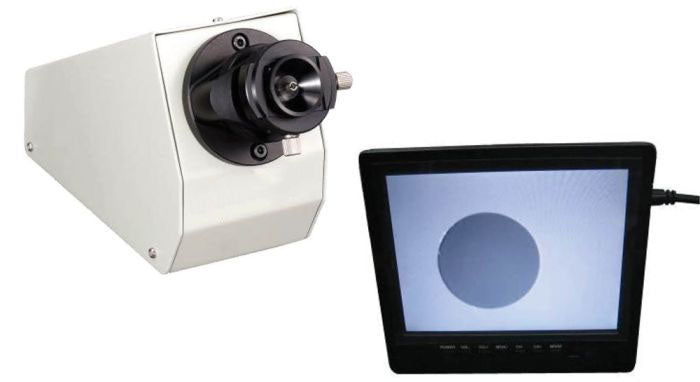

200X Benchtop Video Microscope with 8” Monitor

The Benchtop Video Microscope is designed for high-precision inspection of fiber connector endfaces. With 200X or 400X magnification options and an 8-inch detachable LCD monitor, this benchtop unit is ideal for factory post-polish quality control, patch cord assembly, and large core fiber inspection.

Download Product Spec Sheet:

• 200X benchtop video microscope spec sheet (PDF)

Key Features:

• 200X and 400X magnification options for detailed inspection

• Coaxial LED lighting for uniform, shadow-free illumination

• User-adjustable image centering and manual focus controls

• Horizontal and vertical adjustment up to 4 mm and 3 mm — ideal for MPO, MTRJ, and high-density connectors

• 8-inch LCD monitor included with BNC hookup

• Universal 2.5 mm and 1.25 mm adapters included (UPC)

• Optional adapters for SC/APC, LC/APC, MPO, SMA, and Duplex LC available

Specifications:

• Resolution: 800 x 600

• Interface: BNC (AV) port

• Power Supply: 12V AC adapter (included)

• Operating Temp: 14ºF – 122ºF (-10ºC ~ +50ºC)

• Storage Temp: -4ºF – 140ºF (-20ºC ~ +60ºC)

• Dimensions: 4.6” x 3.1” x 3.1”

• Weight: 3 lbs

Package Includes:

• Microscope base

• 8” LCD monitor

• Power supply

• BNC cable

• 2.5 mm and 1.25 mm universal adapters

• Carrying case

Ordering Info:

• F1VM200D – 200X version

• F1VM400D – 400X version

• Optional adapter tips (SC/APC, LC/APC, MPO, SMA) available separately
