Fusion Splicer Kit – AC7 PRO (SKU: F1SOCAC7PRO)

The AC7 PRO Fusion Splicer Kit is a powerful, cost-effective solution for high-performance fiber splicing, specially designed for use with Cheetah and Armordillo 2.0/3.0mm Splice-On Connectors.

It features dual-camera active cladding alignment, extended-life electrodes, and a rugged, splash-resistant carry case that doubles as a workstation. The enhanced onboard oven supports all 900µm Cheetah Splice-On Connectors—including ST and FC—without external tooling.

This PRO version includes removable 250µm and 900µm fiber holders, offering greater versatility for a variety of splicing environments. The intuitive 4.3" touch screen interface, pass/fail post-splice reporting, and up to 250 splice/heat cycles per battery charge make it ideal for field use.

Download Product Spec Sheet:

• Product spec sheet (PDF)
• Quick reference guide (PDF)

Features:

• Dual-camera active cladding alignment system

• 4.3" touch screen monitor

• Tool-less extended-life electrodes (up to 6,000 splices)

• Enhanced onboard oven for all FIS 900µm Cheetah connectors

• Long-life battery: up to 250 splice/heat cycles per charge

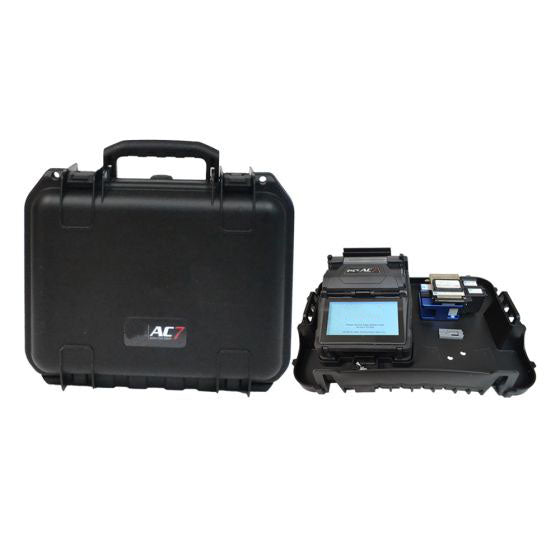

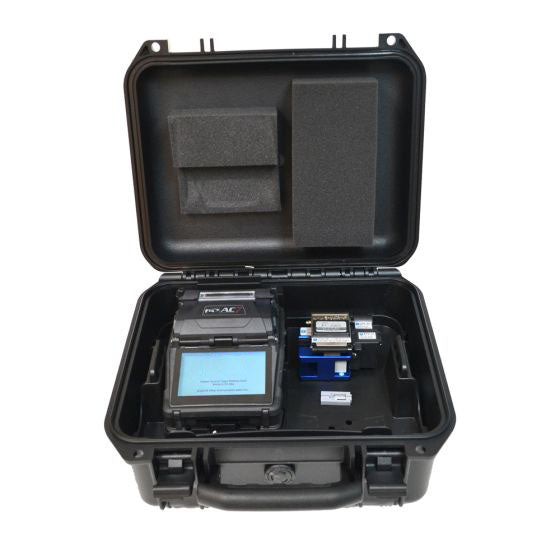

• Splash-resistant carrying case with built-in workstation

• Pass/fail post-splice reporting

• Interchangeable sheath clamps and removable 250µm & 900µm fiber holders (PRO only)

Kit Contents:

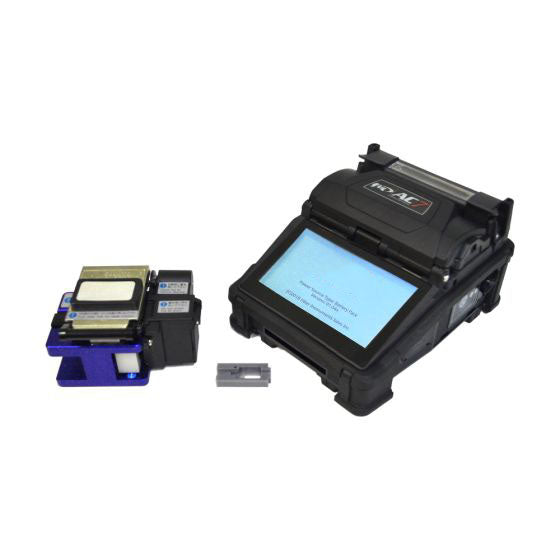

• AC7 clad alignment splicer

• Sumitomo FC6S+ cleaver

• Cheetah splice-on connector holder

• Spare ER-17 electrodes

• BU-17 lithium-ion battery

• ADC-15 AC/DC adapter

• PC-AC2-2P power cord

• WT-18 working tray

• WSK-18 shoulder strap

• Removable 250µm and 900µm fiber holders

Specifications:

• Applicable Fibers: SM (G.652), MM (G.651), DSF (G.653), NZDS (G.655), BIF (G.657)

• Splicing Time: ~6 sec (SM G.652 Quick Mode)

• Splice Loss Estimate: 0.03 dB (SM), 0.01 dB (MM), 0.05 dB (DS/NZDS)

• Splice Modes: 300 programmable modes

• Display: 4.3" color LCD, 140X/370X magnification

• Memory: 10,000 splices (internal), up to 20,000 with 16GB SD card

• Tube Heating Time: ~12 sec (60mm sleeve)

• Operating Temperature: -10°C to +50°C

• Weight: 1,200g (2.65 lbs) including battery

• Dimensions: 126 x 154 x 83 mm

A perfect solution for technicians needing portability, speed, and reliability in both field and lab settings.
