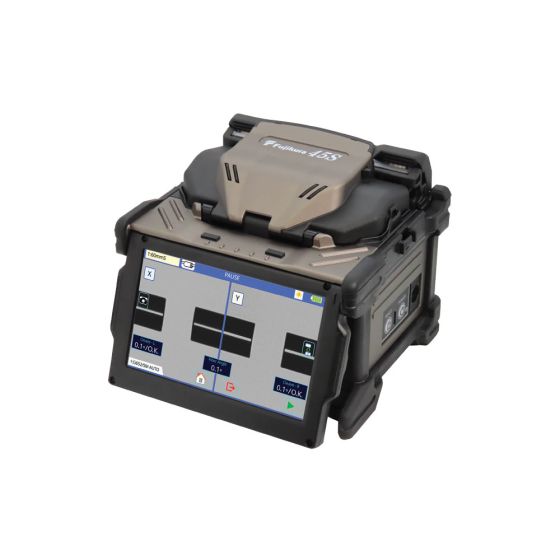

AFL Fujikura 45S Fusion Splicer Kit with Fiber Holders – No Cleaver
SKU: S018319

The Fujikura 45S is the latest generation cladding alignment fusion splicer, purpose-built for small to mid-count fiber splicing with a focus on speed, ruggedness, and innovation. Its patented simultaneous fiber loading and mechanically linked sheath clamps drastically reduce handling time, while a newly added Active Blade Management system ensures cleave quality and reduces splice loss. Compact and highly portable, the 45S features ergonomic upgrades, an adjustable screen, and built-in automatic fiber placement correction—making it ideal for high-volume field work in challenging environments.

Download Product Spec Sheet:

• Spec sheet (PDF)

Key Features

• Simultaneous Dual-Fiber Prep & Loading – Load both fibers at once using patented sheath clamp design

• Auto Clamp Release – Wind protector opens clamps for seamless sleeve transfer

• Active Blade Management – Monitors cleave quality and corrects as needed

• Automatic Fiber Placement Correction – Recovers from user placement errors without interrupting workflow

• Ultra-Fast Cycle – Shrinks 60mm sleeves in ~20 seconds

• Fully Ruggedized – Shock, dust, and moisture resistant for tough field conditions

• Compact Cube Form Factor – Easy to carry and operate in tight spaces

• Bluetooth 5.2 Connectivity – For wireless device integration and updates

Kit Includes

• Fujikura 45S Fusion Splicer

• SS-05 Single Fiber Stripper

• FH-70-250 and FH-70-900 Fiber Holders (1 pair each)

• SP-04 Set Plates

• ELCT2-16B Spare Electrodes (Pair)

• ADC-21 AC Adapter

• BTR-17 Battery Pack (installed)

• ACC-09 Power Cord

• USB-01 USB Cable

• AP-02 Alcohol Container

• WT-10 Work Tray

• ST-03 Carrying Strap

• TS-03 Tripod Screw

• CC-45 Transit Case

• 1-Year Factory Warranty

• Digital Instruction Manual (preloaded on splicer)

Note: This version does not include a cleaver. For a full kit with CT-50 cleaver, see SKU S018318.
