Fusion Splicer Kit F1SOCAC7 includes the AC7 Active Clad Alignment Fusion Splicer and a complete accessory set for professional-grade fiber splicing.

Designed for performance and affordability, this kit supports Cheetah and Armordillo 2.0/3.0mm Splice-on Connectors with a built-in oven that melts all 900μm connectors—including ST and FC—without external tools.

Download Product Spec Sheet:

• Product spec sheet (PDF)
• Quick reference guide (PDF)

Key Features:

• Dual Camera, Active Cladding Alignment

• 4.3" Touchscreen Display

• Extended Life Electrodes (up to 6,000 splices, tool-free change)

• Interchangeable sheath clamps and fiber holders

• Enhanced on-board oven for all FIS Cheetah 900μm Splice-on Connectors

• Up to 250 splice/heat cycles per battery charge

• Pass/Fail post-splice analysis

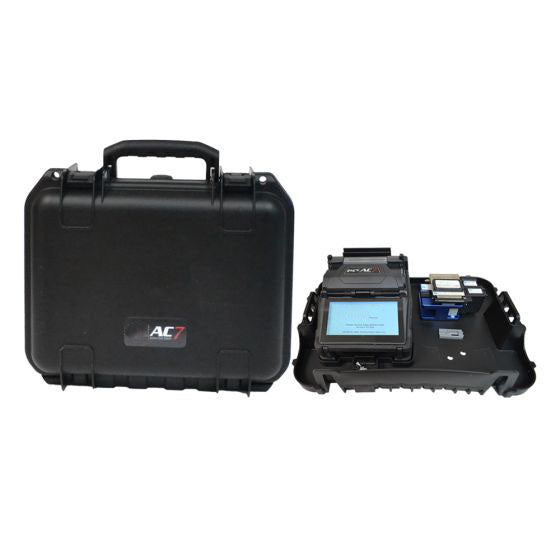

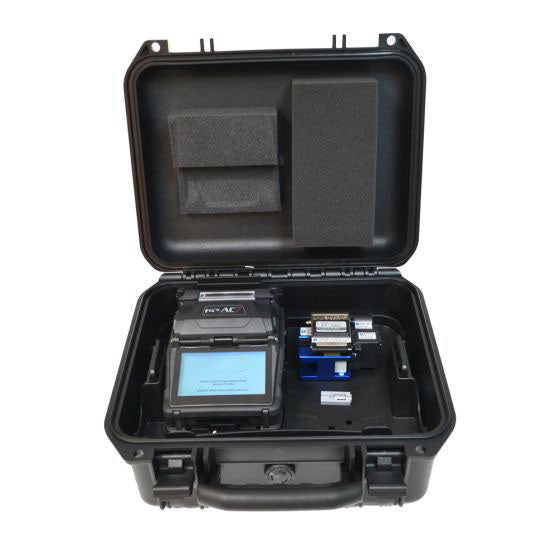

• Compact, splash-resistant carry case with integrated workstation

Kit Includes:

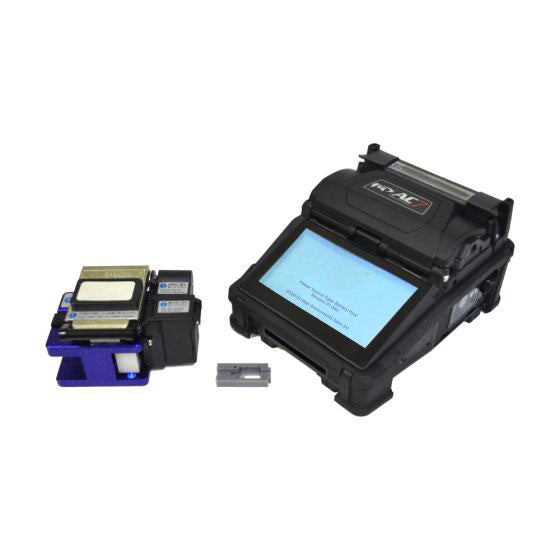

• AC7 Fusion Splicer

• Sumitomo FC6S+ Precision Cleaver

• Cheetah Splice-on Connector Holder

• Spare ER-17 Electrodes

• BU-17 Li-Ion Battery

• ADC-15 AC/DC Adapter

• PC-AC2-2P Power Cord

• WT-18 Working Tray

• WSK-18 Shoulder Strap

Specifications:

• Fiber Types: SM (G.652), MM (G.651), DSF (G.653), NZDS (G.655), BIF (G.657)

• Cladding: 125μm | Coating: 250μm–1,000μm

• Splice Loss: 0.03dB (SM), 0.01dB (MM), 0.05dB (DS/NZDS)

• Splice Time: 6 seconds (Quick Mode)

• Heating Time: 12 seconds (FPS-61-2.6 sleeve)

• Magnification: 140x (single view), 370x (dual view)

• Memory: Stores 10,000 splices (20,000 with SD card)

• Dimensions: 126×154×83 mm | Weight: 2.65 lbs

Ideal for field technicians seeking reliability and speed in a portable, fully-equipped kit.
