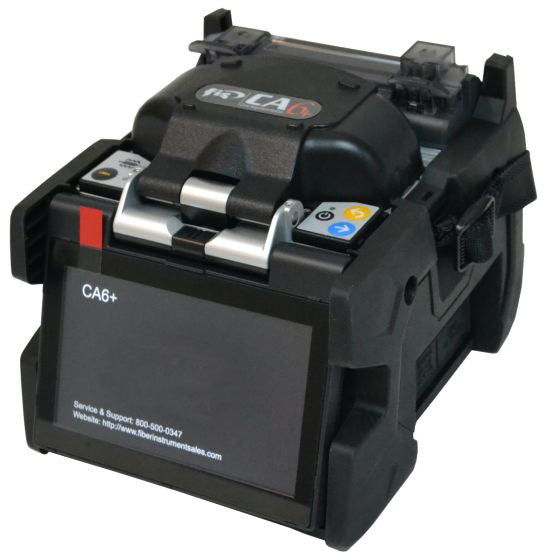

Fusion Splicer PRO KIT CA6+ Core Alignment (SKU: F1CA6PH)

Engineered for speed, durability, and smart operation, the CA6+ PRO Fusion Splicer Kit is a contractor-focused splicing solution ideal for both premise and long-haul applications. It features precise core alignment splicing, rapid operation, and rugged construction—making it one of the most capable and reliable splicers in the field.

Download Product Spec:

• Product spec sheet (PDF)

Key Features:

• Core Alignment Fusion Splicer with metallic-coated V-groove for easy maintenance

• Fast Splice Time: 6 seconds in SM Quick Mode

• Quick Melt Time: 15-second heat cycle

• High Battery Capacity: Up to 310 splice/heating cycles per charge

• Enhanced Durability: Shock, water, and dust resistant to IPx2 and IP5x standards

• 5.0” Touchscreen LCD for easy visual alignment and control

• Dual CMOS Cameras with 350X/700X magnification

• Auto Arc Calibration to adapt to environmental changes

• On-Board Oven optimized for FIS Cheetah SOCs (SC/LC/ST/FC)

Kit Includes:

• CA6+ Core Alignment Fusion Splicer Main Unit

• FC-6R+ Precision Cleaver (auto blade rotation + fiber catcher)

• Cheetah Splice-On Connector Holder

• Spare ER-10 Electrodes

• 250µm and 900µm removable fiber holders

• Sheath clamps

• Li-ion battery and charger

• User manual and rugged carrying case

Technical Specifications:

• Fiber Types: SMF, MMF, DSF, NZDSF, BIF

• Cladding Diameter: 80–150µm | Coating Diameter: 100–1,000µm

• Splice Loss (typ.): 0.02dB SMF, 0.01dB MMF

• Proof Test: 1.96–2.09N

• Electrode Life: 6,000 discharges

• Internal Memory: Stores 10,000 splices; supports SD card up to 32GB

• Dimensions: 128 x 154 x 130 mm | Weight: 2.0kg with battery
