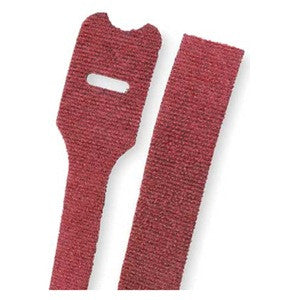

Features:

• UL Listed for use in plenum or air handling spaces per NEC, Section 300-22 (C) and (D)
• Highest tensile strength of any plenum-rated Hook & Loop Ties in the industry
• Adjustable, releasable and reusable multiple times - ideal for applications requiring frequent moves, adds or changes
• Hook and loop material maintains network data integrity by protecting against over-tensioning of high performance copper and fiber cables
• Flammability rating: UL94V-2Note: Minimum 2" overlap required to achieve loop tensile rating

Specifications:

Part number	HLTP2I-X12
RoHS Compliancy Status	Compliant
Part Description	Hook & Loop Cable Tie, UL Listed, Loop Style, 8.0", Intermediate cross section
Product Type	Cable Ties
Material	Nylon Loop, Polypropylene Hook
Color	Maroon
CSA Certified	Yes
UL Listed (File #E56854)	Yes
UL Recognized (File #E56854)	No
Length (In.)	8.00
Length (mm)	203.0
Width (In.)	0.50
Width (mm)	12.7
CE Compliant	No
Cross Section	Intermediate
Head Width (In.)	1.00
Head Width (mm)	25.4
Locking Style	Hook & Loop
Material Flammability Rating	UL 94V-2
Max. Bundle Diameter (In.)	1.91
Max. Bundle Diameter (mm)	49.0
Min. Bundle Diameter (In.)	0.25
Min. Bundle Diameter (mm)	6.4
Min. Loop Tensile Strength (Lbs.)	40
Min. Loop Tensile Strength (N)	178
Plenum-Rated	Yes, for use in plenum or air handling spaces per NEC Sec. 300.22 (C) and (D)
Pricing Description	Hook & Loop Tie, Plenum Loop Style, 8.0"L (203mm), .50"W (12.7mm), Maroon
Temperature Range	0øF ? 122øF
Thickness (In.)	0.100
Thickness (mm)	2.5

Product Sheet:

• Spec Sheet
