SH-S95 Fiber Thermal Stripper
SH-S95 Fiber Thermal Stripper
Durable. Precise. Built for Efficiency.
The SH-S95 Fiber Thermal Stripper is engineered for professional fiber preparation with high consistency and ease. Featuring a full-metal body and a powerful wide heating blade, it strips up to 48 bare fibers or 24 ribbon fibers in one go — significantly improving multi-core fiber prep efficiency. The device supports four precise temperature settings (100°C–160°C), which can be easily adjusted to match different fiber coatings and ambient conditions.
Powered by a 2600mAh built-in lithium battery and conveniently chargeable via Type-C, the S95 is highly portable for both field and lab work. Its temperature memory function saves your last setting, and an auto shut-off timer enhances safety. Designed for technicians who demand speed, accuracy, and reliability.
Download Product Spec Sheet:
Key Features
-
Full metal body for enhanced stability and durability
-
Supports multiple fiber types: bundle, bare, ribbon, invisible
-
Strips up to 48 bare fibers or 24 ribbon fibers at once
-
4 preset temperatures: 100°C, 120°C, 145°C, 160°C
-
Temperature memory function retains last-used setting
-
Auto shut-off in 6 minutes for safety and battery life
-
Type-C fast charging with USB power compatibility
-
Clear LED indicators for temperature and battery level
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | S95 Fiber Thermal Stripper |
| Applicable Fibers | Bundle / Bare / Ribbon / Invisible |
| Stripping Capacity | 1–15 bundle cores, 1–48 bare, 2–24 ribbon, 1–12 invisible |
| Cladding Diameter | 125 μm |
| Stripping Length | ≤32 mm |
| Blade Width | 20 mm |
| Temperature Levels | 100°C, 120°C, 145°C, 160°C |
| Power Supply | Built-in 7.4V 2600mAh battery, Type-C 5V input |
| Auto Shut-Off | After 6 minutes |
| Dimensions | 110 × 40.5 × 31 mm |
| Weight | ~305 g |

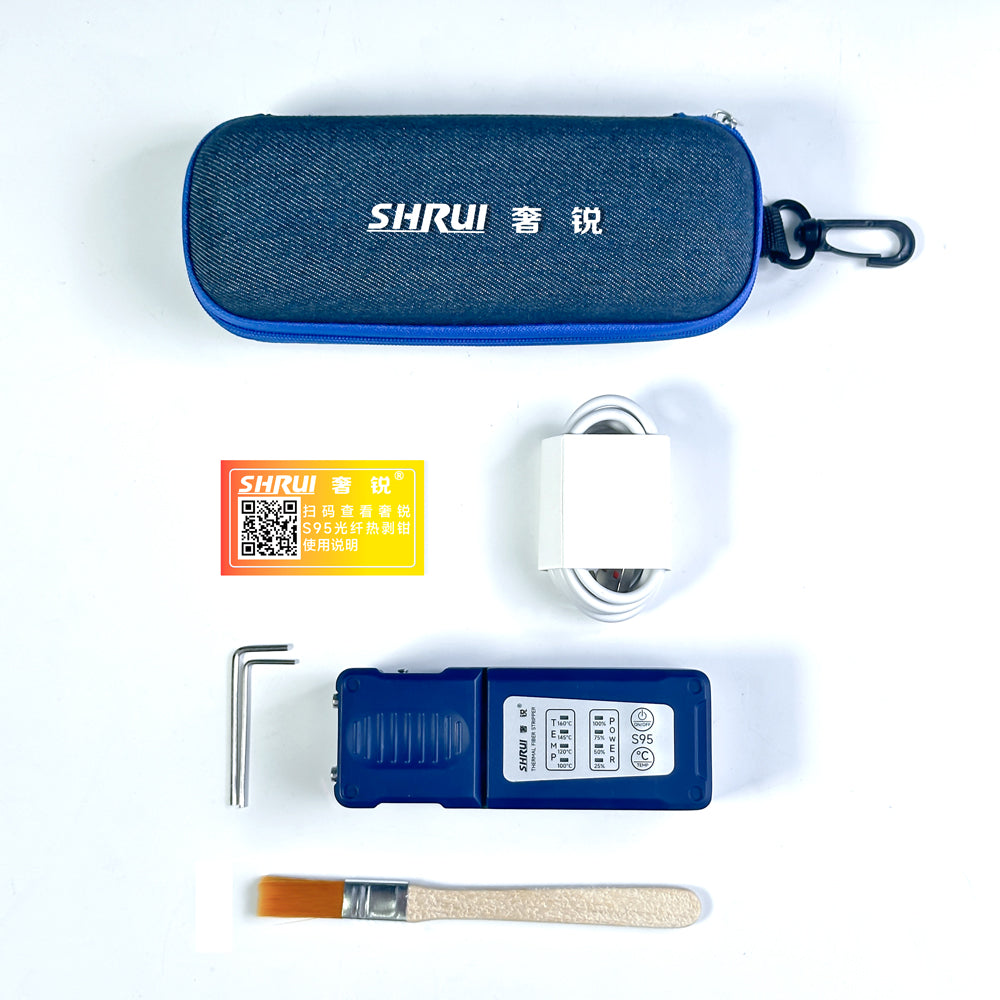

Package Contents
| Item | Qty |
|---|---|
| Fiber Thermal Stripper | 1 |
| Storage Box | 1 |
| USB Charging Cable (Type-C) | 1 |
| Cleaning Brush | 1 |
| Adjustment Wrenches | 2 |
| Certificate | 1 |
| Quick Guide (QR code) | 1 |

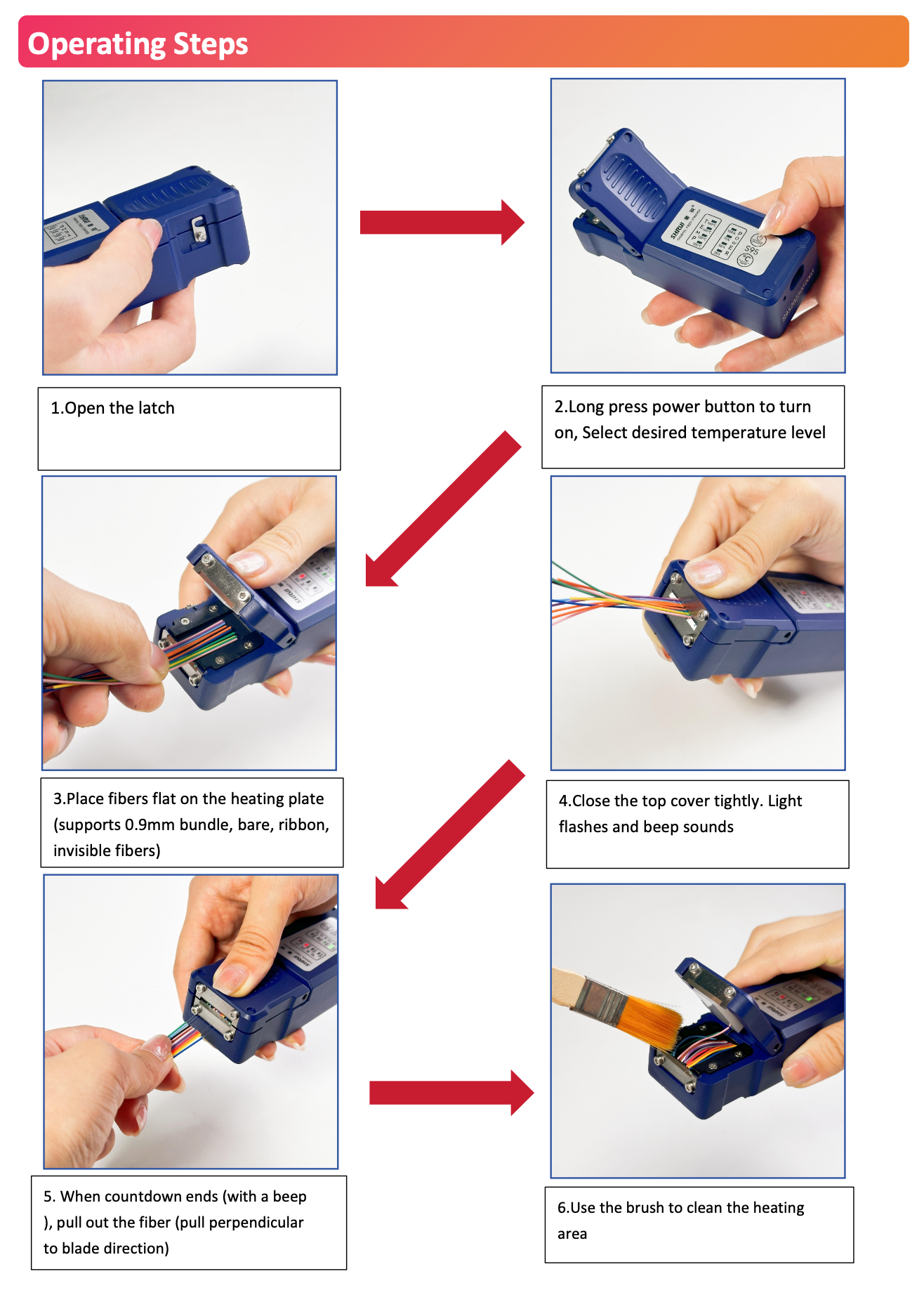

How to Use
-
Power on by holding the power button
-
Select temperature using the temp button (cycles through 100 → 120 → 145 → 160°C)
-
Open latch and top cover
-
Place fibers flat on heating plate and close top cover firmly
-
Wait for countdown and beep; pull fiber straight out
-
Clean heating area with provided brush
Note: Always leave the top cover open when not in use to protect the silicone pad.
