Splice-On Connector Cheetah LC PC Multimode 50um OM3 900um Aqua 100 Pack

Fosco Connect Part No.: F1LCOM3SOC100B

  • $ 995.00 or

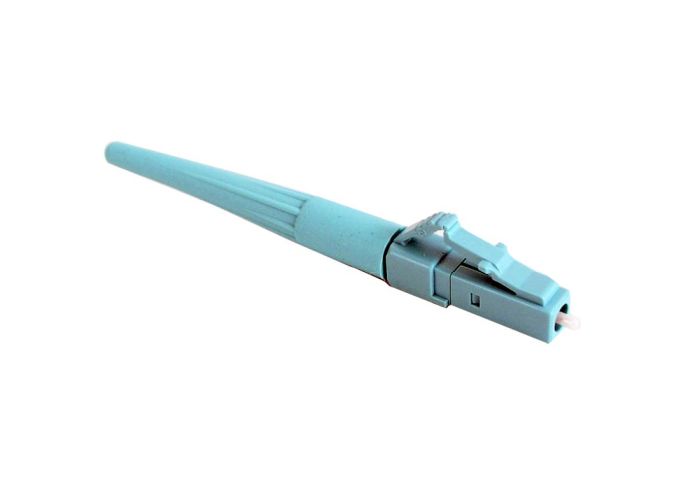

Cheetah LC PC Splice-On Connector, Multimode OM3 50µm, 900µm, Aqua – 100 Pack

The Cheetah LC PC Splice-On Connector is the ultimate solution for fast, high-density multimode fiber terminations. Designed for OM3 50/125µm fiber, these connectors come pre-cleaved and factory-polished to minimize installation time and ensure consistent optical performance. The built-in 27mm fusion splice sleeve is housed inside a compact strain relief boot, eliminating the need for splice trays or bulky enclosures. These connectors are compatible with most leading fusion splicers, including models from FIS, AFL, Sumitomo, and Fitel.

Key Features:

  • Connector type: LC PC

  • Fiber type: Multimode OM3, 50/125µm

  • Jacket size: 900µm, aqua

  • Polish type: PC (Physical Contact)

  • Format: 100-pack

Product Highlights:

  • Fastest installation with pre-polished, pre-cleaved design

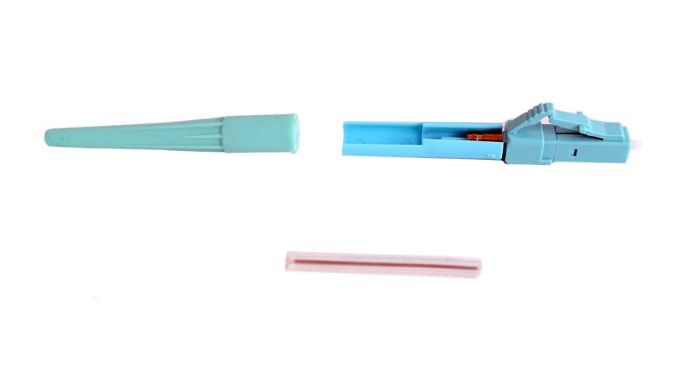

  • 27mm fusion splice sleeve concealed within strain relief boot – no splice tray required

  • Compatible with most fusion splicers using removable fiber holders

  • Built with precision zirconia ferrules for reliable alignment and durability

  • Industry-leading return loss performance:

    • APC: -65 dB

    • UPC: -55 dB

    • PC: -30 dB

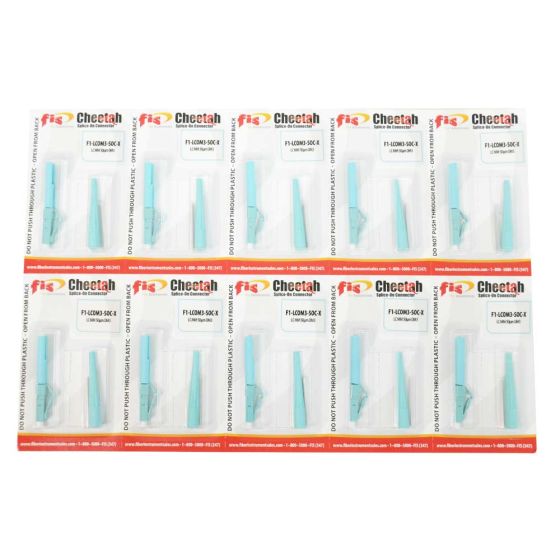

Package Includes:

  • 100x Cheetah LC PC Splice-On Connectors (OM3, aqua)

  • 100x 27mm fusion splice sleeves

  • 100x integrated strain relief boots

Ideal for data centers, enterprise networks, and backbone cabling where speed, performance, and density are key.
