Splice-On Connector Cheetah SC PC Multimode 62.5um OM1 900um Beige 100 Pack

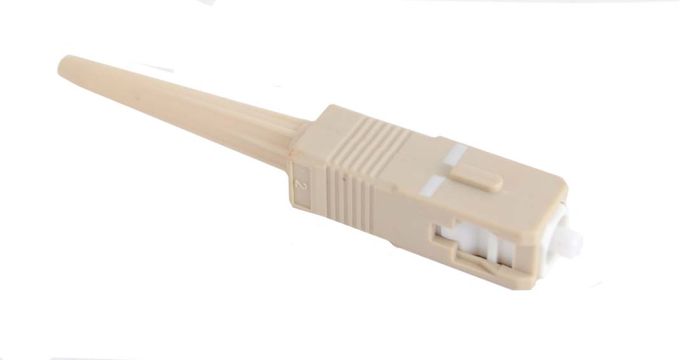

Cheetah SC PC Splice-On Connector, Multimode OM1 62.5µm, 900µm, Beige – 100 Pack
The Cheetah SC PC Splice-On Connector offers a fast, space-efficient, and highly reliable solution for field termination of OM1 multimode fiber. Each connector is factory pre-cleaved and pre-polished, reducing prep time and ensuring consistent results. The 27mm fusion splice sleeve is hidden within a custom strain relief boot, eliminating the need for splice trays and bulky enclosures. Precision machined to fit leading fusion splicers from FIS, AFL, Sumitomo, Fitel, and others.
Key Features:
-
Connector type: SC PC
-
Fiber type: Multimode OM1, 62.5/125µm
-
Jacket size: 900µm, beige
-
Polish type: PC (Physical Contact)
-
Format: 100-pack
Product Highlights:
-
Pre-cleaved and factory-terminated for rapid, reliable installation
-
27mm fusion splice sleeve integrated within custom strain relief boot – no tray needed
-
Works with most fusion splicers using removable fiber holders
-
High-quality zirconia ferrules ensure optical precision and durability
-
Return loss performance meets or exceeds:
-
APC: -65 dB
-
UPC: -55 dB
-
PC: -30 dB
-
Package Includes:
-

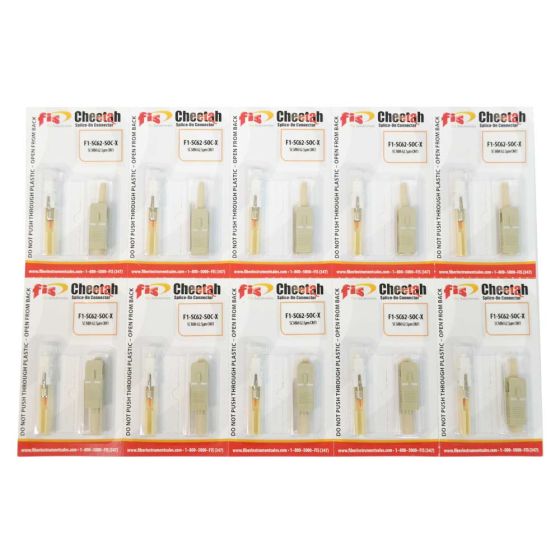

100x Cheetah SC PC Splice-On Connectors (OM1, beige)
-
100x 27mm fusion splice sleeves
-

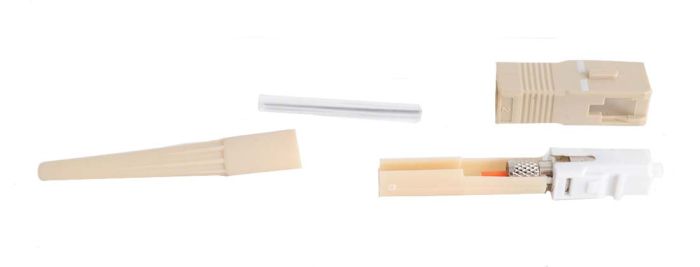

100x integrated strain relief boots
Ideal for high-volume OM1 installations in enterprise networks, building backbones, and legacy multimode systems requiring fast, space-saving terminations.
