SKU: TYPEQ102M12PKIT6RP1

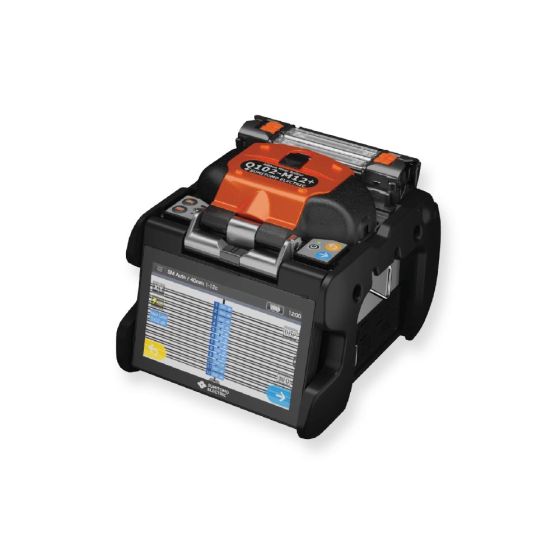

Product: Sumitomo Q102-M12+ Quantum Ribbon Fusion Splicer Kit
Restriction: 🚫 No Export

Overview
The Sumitomo Q102-M12+ Quantum Ribbon Fusion Splicer Kit delivers next-generation AI-powered ribbon fiber splicing with exceptional speed, accuracy, and ruggedness. Engineered for high-volume applications, this kit features dual built-in heat shrink ovens, advanced NanoTune™ technology, and an Active Cladding Alignment system. Designed to streamline your workflow in the field or lab, it includes all necessary tools and accessories for immediate deployment.

Download Product Spec Sheet:

• Spec sheet (PDF)

Key Features

• AI-Powered NanoTune™ core alignment for improved splice accuracy

• Active Cladding Alignment System for consistent splicing

• Dual independent built-in heat shrink ovens

• Replaceable V-Groove Block for easy maintenance

• Patented non-stick V-grooves and lens coating

• Splice time as fast as 11 seconds (12-fiber Quick Mode)

• Heating time as fast as 28 seconds (12-fiber Quick Mode)

• Supports 1 to 12 ribbon fiber splicing

• 5” Touchscreen LCD Display

• Dual CMOS camera system with 23x–46x zoom

• Stores up to 50,200 images / 20,000 splices with 16GB SD card

• Withstands harsh environments: IPx2 water resistance, IP5x dust resistance, and drop-tested

• 3-Year Limited Warranty

Kit Includes

• Q102-M12+ Ribbon Fusion Splicer Unit

• Tabletop Precision Cleaver (FC-6R+)

• Heated Jacket Remover (JR-7)

• 250um 12-Fiber Holders (FHM-12V)

• 250um Single Fiber Holders (FHS-025)

• Splice Protection Sleeves (FPS-6 Type)

• Cooling Tray

• Cleaning Kit (FUS-CLN-KIT-M)

• V-Groove Cleaning Brush (VGB-004)

• Battery Unit (BU-102)

• AC Interface / Battery Charger with Power Cord

• Shipping Case

Note: This product is not eligible for export outside the United States.
