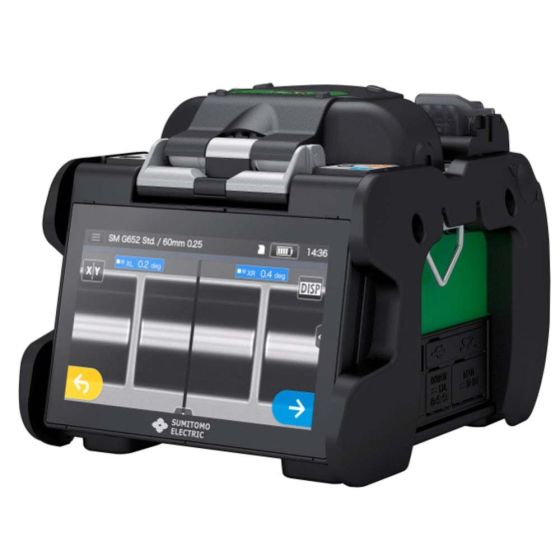

Sumitomo TYPE-56+ Fusion Splicer Kit with Auto Blade Cleaver
SKU: TYPE56PCAKIT8R

The TYPE-56+ Fusion Splicer from Sumitomo Electric delivers fast, precise, and field-ready performance in a compact package. With 6-second splice and 15-second heat times, it drastically reduces jobsite splicing cycles. Designed with a new touchscreen interface, the T-56 offers an intuitive, modern user experience, even for new technicians. It’s built for versatility across a wide range of fiber types and is optimized for durability in rugged conditions. This kit includes everything needed for immediate deployment, including a precision cleaver with auto rotating blade.

Download Product Spec Sheet:

• Spec sheet (PDF)

Key Features

• Ultra-Fast Splice Cycle – 6 sec splice time in SM Quick Mode

• Rapid Sleeve Heating – 15 sec heating with optimized oven

• Low Splice Loss – Typical 0.02 dB (SMF)

• Adaptive Arc Calibration – Automatically adjusts for environmental changes

• New Touchscreen UI – 5.0" WVGA color LCD with simplified navigation

• Field-Tough Design – Drop tested, dust- and moisture-resistant (IP5x/IPx2)

• Battery Life – Up to 300 splice and heat cycles per charge

Kit Includes

• TYPE-56+ Fusion Splicer

• Precision Cleaver with Auto Rotating Blade (FC-8R)

• Fiber Stripper (JR-M03)

• One Pack of Fiber Protection Sleeves

• Spare Electrodes (ER-10)

• AC Interface/Battery Charger with Power Cord

• Battery Unit (BU-101)

• Cooling Tray

• USB Cable

• Rugged Shipping Case with Integrated Work Table

Note: Ideal for FTTx, backbone, and restoration work. Supports 250 µm, 900 µm, loose buffer, and jacketed fiber configurations.
