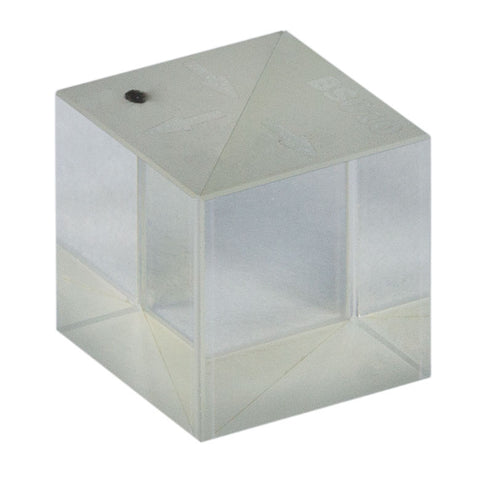

T-BS010 - 50:50 Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 10 mm
T-BS010 - 50:50 Non-Polarizing Beamsplitter Cube, 400 - 700 nm, 10 mm
- Broadband AR-Coated Faces for 400 - 700 nm
- Broadband Beamsplitter Coating on Internal Diagonal Surface
- 10:90, 30:70, 50:50, 70:30, or 90:10 (R:T) Split Ratio
- Sizes from 5 mm to 2" (See Below for Details)
- N-BK7 Substrate
- Size 10 mm Cube
- Transmitted Wavefront Error (@ 633 nm) <λ/4
- Transmitted Beam Deviation 0° ± 5 arcmin
| Item # | T-BS010 |
|---|---|
| Cube Side Length | 10 mm |
| Clear Aperture | >8.0 x 8.0 mm |
|
Transmitted Wavefront Error |
<λ/4 |
| Transmitted Beam Deviation | 0° ± 5 arcmin |
|

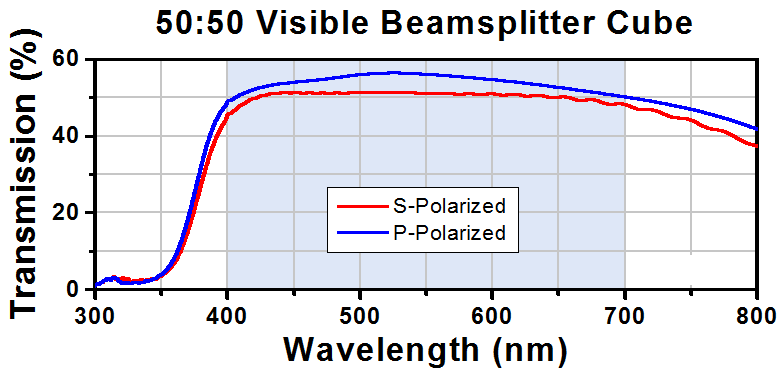

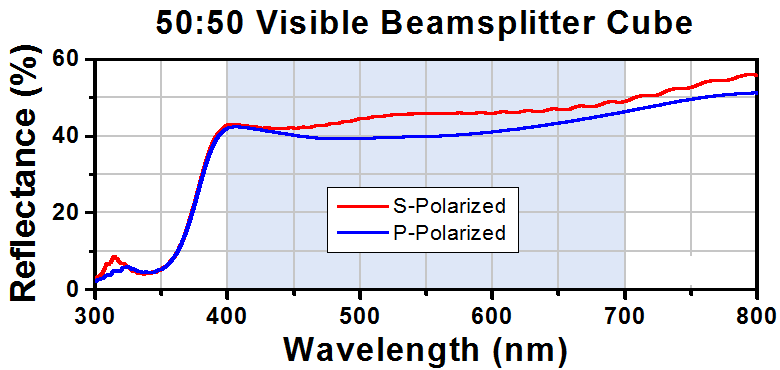

Overall Performance |
Tabs= 47 ± 10%, Rabs= 47 ± 10%, and Tabs + Rabs > 85% Tavg + Ravg > 90% |Ts - Tp| < 10% and |Rs - Rp| < 10% |
| Damage Threshold |
Pulsed: 0.25 J/cm2 (532 nm, 10 ns, 10 Hz, Ø0.341 mm) CW: 50 W/cm (532 nm, Ø1.000 mm) |
