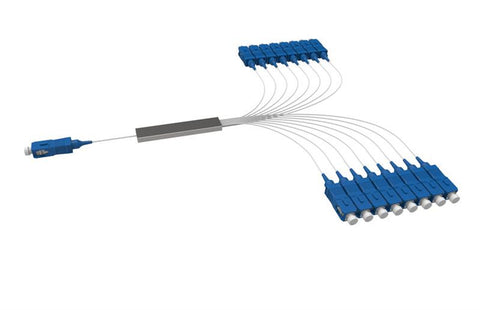

RB-PLC-116-MIN-SCU mini format PLC splitter 1x16, SC/UPC connectors, PON or CATV, 1m cords
Mini Planar Lightwave Circuit (PLC) splitters are having a small footprint, being ideal for on the spot splicing and integration. The Mini splitters have SC or LC optical connectors with UPC or APC polishing and use .9mm fiber pigtails. Their casing is made of aluminum. Configurations are available for up to 1x32 for the mini type splitters. Usual pigtail length is 1m for each port, but custom length pigtails can be provided on request.
Our PLC splitters provide a reliable way of splitting optical fiber into multiple paths. We offer configurations ranging from 1x2 to 1x64 and from 2x2 to 2x8 ways of splitting. Wide application of PLC splitters can be found in PON networks. With various packaging formats, PLC filters can be installed in miniature fiber splicing boxes, fiber trays, junction boxes or even into data communication racks. The PLC splitters are low Insertion Loss and low PDL and RoHS certified.
Technical Specifications for RB-PLC-116-MIN-SCU
|
Parameters |
Values |
Units |
|||
|
Channel Number |
1×16 |
|
|||
|
Operation Wavelength |
1260 ~ 1650 |
nm |
|||
|
Test Wavelength |
1310/1550 |
nm |
|||
|
Insertion Loss |
1x8 |
≤10.5 |
dB |
||
|
1x16 |
≤13.6 |
||||
|
Uniformity |
1x16 |
≤1.3 |
dB |
||
|
PDL |
1x16 |
≤0.3 |
dB |
||
|
Return Loss |
≥50 |
dB |
|||
|
Directivity |
≥55 |
dB |
|||
|
Fiber Type |
G657A |
|
|||
|
Pigtail Type |
1xN |
Input: 0.9mm loose tube |
|
||
|
Output: 0.9mm loose tube(1×2~16/2x2~8) |
|
||||
|
Length |
≥1.0 |
M |
|||
|
Connector |
SC/UPC |
|
|||
|
Fiber Color |
Input：white |
|
|||
|
1x16 |
Out: Blue/Orange/Green/Brown/ Gray/White/Red/Black |
||||
|
Tube Color |
1xN |
Input：white |
|||
|
1x16 |
Out: Blue/Orange/Green/Brown/ Gray/White/Red/Black |
||||
|
Package Dimensions(L×W×H) |
1x16 |
60x12x4 |
mm |
||
|
Operation Temperature |
-40 ~ +85 |
℃ |
|||
|
Storage Temperature |
-40 ~ +85 |
℃ |
|||
Additional PLC splitter information:
PLC Splitters PDF datasheet.
