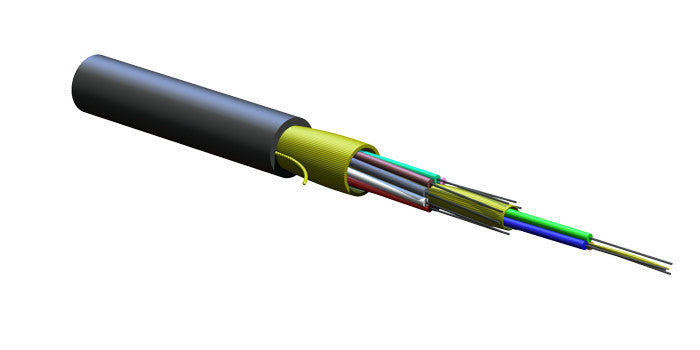

Freedm One Riser Cables, Single-Mode (OS2), 12 Strands
General Specifications
| Environment | Indoor/Outdoor Cables |
|---|---|
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser |
| Cable Type | Tight-Buffered |
| Product Type | Dielectric |
| Flame Rating | Riser (OFNR) |
| Fiber Category | Single-mode (OS2) |
Standards
| Approval and Listings | National Electrical Code (NEC) OFNR, FT-4 |
|---|---|
| Design and Test Criteria | ICEA S-104-696 |
Cable Design
| Central Element | Dielectric |
|---|---|
| Fiber Count | 12 |
| Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Tensile Strength Elements and/or Armoring - Layer 1 | Water-swellable strength members |
| Number of Ripcords | 1 |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Outer Jacket Color | Black |
Temperature Range
| Storage | -40 øC to 70 øC (-40 øF to 158 øF ) |
|---|---|
| Installation | -10 øC to 60 øC (14 øF to 140 øF ) |
| Operation | -40 øC to 70 øC (-40 øF to 158 øF ) |
Mechanical Characteristics Cable
| Weight | 36 kg/km (24 lb/1000 ft) |
|---|---|
| Nominal Outer Diameter | 6.5 mm (.26 in) |
| Min. Bend Radius Installation | 98 mm (3.8 in) |
| Min. Bend Radius Operation | 33 mm (1.3 in) |
| Max. Tensile Strengths, Short-Term | 675 N (150 lbf) |
| Max. Tensile Strengths, Long-Term | 200 N (45 lbf) |
