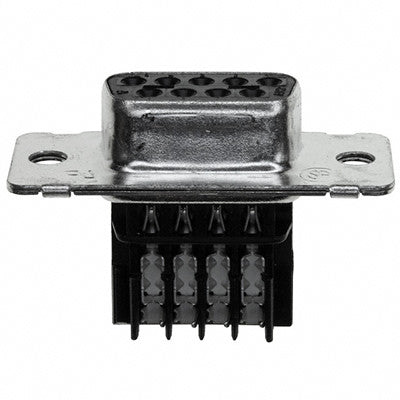

Db9 Recepticle Assembly Tin Plated Steel Shell IDC Contacts Rs449 RoHS
Move your mouse over image or click to enlarge

Db9 Recepticle Assembly Tin Plated Steel Shell IDC Contacts Rs449 RoHS

TE Connectivity Part No.: 1-745491-7

  • $ 7.92 or


Features:

  • Industry Standards.RoHS/ELV Compliance: RoHS compliant, ELV compliant
  • Industry Standards.Lead Free Solder Processes: Not relevant for lead free process
  • Product Type Features.Color: Black
  • Body Features.number of Positions: 9
  • Housing Features.Connector Style: Receptacle
  • Product Type Features.Product Type: Connector
  • Contact Features.Contact Type: Socket
  • Product Type Features.Shell Size: 1
  • Packaging Features.Packaging Quantity: 140
  • Other.Comment: All connectors are preloaded. Individual conductor strands should be larger than 0.13 [.005] diameter. Contacts accept a max. wire insulation thickness of 0.38 [.015]. HDE connectors are designed for terminating solid or stranded (7-strand max.) wire.
  • Connectors can be made available with clinch nuts, contact AMP Incorporated
  • HDE connectors are designed for terminating solid or stranded (7-strand max.) wire.
  • Individual conductor strands should be larger than 0.127 in. [.005] diameter.
  • Contact Features.Preloaded: Yes
  • Product Type Features.Grade: Standard
  • Product Type Features.Wire/Cable Type: Discrete Wire, Round Jacketed Cable
  • Product Type Features.Product Series: HDE-20 (IDC)
  • Product Type Features.Shell Type: Full Metal Shell
  • Termination Features.Solder Tail Contact Plating: Tin over Nickel
  • Contact Features.Contact Base Material: Phosphor Bronze
  • Product Type Features.Mating Connector Lock Type: Mounting Holes
  • Product Type Features.Mating Connector Lock: With
  • Contact Features.Contact Plating, Mating Area, Material: Gold (30)
  • Body Features.Wire Range (mm [AWG]): 0.15 - 0.40 [26-22]
  • Product Type Features.Wire Insulation Diameter (mm [in]): 1.52 [0.060]

Product Sheet:
