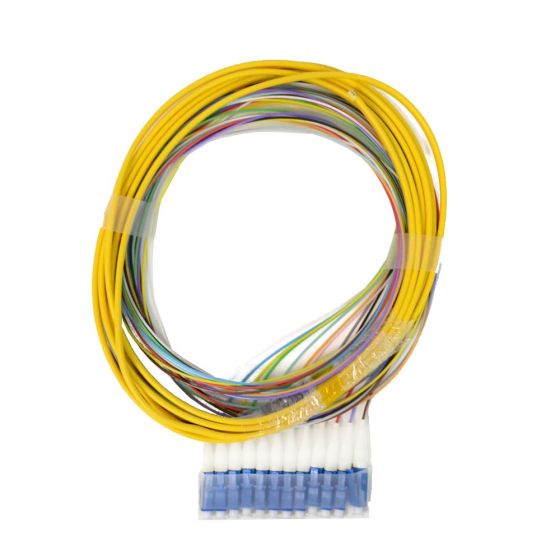

These Ribbon style pigtails fan out into 900µm color coded tight buffered fibers, color coded to TIA-598-A industry standards. 12 fiber pigtails colors are Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose and Aqua.

Stock pigtail configurations are available with your choice of LC, SC or ST fiber optic connectors and a variety of end face polishes.

Applications include terminating ribbon fiber to patch panels and enclosures, high fiber count splicing applications, as well as V-Groove and array applications.

All fan out kits feature low insertion loss, low back reflection and are made with Corning® fiber. Standard ribbon pigtails have an overall length of 3 meters: 1 meter 900µm fan out, and 2 meter ribbon tail.

All Fosco pigtails are manufactured with Corning® fiber and have a typical Insertion Loss of 0.4dB(max).

Contact Fosco for custom fan-out lengths, specifications and pricing.
