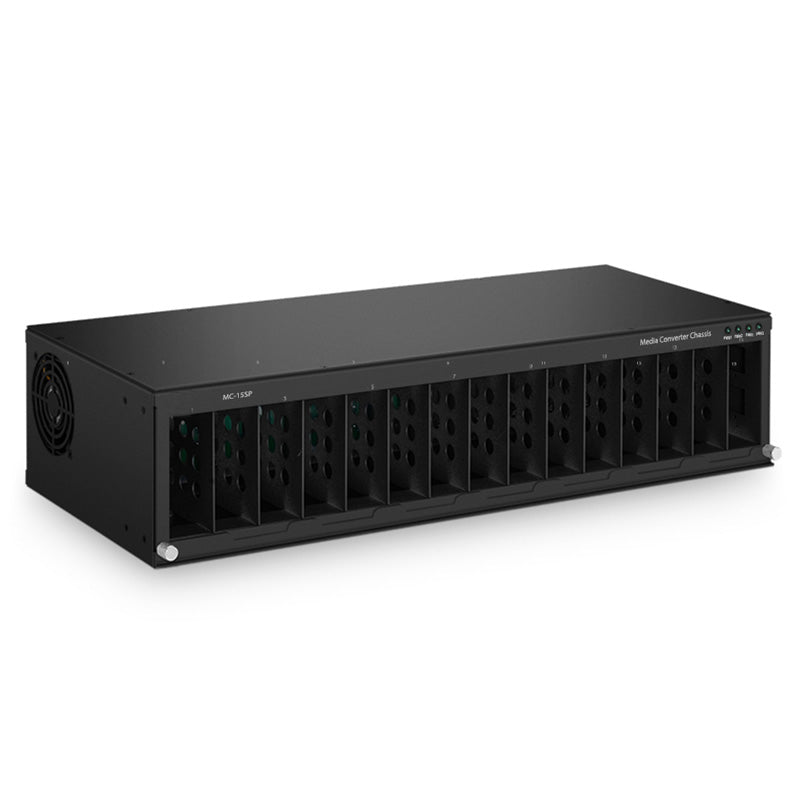

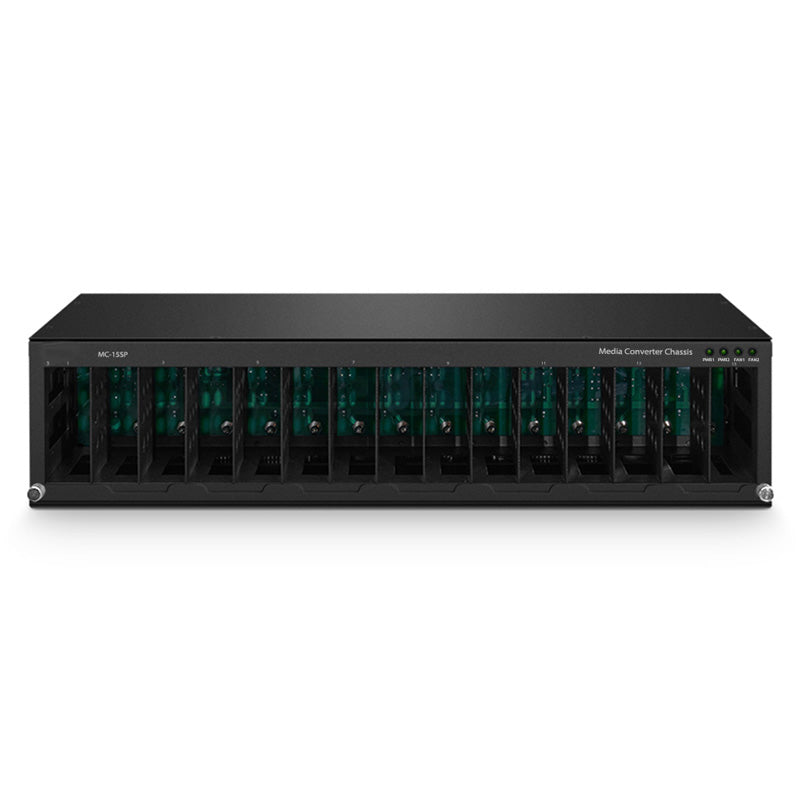

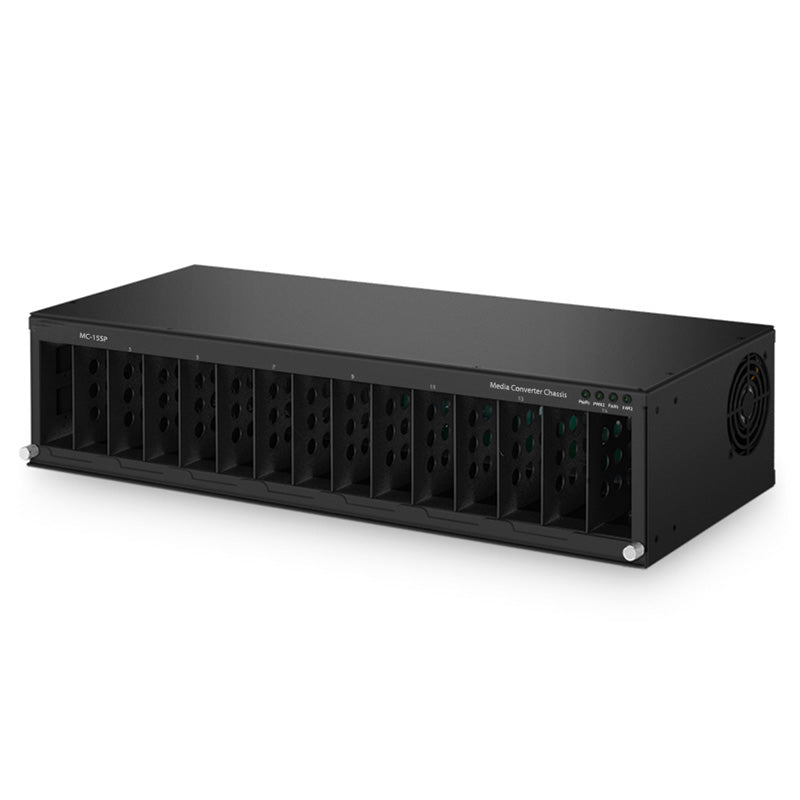

15 Slots Media Converter Chassis, 19'' Rack Mount, AC Power

The FS-MC-15SP 15-slot Rackmount chassis is specially designed to accommodate FC-UMC-1F1T, FC-UMC-1SC1T-SM, FC-UMC-1SC1T-MM, FC-UMC-1S1T and FC-UMC-1F1T-PD Media Converter for central power supply, saving space and power cables.

You can start with single media converters, and when your requirements grow bigger, you can mount a chassis to install your media converters in the chassis.

The chassis lets you install multiple media converters in an equipment rack together with the network devices for which they provide media conversion. This provides for space saving, and the cabling will look neat. The power type of this device is AC by default.

Specifications

• Number of Slots: 15

• Matching Products: FC-UMC-1F1T, UMC-1SC1T-SM; FC-UMC-1SC1T-MM, UMC-1S1T; FC-UMC-1F1T-PD

• Power Requirements: 100~240V AC, 3.3A, 50-60Hz

• Power Output: Each Slot 5V DC 1A

• Power Consumption: 10 watts / 34.1BTU (System only); 80 watts / 272BTU (Full loading)

• LED: Power 1, Fan1, Fan2

• Fan Numbers: 2

• Weight: 4.3kg

• Operating Temperature: 0 to 50°C (32 to 122°F)

• Storage Temperature: -20 to 70°C (-4 to 158°F)

• Dimensions (HxWxD): 4.06''x17.24''x7.87''(103x438x200mm), 2.4U high

• Humidity: 5%~90%RH

Connectivity Solutions

High Density 15-slot System
It is specially designed to house, organize and power up 15 media converters for central power supply, saving space and power cables.

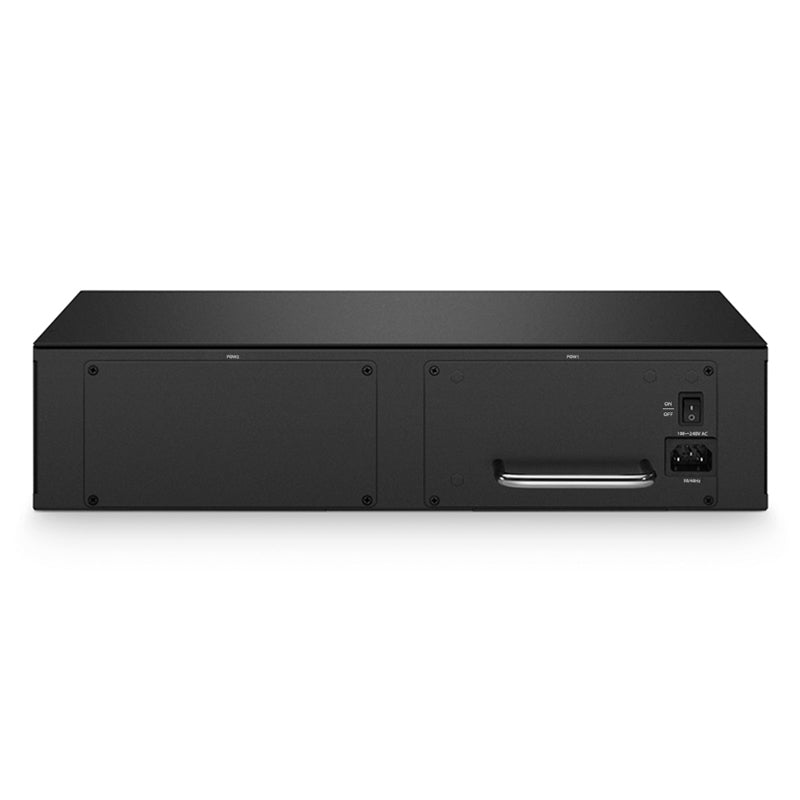

AC Power Supply and Two Fans
The chassis is equipped with one AC power supply. Two cooling fans are installed internally to stabilize the performance and extend the lifetime.

Hot-Swappable for Easy Replacement of Converter
Media converter modules are individually secured and hot-swappable, which allows installing/removing the converter without powering off the chassis.
