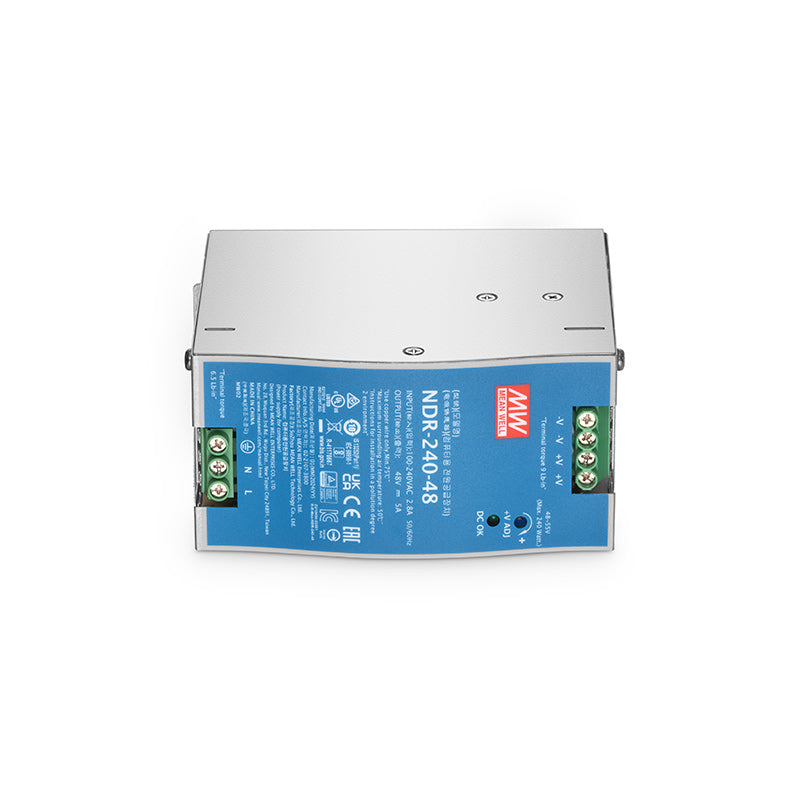

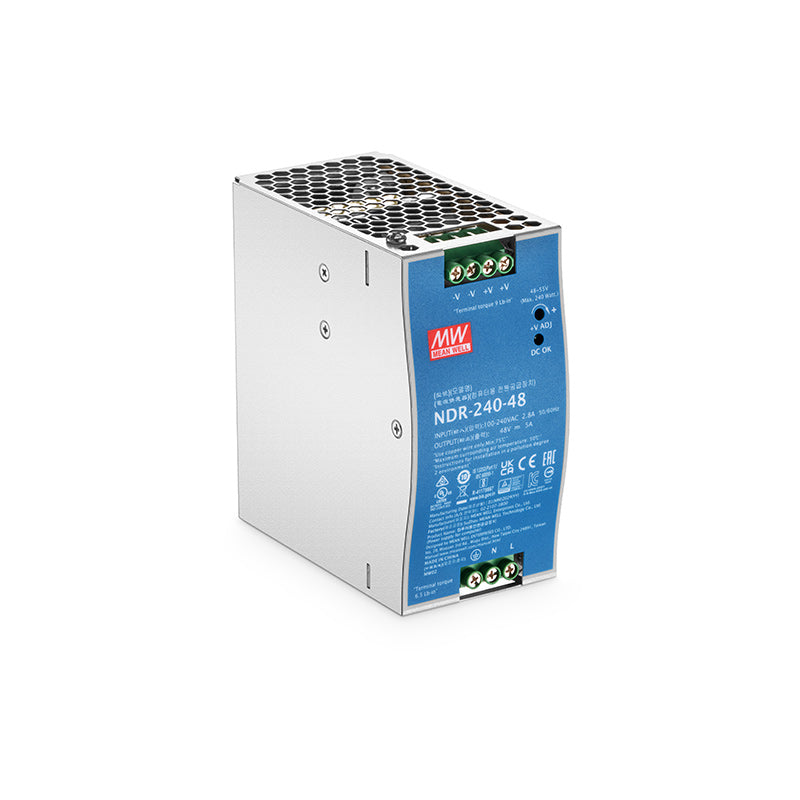

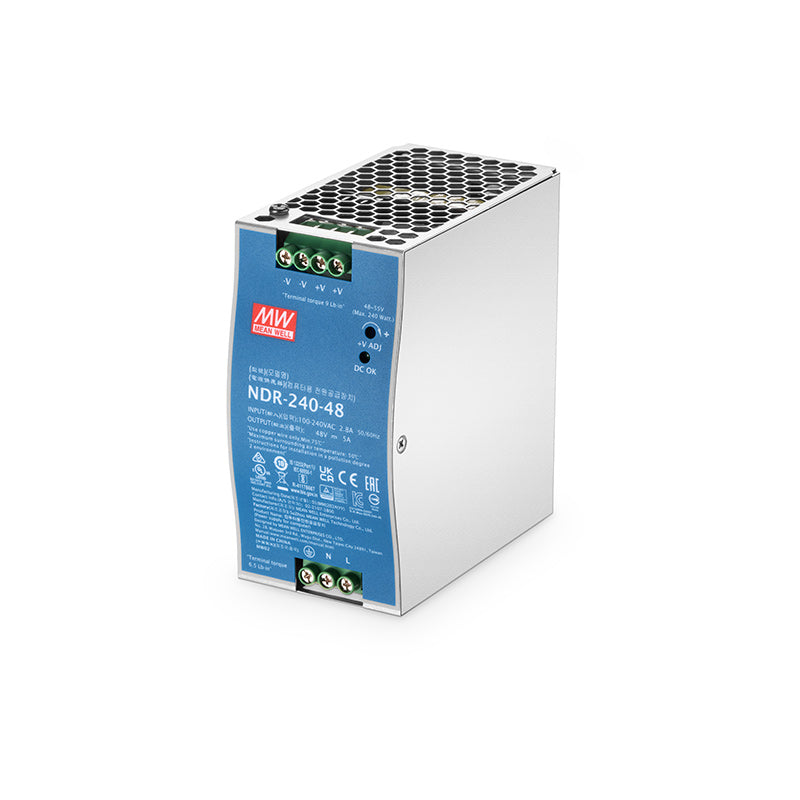

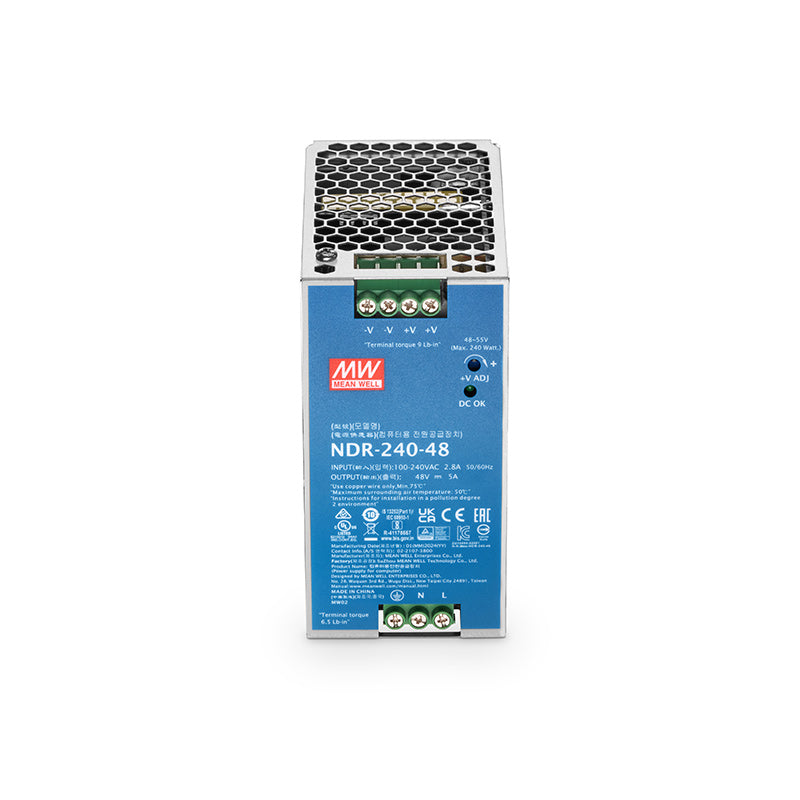

240W 48VDC Slim DIN Rail Economical Industrial Power Supply with PFC Function

The FS-NDR-240-48 slim power supply features a compact size, making it ideal for TS-35/7.5 or 15 DIN rail installation. The metal casing design enhances heat dissipation, durability, and electromagnetic compatibility, allowing it to operate reliably in harsh environments.

Cooling by natural air convection, FS-HDR-240-48 can operate in ambient temperatures ranging from -20°C to 70°C. NDR-240-48 supplies up to 240 W (48V, 5A) of power to industrial PoE equipment such as switches, IP cameras, AP, and media converters. It can be widely used in harsh environments such as industrial control systems, semi-conductor fabrication equipment, factory automation and electro-mechanical.

Note: The FS-NDR-240-48 AC-DC power supply module is compatible with FS-IES3220-8T4F-U, FS-IES3220-8T4F, FS-IES3220-4T2F, FS-TSN3220-10S-U, FS-TSN3220-10S, IES3110-8TFP-R, FS-IES3110-8TF-R, FS-IES3110-8TF, FS-IES3110-16TF, FS-IES3110-8TF-P, FS-IES3110-8TFM-P, FS-IES3110-24TF, FS-IES3110-8M12, FS-IES3100-8TF-P, FS-IES3100-8TF, FS-IES3100-8T4F-P, FS-IES3100-16TM, FS-IES2100-5FE, FS-IES2100-8FE, FS-IES5100-16TS and FS-IES5100-24TS-P switches.

Specifications

• Input Voltage Range; 90 to 264VAC; 127 to 370VDC

• Input Current: 0.88A/115VAC; 0.48A/230VAC

• Output DC Voltage: 48V

• Output Power: 240W

• Power Factor: PF>0.98/115VAC; PF>0.95/230VAC at full load

• Efficiency: 90%

• Operating Humidity: 20% to 90%

• Operating Temperature: -30 to 70°C(-22 to 158°F)

• Installation: DIN rail TS-35/7.5 or 15

• Dimensions (W x H x D): 63x 125.2x 113.5mm(2.48"x 4.93"x 4.47")


Product Highlights

• Built-in Active PFC Provides Up to 90% Efficiency

• 130% Peak Load Capability Ensure Stable Operation

• Built-in DC OK Relay Contact for Real-time Monitoring

• Short Circuit, Overload, Over Voltage, Over Temperature Quadruple Protection

• Mountable on DIN Rail TS-35/7.5 or 15

• Packaging Material: Metal
• EN55032 Class: B
• PFC: Yes
• Efficiency: 90%

Compact Design Suitable for Industrial Environments

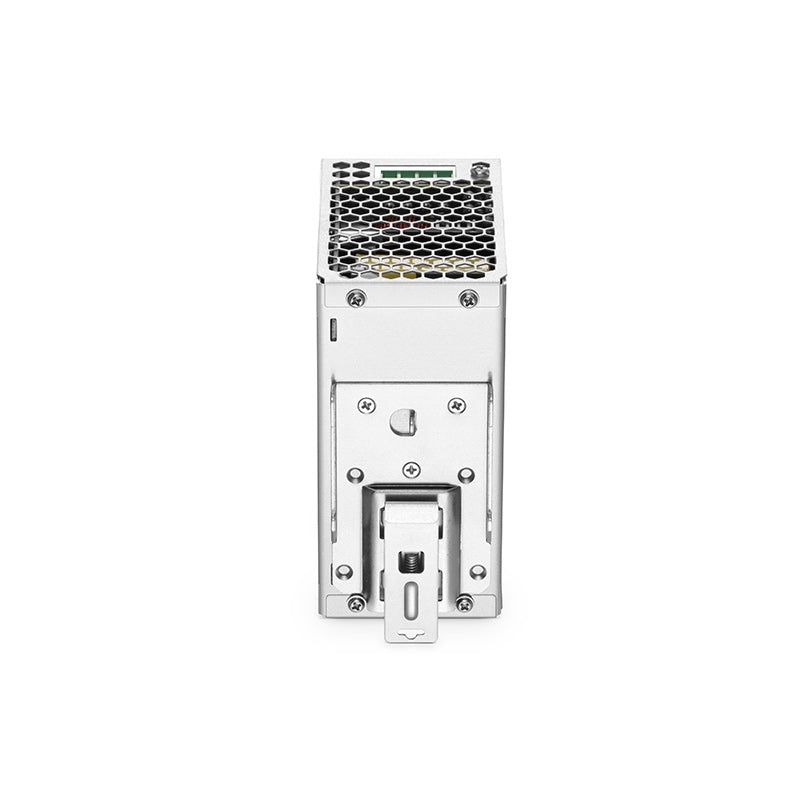

The slim design allows for installation in tight spaces, making it ideal for DIN rail TS-35 / 7.5 or 15 installation.

Supports up to 240W of Power for Industrial Devices
It provides sufficient 240W output power to industrial PoE equipment, such as industrial PoE Ethernet switches, industrial wireless access points, IP phones and IP cameras.

Power Factor Correction Ensures 90% Efficiency
By eliminating reactive power and harmonics from power lines, the active PFC improves efficiency and reduces power demand.
