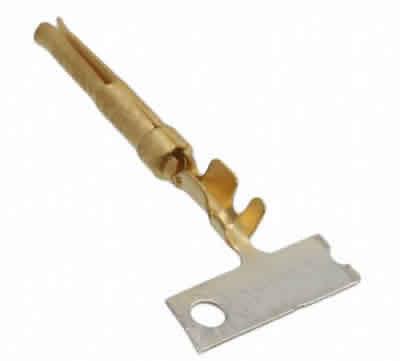

Contact Crimp Type Female Gold Flash.060 Insulation Diameter 100/Pk, RoHS
Move your mouse over image or click to enlarge

Contact Crimp Type Female Gold Flash.060 Insulation Diameter 100/Pk, RoHS

TE Connectivity Part No.: 7-66504-0

  • $ 28.46 or
  • per pack


Features:

  • Industry Standards.RoHS/ELV Compliance: RoHS compliant, ELV compliant
  • Industry Standards.Lead Free Solder Processes: Not relevant for lead free process
  • Packaging Features.Packaging Method: Loose Piece
  • Product Type Features.Product Type: Contact
  • Contact Features.Contact Type: Socket
  • Product Type Features.Insulation Support: Yes
  • Packaging Features.Packaging Quantity: 100/Box
  • Product Type Features.Grade: Standard
  • Product Type Features.Product Series: HDP-20 (Crimp Snap)
  • Termination Features.Solder Tail Contact Plating: Gold Flash over Nickel
  • Contact Features.Contact Base Material: Phosphor Bronze
  • Contact Features.Contact Plating, Mating Area, Material: Gold Flash over Palladium Nickel or Gold (30) over Nickel
  • Body Features.Wire Range (mm [AWG]): 0.2 - 0.6 [24-20]
  • Body Features.Used With: CPC Connectors
  • Product Type Features.Wire Insulation Diameter (mm [in]): 1.27 1.52 [0.050 0.060]
  • Mechanical Attachment.Contact Retention in Housing: Crimp Snap-In
