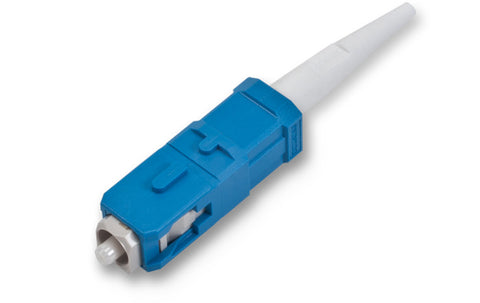

SC Connector, Single-mode (OS2), ceramic ferrule, blue housing, white boot
Standards
| Intermateability | Compliant with TIA/EIA 604-3 |
|---|
General Specifications
| Technology | Field Polish (anaerobic) |
|---|---|
| Keyed | No |
| Packaging | Single Pack |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Fiber Category | Single-mode (OS2) |
Design - Connector
| Connector Type | SC |
|---|---|
| Ferrule | Ceramic |
| Housing Material | Composite |
| Housing Color | Blue |
| Boot Color | White |
Mechanical Specifications - Connector
| Temperature Cycling | ? 0.3 dB IL, -40ø to +75øC, 21 cycles |
|---|
Optical Specifications - Connector
| Insertion Loss, Typical | ? 0.2 dB |
|---|---|
| Insertion Loss, Max. | ? 0.75 dB |
| Reflectance | ? -40 dB |
Chemical Characteristics
| RoHS | Free of hazardous substances according to RoHS 2002/95/EG |
|---|
Shipping Information
| Units per Delivery | 1/1 |
|---|---|
| Package Contents | Connector, Shroud, Crimp Band (1.6/2.0 mm), Crimp Band (3.0 mm), Boot (900 æm), Boot (2.0 mm), Boot (3.0 mm) |
