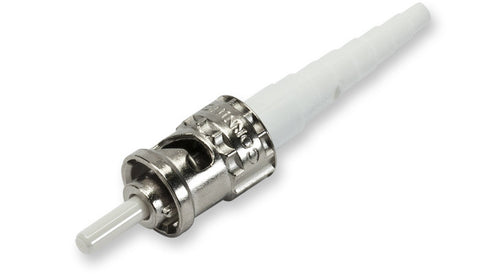

ST Compatible Connector, Single-mode (OS2), ceramic ferrule, metal hardware, single pack, metal
Standards
| Intermateability | Compliant with TIA/EIA 604-2 |
|---|
General Specifications
| Technology | Field Polish (anaerobic) |
|---|---|
| Keyed | No |
| Packaging | Single Pack |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Fiber Category | Single-mode (OS2) |
Design - Connector
| Connector Type | ST Compatible |
|---|---|
| Ferrule | Ceramic |
| Housing Material | Metal |
| Housing Color | Metal |
| Boot Color | White |
Mechanical Specifications - Connector
| Temperature Cycling | 0.3 dB IL, -40ø to +75øC, 21 cycles |
|---|
Optical Specifications - Connector
| Insertion Loss, Typical | 0.2 dB |
|---|---|
| Insertion Loss, Max. | 0.75 dB |
| Reflectance | -40 dB |
Chemical Characteristics
| RoHS | Free of hazardous substances according to RoHS 2002/95/EG |
|---|
Shipping Information
| Units per Delivery | 1/1 |
|---|---|
| Package Contents | Connector, Crimp Band (1.6/2.0 mm), Crimp Band (3.0 mm), Boot (900 æm), Boot (2.0 mm), Boot (3.0 mm) |
