98 Channel C-Band Hand Held Mini Spectrum Analyzer
98 Channel C-Band Hand Held Mini Spectrum Analyzer
98 Channel (14-62.5), DWDM Optical Channel Analyzer (OCA)
Mini-Cat Series, 98 Channel (14-62.5), DWDM Optical Channel Analyzer (OCA)
FEATURES
•Fast Real Time with <1/2 second Update
• Bar Graph, Table Displays & 6GHz Line Graph
• Auto Test Zooms in on Active Channels
• Power Meter and VFL Options
• Optional Auto Center/Pass/Fail Video Inspection System
• Solid State Optics-No Moving Parts
• Up To 98 Channels
• 50 or 100 GHz
• Pass/Fail Thresholds
• User Setup Screen
• 4” Touch Color Display
• Rugged Case w/Impact Resistant Boot
• USB/PC Port with Included PC Certification Software
• Stores up to 1000 Tests
• USB/PC Port
The OMA-80 Hand Held Optical Spectrum Analyzer is one of the most rugged and affordable full featured Mini OSAs on the market. This C-band Hand-Held OSA is available in up to 98 channels with 50 and 100 GHz channel spacing and a line graph mode with 6 GHZ slicing. The OMA-80 is simple and fast to operate with its touch screen operation and twice a second scan. It offers high end features such as power tilt monitoring for DWDM channel equalization.
With a full set of selectable scale limits and thresholds, the OMA-80 makes zeroing in on channel measurements easy. For flexibility the channel numbers are selected
in wavelength or frequency. The information is displayed in graph, 6GHz line graph and table mode on the 4” bright auto rotating color touch screen.
The OMA-80 allows users to set pass/fail thresholds and can store up to 1000 tests that can be downloaded via the USB PC port. Documentation is fast and easy with the included certification software. The onboard Help system assists new users in parameter setup and file manipulation.
The OMA-80 offers an IEC61300-3-35 auto center/pass/fail video inspection feature for use with the optional VIS-300 Video Probe.

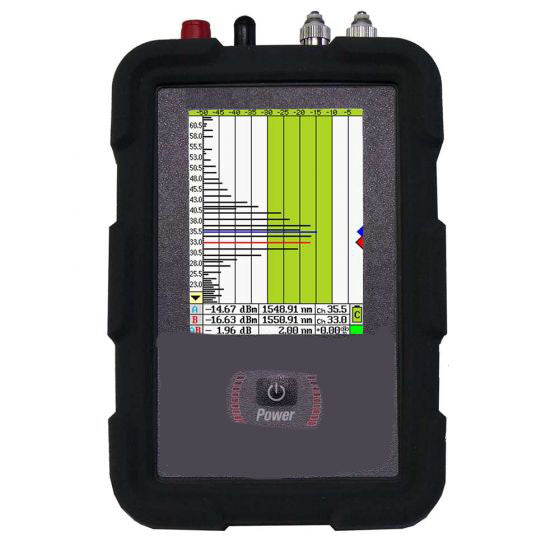

OMA-80 HAND HELD OSA
OSA SPECIFICATIONS
Wavelength Range: Channels 14 - 62.5 (196.25THz - 191.4THz) (1527.6 -1566.31nm)
Channel Spacing: 50GHz, 100GHz
Wavelength Accuracy: ±0.1nm
Channel Power Range: +10dBm to -50dBm
Absolute Accuracy: ±1 dB
Max Composite Power: +28 dBm
PDL: ±0.15dB
Optical Rejection Ratio: 40dBc (@50GHz)
Measurement Time: < 1/2 Second
Readout Resolution: 0.01dB
Return Loss: >40dB
Optical Interface: SC/APC or SC/UPC

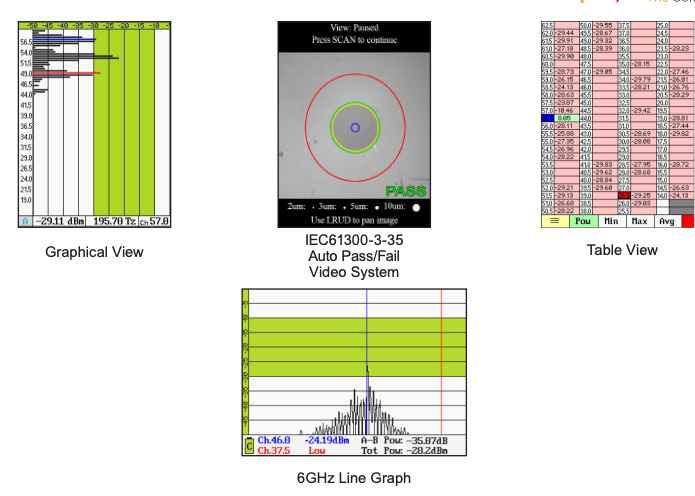

Graphical Display: Bar graph. 6GHz line graph and table view
Display: 4 in. touch color TFT
Dimensions: 6.25” L x 4.125” W x 1.875” H (159mm L x 105mm W x 48mm H)
Weight: 1.5 lbs (0.7 kg)
Battery: Li-pol, 10hr typ.
Power Requirement: USB 5V, 1A
Operating Temperature: -10°C to 40°C
Storgage Temperature: -20°C to 60°C
Accessories Included: 5V, 2.1A USB Wall Charge with USB cable, SC/APC or SC/UPC adapters, 2 stylus, CertSoft Software Suite, manual and rubber boot
POWER METER SPECIFICATIONS
Detector Type: InGaAs
Connector Type: ST, FL, SC, 1.25mm and 2.5mm Interchangeable
Dynamic Range: +5 to -77dB (CATV - +25 to -57dB)
Calibrated Wavelengths: 850,1300,1310,1490,1550 and 1625nm or 1650nm
Power Measurement Uncertainty: ± 0.18 dB under reference conditions, ± 0.25 dB from 0 to -65 dBm, ± 0.35 dB from 0 to +5 dBm and from -65 to -77 dBm
Units of Measurement: dBm, dB
Resolution: .01 dB
VFL SPECIFICATIONS
Emitter Type: Laser
Wavelength: 650nm ± 5nm
Laser Safety Class: Class IIFDA21 CFR1040.10 & 1040.11 IEC 825-1: 1993
Connector Type: 2.5mm Universal
Output Power: 1mW Max.
ORDERING INFORMATION
OMA-80C-A: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/APC Adapters. Includes Video Inspection Port for use with the Video Inspection Probe (Sold Separately)
OMA-80C-A-PM: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/APC Adapters. Includes Video Inspection Port for use with the Video Inspection Probe (Sold Separately) and Power Meter
OMA-80C-A-VFL: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/APC Adapters. Includes Video Inspection Port for use with the Video Inspection Probe (Sold Separately) and VFL
OMA-80C-A-PM-VFL: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/APC Adapters with Power Meter and VFL
OMA-80C-U: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/UPC Adapters. Includes Video Inspection Port for use with the Video Inspection Probe (Sold Separately)
OMA-80C-U-PM: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/UPC Adapters. Includes Video Inspection Port for use with the Video Inspection Probe (Sold Separately) and Power Meter
OMA-80C-U-VFL: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/UPC Adapters. Includes Video Inspection Port for use with the Video Inspection Probe (Sold Separately) and VFL
OMA-80C-U-PM-VFL: 98 Channel, C Band Hand Held Optical Spectrum Analyzer with SC/UPC Adapters with Power Meter and VFL
VIS-300: Video Inspection Probe
