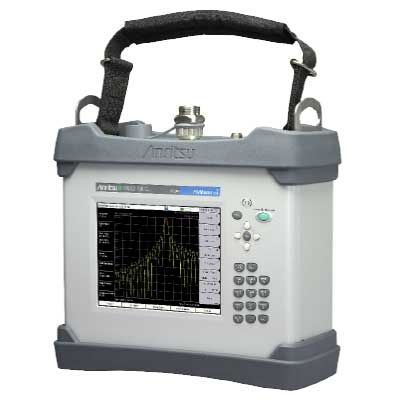

Anritsu Passive Intermodulation Analyzer PIM Master Base Unit

• PIM vs. Time, Swept PIM, Noise Floor, Distance-to-PIM
• 3rd, 5th, and 7th order intermodulation products detected
• 2-Port LTE 700 MHz PIM testing (with option 703)
• Test Power: 20 dBm to 46 dBm
• Residual PIM: –125 dBm typical

Anritsu introduces the first fully integrated Passive Intermodulation (PIM) Analyzer plus Cable and Antenna Analyzer(Option 331) suitable for commissioning and maintaining global wireless networks. This high-performance, battery-operated unit allows operators to fully characterize infrastructure quality by measuring Return Loss, VSWR, Cable Loss, Passive Intermodulation, Distance-to-Fault, Distance-to-PIM, and 2-port LTE 700 MHz with option 703 in a single test instrument.
