E-12-163 YAG Air-Spaced Achromatic Focusing Doublets

Fosco Connect Part No.: E-12163

  • $ 1,025.00 or

E-12163 YAG Air-Spaced Achromatic Focusing Doublets

Product Drawing

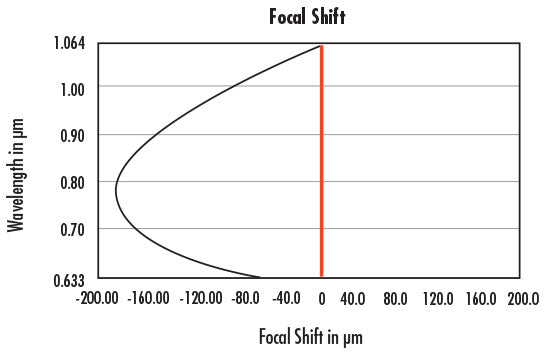

Effective Focal Length EFL (mm): 80.00 @ 1064nm
Clear Aperture CA (mm): 27.0
Center Air Spacing (mm): 1.0
Surface Quality: 20-10
f/#: 3.0
Coating: Dual V-Coat (632.8 and 1064nm)
Coating Specification: Rabs <0.5% @ 1030 - 1090nm
Rabs <1.0% @ 632.8nm Housing Diameter (mm):
36 ±0.25 Housing Length (mm):16.1 ±0.2
Mounting Threads: Input: M34 x 0.75
Output: M34 x 0.75
Construction: Anodized Aluminum Housing
Type: Focusing Achromat
Design Wavelength DWL (nm): 632.8, 1064
Damage Threshold, Pulsed: ≥10 J/cm2 @ 1064nm, 20Hz, 10ns (typical)
Transmission (%): ≥99
Working Distance (mm): 70.88
Transmitted Wavefront Error, RMS: λ/4 On central 18mm

Product Family Description

  • Color Corrected at 632.8nm and 1064nm
  • Optimized to Reduce Spherical Aberration
  • Minimizes Spot Size for Materials Processing

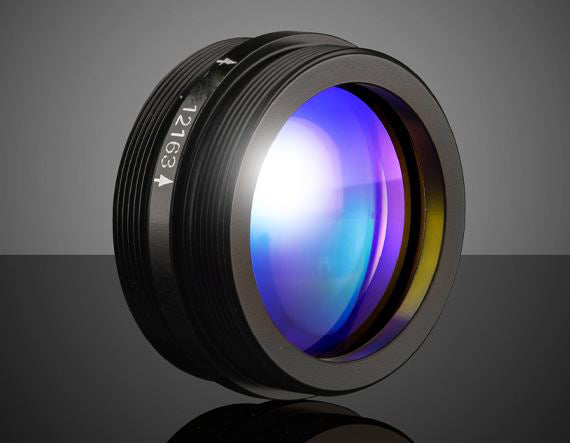

TECHSPEC® Nd:YAG Air-Spaced Achromatic Focusing Doublets achieve diffraction limited performance at 1064nm. These lenses are designed for use with high power Nd:YAG laser systems utilizing a HeNe laser for alignment and also for laser welding and processing of aluminum, steel, and plastics. Filling the performance gap between more economical single element spherical lenses with worse performance and aspheres with diffraction limited performance, these lenses provide achromatic performance that single lens element solutions cannot. TECHSPEC® Nd:YAG Air-Spaced Achromatic Focusing Doublets are ideal in aluminum, plastic, and other material laser processing applications.
