E-12-931 11.2mm CA, 75mm FL, Mounted MgF2 Coated Achromatic Doublet Lens
E-12931 11.2mm CA, 75mm FL, Mounted MgF2 Coated Achromatic Doublet Lens
f/#: 6.00
Numerical Aperture NA: 0.08
Coating: MgF2 (400-700nm)
Type: Achromatic Lens
Wavelength Range (nm): 400 - 700
Back Focal Length BFL from Housing (mm): 71.49
Bevel: Protective bevel as needed
Clear Aperture CA (mm): 11.2
Coating Specification: Ravg ≤1.75% @ 400 - 700nm
Edge Thickness ET (mm): 3.97
Focal Length Specification Wavelength (nm): 587.6
Focal Length Tolerance (%): ±2
Radius R1 (mm): 46.44
Radius R2 (mm): -33.77
Radius R3 (mm): -95.94
Surface Quality: 40-20
Lens Included: #E-32882
Mount Included: #E-54623
Mount Diameter (mm): 30.0
Extension Length (mm): 14.0
Total Length (mm): 18.0
Thread Type: C-Mount
Power (P-V) @ 632.8nm: 1.5λ
Irregularity (P-V) @ 632.8nm: λ/4
Product Family Description

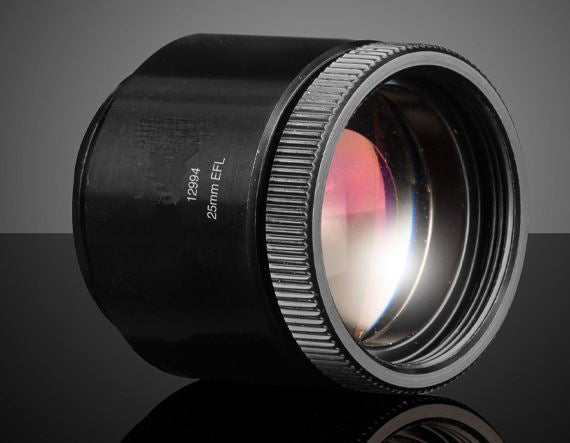

- Pre-mounted in Engraved C-Mount Housings
- Simplify Integration into Optical Systems
- Less than 1.75% Reflectance per Surface @ 400 - 700nm
TECHSPEC® Mounted MgF2 Coated Achromatic Lenses feature our TECHSPEC MGF2 Coated Achromatic Lenses pre-mounted in C-Mount housings to simplify their integration into optical systems. Designed for the visible spectrum, these lenses are coated with a single layer MgF2 anti-reflection coating to increase light transmission. Each C-Mount housing is laser engraved with the stock number and focal length for easy identification. TECHSPEC Mounted MgF2 Coated Achromatic Lenses are ideal for C-Mount optical systems that require on-axis spherical and chromatic aberrations to be eliminated.
