E-13-008 22mm CA, 85mm FL, Mounted MgF2 Coated Achromatic Doublet Lens
E-13008 22mm CA, 85mm FL, Mounted MgF2 Coated Achromatic Doublet Lens
f/#: 3.4
Numerical Aperture NA: 0.15
Coating: MgF2 (400-700nm)
Type: Achromatic Lens
Wavelength Range (nm): 400 - 700
Back Focal Length BFL from Housing (mm): 75.91
Bevel: Protective bevel as needed
Clear Aperture CA (mm): 22.0
Coating Specification: Ravg ≤1.75% @ 400 - 700nm
Edge Thickness ET (mm): 6.05
Focal Length Specification Wavelength (nm): 587.6
Focal Length Tolerance (%): ±2
Radius R1 (mm): 55.68
Radius R2 (mm): -38.37
Radius R3 (mm): -146.45
Surface Quality: 40-20
Lens Included: #E-45213
Mount Included: # E-56354
Mount Diameter (mm): 30.0
Extension Length (mm): 24.2
Total Length (mm): 28.2
Thread Type: C-Mount
Power (P-V) @ 632.8nm: 1.5λ
Irregularity (P-V) @ 632.8nm: λ/4
Product Family Description
- Pre-mounted in Engraved C-Mount Housings
- Simplify Integration into Optical Systems
- Less than 1.75% Reflectance per Surface @ 400 - 700nm

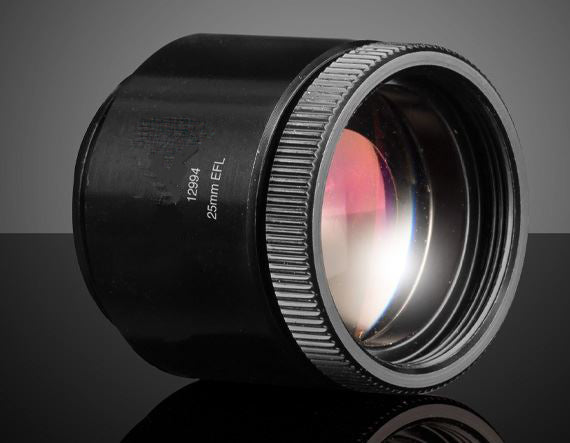

TECHSPEC® Mounted MgF2 Coated Achromatic Lenses feature our TECHSPEC MGF2 Coated Achromatic Lenses pre-mounted in C-Mount housings to simplify their integration into optical systems. Designed for the visible spectrum, these lenses are coated with a single layer MgF2 anti-reflection coating to increase light transmission. Each C-Mount housing is laser engraved with the stock number and focal length for easy identification. TECHSPEC Mounted MgF2 Coated Achromatic Lenses are ideal for C-Mount optical systems that require on-axis spherical and chromatic aberrations to be eliminated.
