E-46-003 1:1.33 with 30mm and 40mm EFL Achromats, 30mm Achromatic Pair

Fosco Connect Part No.: E-46003

  • $ 375.00 or

E-46003 1:1.33 with 30mm and 40mm EFL Achromats, 30mm Achromatic Pair

Product MFG2 Coating Curve

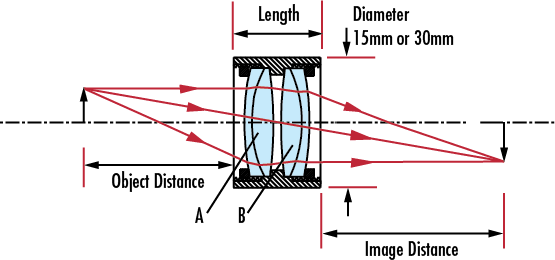

Product Drawing

Clear Aperture CA (mm): 22.0
Center Air Spacing (mm): 1.57
Surface Quality: 40-20
Working f/#: f/1.74
Coating: MgF2 (400-700nm)
Coating Specification: Ravg ≤1.75% @ 400 - 700nm
Effective Focal Length EFL A (mm): 30.00
Effective Focal Length EFL B (mm): 40.00
Housing Diameter (mm): 30 +0.0/-0.10
Housing Length (mm): 34 ±0.2
Lens Edge Spacing at Mount (mm): 8
Magnification: 1:1.33
Object Distance (mm): 19.19
Image Distance (mm): 29.31
Construction: Achromat Pair in Anodized Aluminum Housing
Type: Relay Lens
Wavelength Range (nm): 400 - 700

Product Family Description

  • 15mm and 30mm Diameter Options
  • AR Coated Lenses
  • Mounted Achromatic Pairs Kits Available

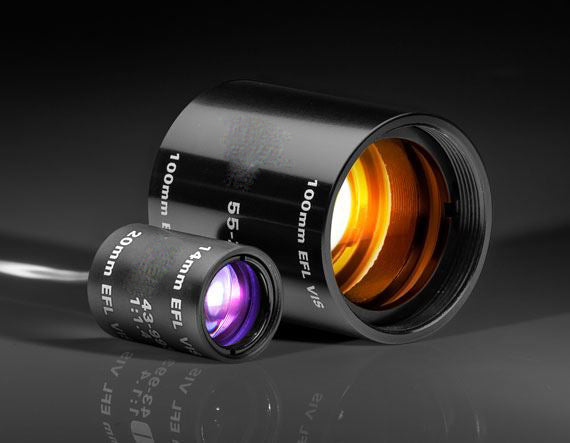

Our 15.0mm and 30.0mm Mounted Achromatic Pairs combine our popular TECHSPEC® achromats into common configurations used for relay and projection applications. Packaged in a slim-line aluminum housing, each pair is ready for integration into a host of OEM applications, eliminating the need to handle loose optics. Our 15.0mm pairs can be coupled into our C-mount components using our Helicoid Barrel Accessory. Each lens has also been oriented for optimum system performance. All lenses AR coated. Lower f/# pairs may not be ideal for imaging applications depending on the performance requirements. Cylinder lenses can be incorporated into empty barrels in order to generate lines or sheets of light.
