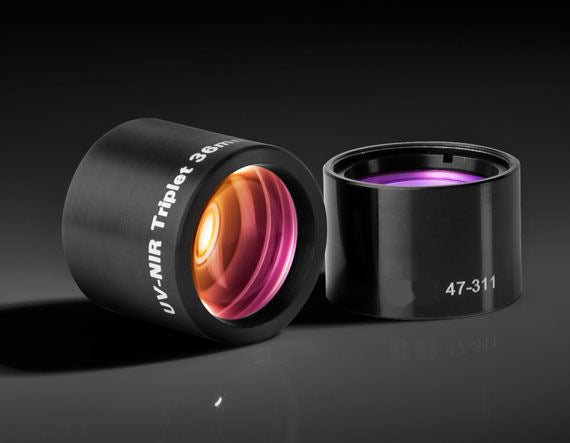

E-65-029 36mm EFL Uncoated, UV-to-NIR Corrected Triplet

Fosco Connect Part No.: E-65029

  • $ 3,120.00 or

E-65029 36mm EFL Uncoated, UV-to-NIR Corrected Triplet

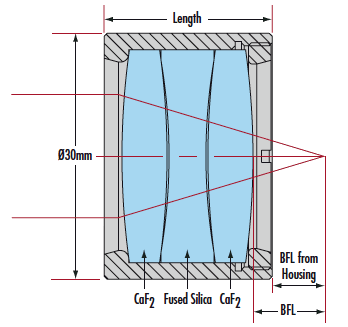

Product Drawing

Effective Focal Length EFL (mm): 36.00
Focal Length Tolerance (%): ±0.5 @ 248nm
Back Focal Length BFL (mm): 24.98
Back Focal Length BFL from Housing (mm): 24.50
Clear Aperture CA (mm): 22.50
CaF2 / Fused Silica / CaF2
Surface Quality: 60-40
f/#: 1.6
Numerical Aperture NA: 0.31
Coating: Uncoated
Effective Focal Length EFL @ 248nm (mm): 36.00
Housing Diameter (mm): 30.00 ±0.05
Housing Length (mm): 27.00 ±0.05
Type: Achromatic Triplet Lens
Wavelength Range (nm): 193 - 1000

Product Family Description

  • Calcium Fluoride and UV Fused Silica Elements
  • Broadband Color-Corrected Design from 193nm to 1000nm
  • Ideal for Fluorescence and Spectroscopy Applications

Designed with broadband applications in mind, our UV-to-NIR corrected lenses provide a consistent focal length (see chromatic shift information below) for wavelengths ranging from 193nm to 1000nm. Manufactured with premier grades of Calcium Fluoride and Fused Silica, these infinite-conjugate triplets are perfect for imaging applications utilizing a wide spectrum of wavelengths. Typical uses include fluorescence research in which the emitted light is in the visible and near infrared regions of the spectrum or in dual-pass systems in which the same lens is used to illuminate the excitation material as well as collect the emissions from it. Elements are uncoated and mounted in a 30mm diameter aluminum housing. Antireflection coatings available, however a minimum order quantity will apply.



Sold Out
