FIB1-232-SC20BF - RS-232 synchronous serial interface to fiber media converter, singlemode BiDi , 20Km B type, SC connector
FIB1-232-SC20BF - RS-232 synchronous serial interface to fiber media converter, single mode BiDi, 20Km B type, SC connector.
* - Please note that this media converter comes by default with an RS-232 DB25 female connector cable. If a male type cable is needed, please contact us. It also does include an AC 90-240V power adapter in its carton package.
Product description

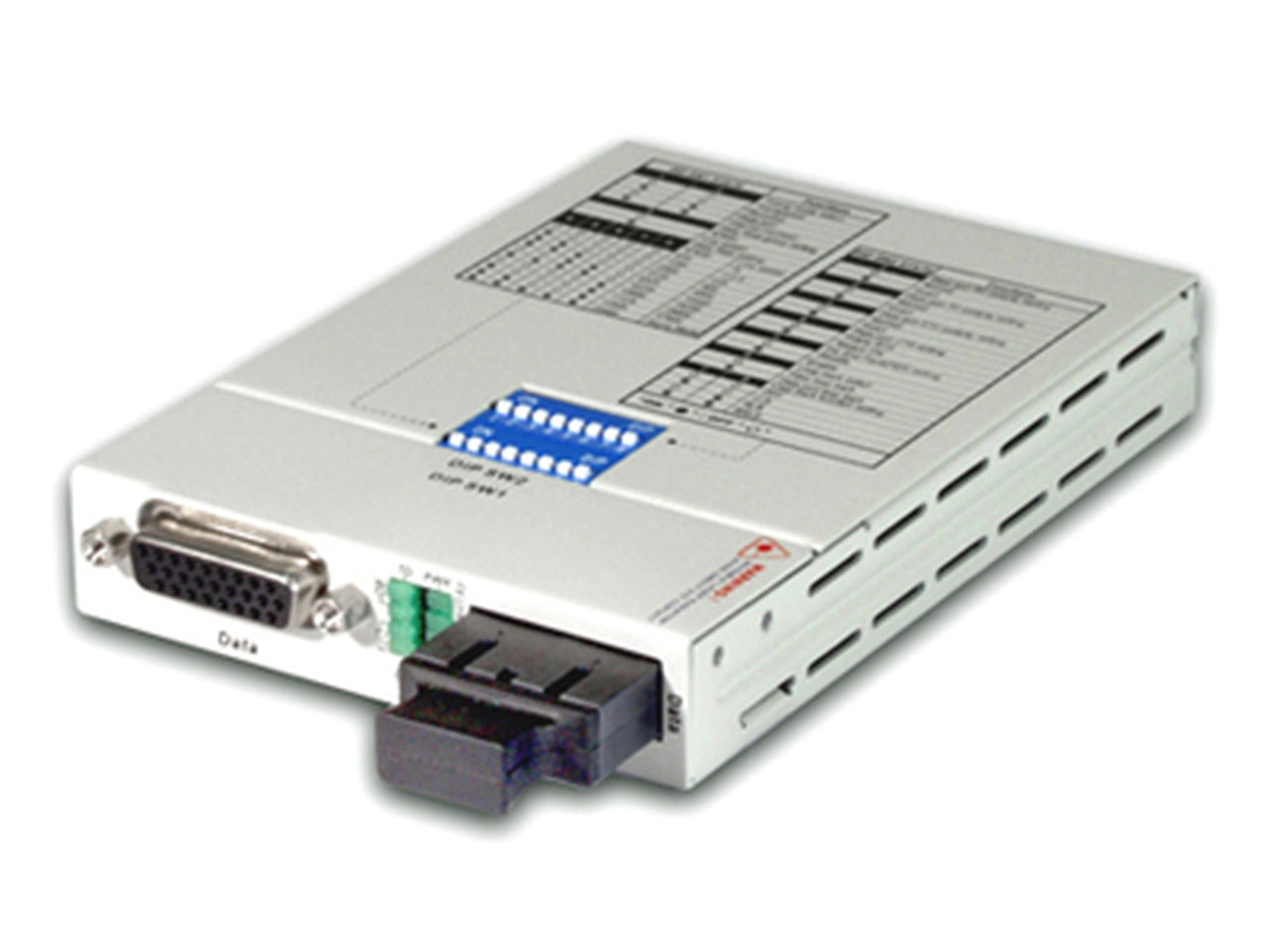

The FIB1-232 is a media converter for RS-232 high-speed synchronous data interface transmission over optical fiber media.
The SC20A model MUST be paired with the SC20B model as they are using complementary wavelengths.
FIB1-232 model is available in a wide range of SC type optical modules, covering operating distances from 2Km up to 120Km. The media converter is also available for WDM single strand fiber optic connections in 4 different flavors.
Product Specification Sheet
Technical specifications
| Interfaces: | HD26 connector for synchronous port with DB25 cable for RS-232 type interface and SC duplex 155M fiber port |
| Operating wavelength: | T:1550/R:1310nm over single-mode single strand BiDi 9/125 fiber |
| Operating distance: | 20Km on a single strand of 9/125um SM fiber |
| Optical connector: | SC (ST or FC available by special order) |
| Front LEDs: | PWR, Fiber Link, TD, RD, RTS, CTS, DCD, Test mode |
| Power: | External 90-260V AC switching adapter 9VDC@1A with NEMA1-15(2 blades only), US type main plug |
| Temperature: | 0~50°C (Operating); 0~70°C (Storage) |
| Humidity: | 20-80% non condensing (Operating); 0-90% (Storage) |
| Consumption: | less than 5W |
| Dimensions(WxDxH): | 85.6mm x 122.6mm x 20mm |
| Weight: | 310g (without AC adapter) |
| Compliance: | CE, FCC Class A |
| MTBF: | 65,000 hours |
Fiber power budget according to available models
| Model | Distance | Lambda | Min. Output (dBm) | Sensitivity (dBm) | Power Budget (dB) |
| FIB1-232-SC2F | 2Km | 1310nm | -20 | -31 | 11 |
| FIB1-232-SC15F | 15Km | 1310nm | -24 | -35 | 11 |
| FIB1-232-SC80F | 80Km | 1550nm | -5 | -34 | 29 |
| FIB1-232-SC120F | 120Km | 1550nm | 0 | -35 | 35 |
| FIB1-232-SC20AF | 20Km | Tx:1310nm Rx:1550nm | -15 | -32 | 17 |
| FIB1-232-SC20BF | 20Km | Tx:1550nm Rx:1310nm | -18 | -32 | 14 |
| FIB1-232-SC60AF | 60Km | Tx:1310nm Rx:1550nm | -5 | -34 | 29 |
| FIB1-232-SC60BF | 60Km | Tx:1550nm Rx:1310nm | -5 | -34 | 29 |
