Gigabit Ethernet 10/100/1000BaseTx to 1000Base-SX fiber media converter - WebSmart managed
Move your mouse over image or click to enlarge

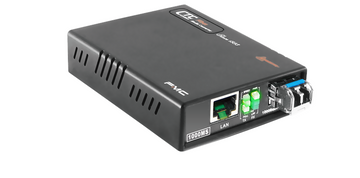

Gigabit Ethernet 10/100/1000BaseTx to 1000Base-SX fiber media converter - WebSmart managed

CTC Union Part No.: FMC-1000ES-MM

  • $ 103.00 or


Product description
The FMC series of media converters are noticed for their simplicity: no management features, guaranteed reliability and extremely affordable cost.

FMC-1000ES-MM Gigabit converter is a bundle between and FMC-1000MS WebSmart managed converter and an SFP 1.25G 1000Base-SX optical transceiver.

The unit has one RJ-45 copper port with auto-negotiation 10/100/1000 and MDI/MDI-X features for the Gigabit Ethernet copper interface.

Even without the SNMP management support, FMC series support IP based web management andLink-Fault-Passthrough function (LFP- an extremely useful feature to easily debug faulty fiber links),Far-End-Faultfunction (FEF) and acts on a Store-and-Forward switching platform.

Used with their compatibleFMC-CH08fiber optic chassis they can be aggregated up to 16 units in a 19" wide and 2U height space only.

FMC series offer the same ability to be aggregated in a the centralFMC-CH08chassis, like their FIB1 managed counterparts.

In an always changing and growing networking environment, such a versatile feature allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters.
Technical specifications

Copper interface: RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX compliant and IEEE 802.3ab 1000Base-T compliant
Optical interface: 1000Base-SX, 850nm, dual LC connector
Ethernet interface: Supports 10/100/1000Base-T/TX, Full, Half duplex n-way (Auto-Negotiation). Supports Full, Half duplex, 10/100/1000 speed manual selection. Transmission Packet Rate for 10/100/1000Base-T/TX : 14880 per second /148800/1488000 per second. Copper TP cable 4 pair Cat. 5, 5e or 6 UTP
Features: FEF (Far-End-Fault) and LFP (Link-Fault-Pass through)
Fiber operating distance: 550m for 50/125um fiber and 275m for 62.5/125um fiber
Optical connector: dual LC connector
Front LEDs: PWR, LLF, Fiber Link, TP Link, Duplex, Speed
Power: External 90-260V AC switching adapter 9VDC@1A with NEMA1-15(2 blades only), US type main plug
Temperature: 0 5°C (Operating); 0 7°C (Storage)
Humidity: 20 80% non condensing (Operating); 0 90% (Storage)
Consumption: less than 4W
Dimensions(WxDxH): 73mm x 108mm x 23mm
Weight: 160g (without AC adapter)
Compliance: FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001
MTBF: 65,000 hours

Fiber power budget according to available models

(highlighted model is one available for purchase on this page)

Model Distance Lambda Min. Output (dBm) Sensitivity (dBm) Power Budget (dB)
FMC-1000ES-MM 550m 850nm -9.5 -18 8.5
FMC-1000ES-XR 2Km 1310nm -9 -19 10
FMC-1000ES-SM10 10Km 1310nm -9.5 -20 10.5
FMC-1000ES-SM40 40Km 1310nm -4 -24 20
FMC-1000ES-SM50 50Km 1550nm -4 -24 20
FMC-1000ES-SM80 80Km 1550nm 0 -24 24
FMC-1000ES-SM120 120Km 1550nm 0 -30 30
FMC-1000ES-WA10 10Km Tx:1310nm Rx:1550nm -9 -21 12
FMC-1000ES-WB10 10Km Tx:1550nm Rx:1310nm -9 -21 12
FMC-1000ES-WA20 20Km Tx:1310nm Rx:1550nm -8 -23 15
FMC-1000ES-WB20 20Km Tx:1550nm Rx:1310nm -8 -23 15
FMC-1000ES-WA40 40Km Tx:1310nm Rx:1550nm -3 -23 20
FMC-1000ES-WB40 40Km Tx:1550nm Rx:1310nm -3 -23 20
FMC-1000ES-WA60 60Km Tx:1310nm Rx:1550nm 0 -24 24
FMC-1000ES-WB60 60Km Tx:1550nm Rx:1310nm -2 -25 23
