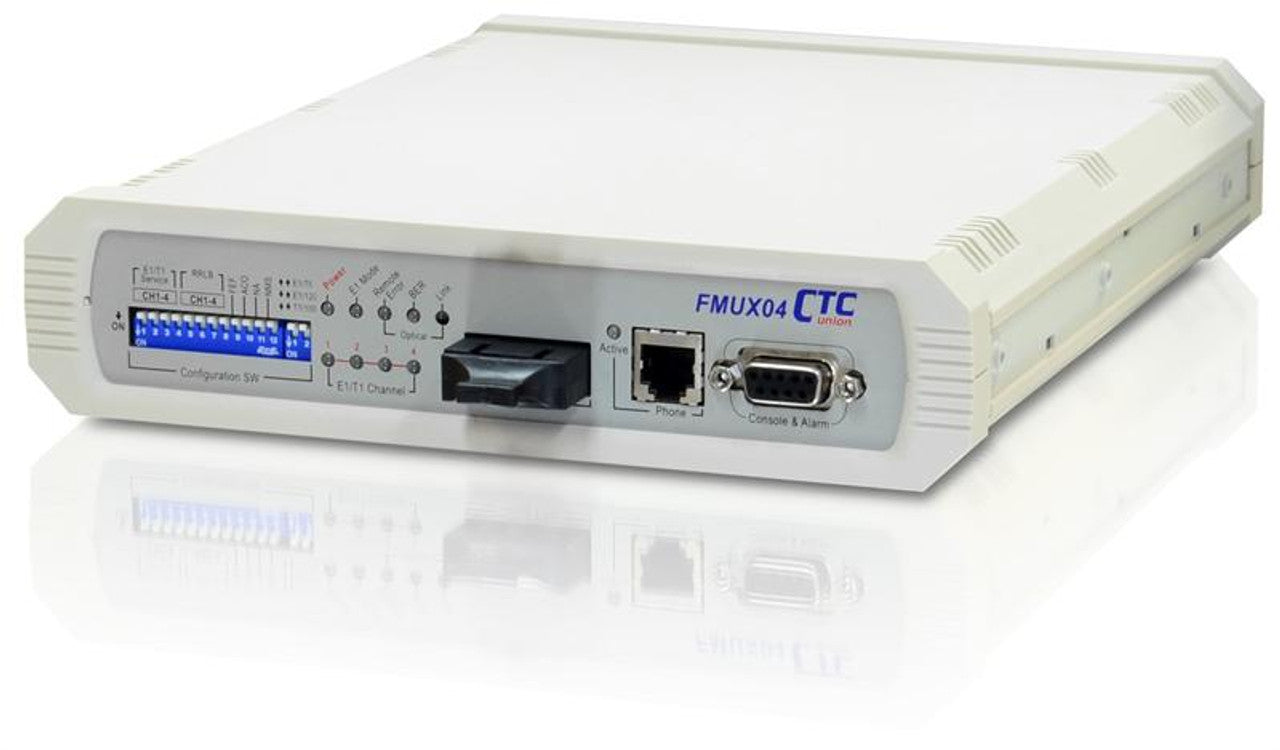

Low cost 4 E1/ T1 Fiber Optic Multiplexer - AC powered

CTC Union Part No.: FMUX04AC

  • $ 295.00 or

Product description
The FMUX04 model is perfect choice for small capacity, budget oriented applications. FMUX04 was developed with customer requests in mind: a very low cost solution, still with optional SNMP management support, desktop but also rack mountable, only 4T1/E1 and orderwire interfaces besides the fiber optic port.
FMUX04 is already a huge success. Telephone companies, especially expanding mobile telephone companies are using FMUX04 to build their network coverage.

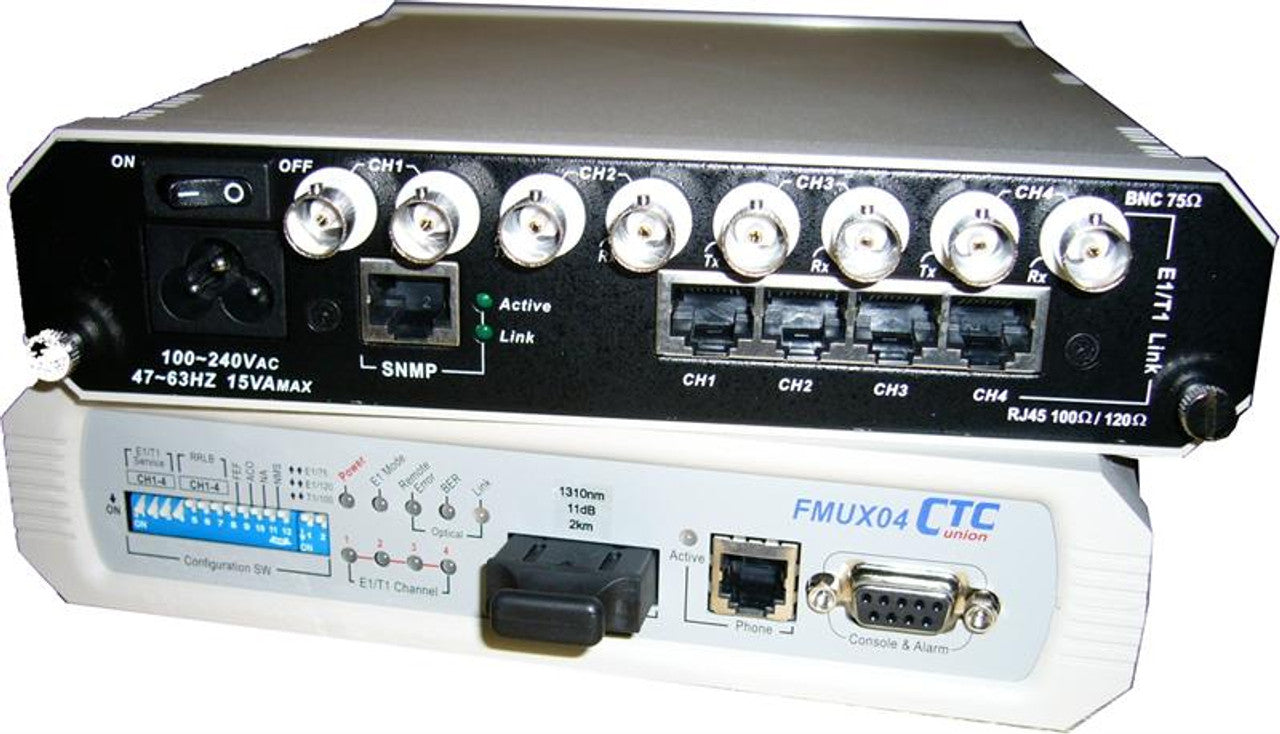

FMUX04 has built in E1 and T1 interfaces. With a simple DIP switch selection or console CLI, the FMUX04 equipment can be used either under European E1 or US T1 standards. FMUX04 has a fixed configuration on 4T1/E1 interfaces and a single optical uplink port.
The FMUX04 unit can be managed through serial console as well as optional SNMP. The SNMP can be activated by installing an SNMP daughter board on the FMUX04. Also, the FMUX04 multiplexer support an optional Order Wire module that allows a telephone service line to be activated between locations for easier troubleshooting or service.
Fiber power budget according to available models

Model Distance Lambda Min. Output (dBm) Sensitivity (dBm) Power Budget (dB)
FMUX04AC-SC002 2Km 1310nm -20 -31 11
FMUX04AC-SC015 15Km 1310nm -24 -35 11
FMUX04AC-SC030 30Km 1310nm -15 -35 20
FMUX04AC-SC050 50Km 1310nm -8 -36 28
FMUX04AC-SC080 80Km 1550nm -5 -34 29
FMUX04AC-SC120 120Km 1550nm 0 -35 35
FMUX04AC-SC20A 20Km Tx:1310nm Rx:1550nm -15 -32 17
FMUX04AC-SC20B 20Km Tx:1550nm Rx:1310nm -18 -32 14
FMUX04AC-SC40A 40Km Tx:1310nm Rx:1550nm -7 -32 25
FMUX04AC-SC40B 40Km Tx:1550nm Rx:1310nm -8 -32 24
FMUX04AC-SC60A 60Km Tx:1310nm Rx:1550nm -5 -34 29
FMUX04AC-SC60B 60Km Tx:1550nm Rx:1310nm -5 -34 29
FMUX04AC-SC80A 80Km Tx:1310nm Rx:1550nm -2 -34 32
FMUX04AC-SC80B 80Km Tx:1550nm Rx:1310nm -2 -34 32
