FS-AC-1004, 802.11ax Wireless LAN Controller with 5 Gigabit Ethernet Ports, Seamless Wi-Fi Roaming, Manage up to 64 Wi-Fi 6 APs

The FS-AC-1004 is an ultra-reliable, super-secure wireless LAN controller that integrates functions of the AC, PoE switch, and gateway. It is designed to address the wired and wireless access and security needs of small and medium-sized enterprises, making it an ideal choice for local area networks within such businesses, hotels, educational institutions, etc.

It can be deployed in any layer 2 or layer 3 network structure. Without changing any network architecture and hardware equipment, wireless users can enjoy seamless roaming in the process of crossing different areas of the entire network.

Meeting the security and session integrity in mobile roaming and fully meeting the data interaction and smooth voice of Wi-Fi voice communication.

Specifications

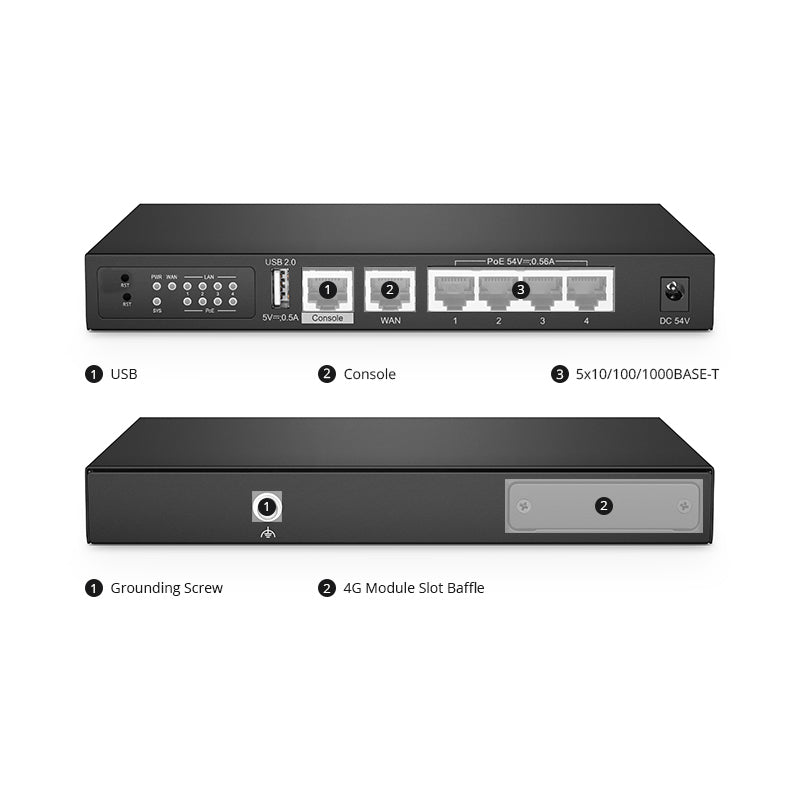

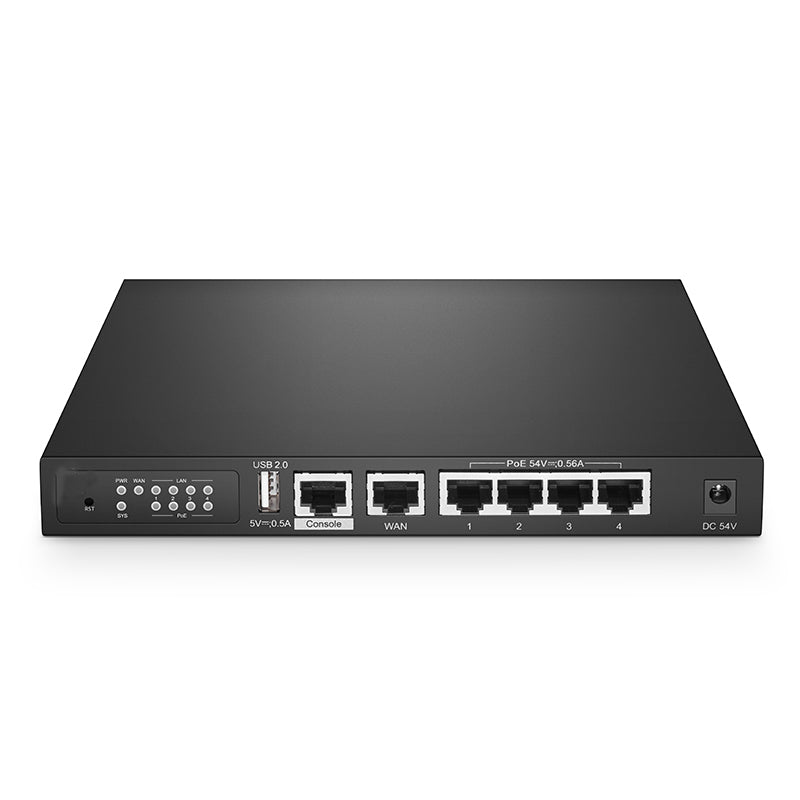

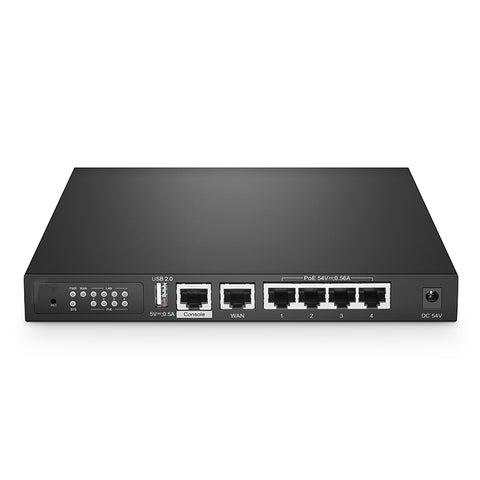

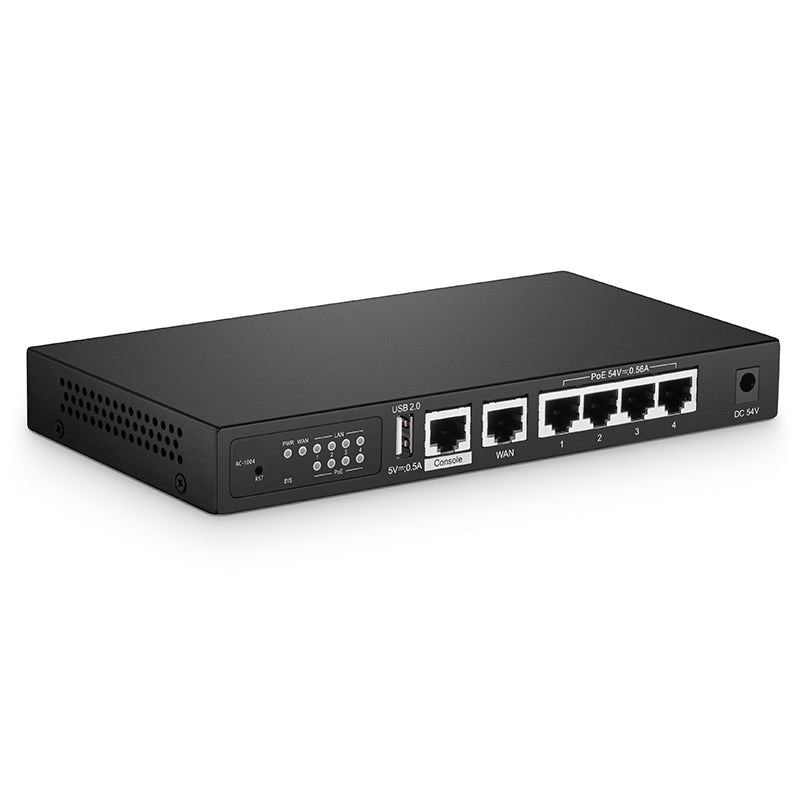

• Service Port: 1x 10/100/1000BASE-T ports, 4x 10/100/1000BASE-T ports(PoE Support)

• Console Port:(1) RJ45

• Max Number of Managed APs: 64

• Max Number of Access Users: 4000

• Throughput: 5G

• VLAN: 1000

• Layer: L2/L3

• Management: Web/Cloud

• Fan: Fanless

• Compatible Access Points: Wi-Fi 6 APs

• Max Power Consumption: ≤64.2W (PoE≤56W)

• MTBF (Hours): 250000

• Operating Temperature: -10°C~40°C

• Storage Temperature: -40°C~70°C

• Rated Voltage: DC54V, 50/60Hz

• Maximum Voltage: 54V/1.48A

• Humidity: 10%~90% (Non-condensing)

• Dimensions (HxWxD): 7.87"x4.33"x0.98" (200x110x25mm)

Product Highlights

• Up to 64 APs, 1000 Clients, and 5-Gbps Throughput

• Seamless L2/L3 Roaming for Users or Client Devices

• Multi-service Integrate Gateway/Router/PoE Switch

• Compact and Fanless Design for Virtually Anywhere

• Support Airware Cloud and Web-based Management

Connectivity Solutions

Central Management, All Under Control
Professional, centralized Wi-Fi network offers enterprise-class features and capacity for SME.

All-in-One, Comprehensive Integrated Network Services
Integrate AC, PoE switch, and gateway functions into one, simplifying wiring and easy networking.

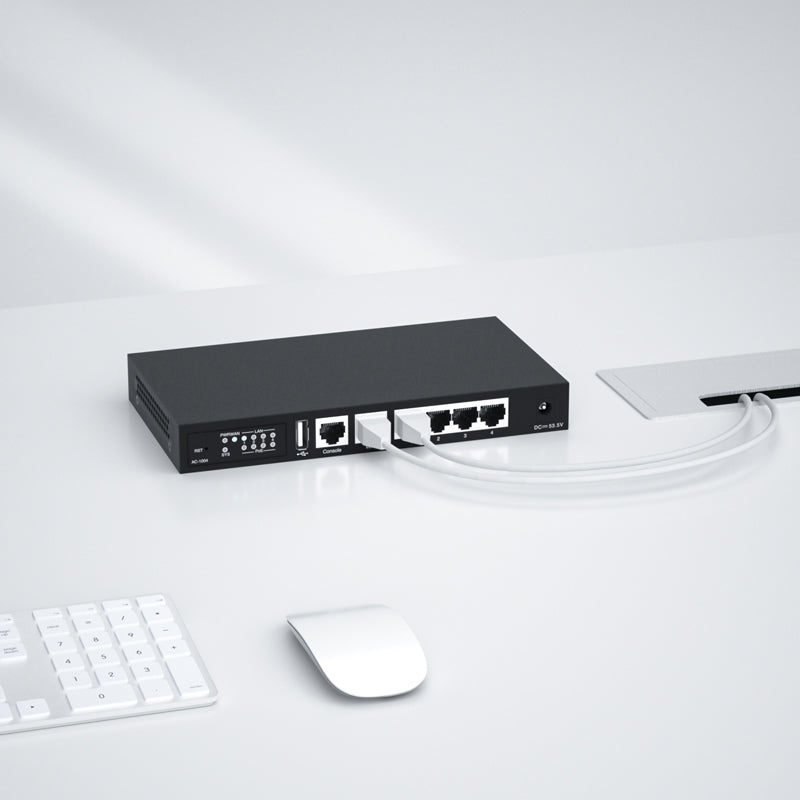

Compact Design, Silent Operation
Fanless design, easily placed on desktops, counters etc., and operate silently.

Triple Intelligent Control
Optimal and fair bandwidth allocation for stable and high-speed network experience.

Secured Wireless Edge from Online Threats
Create a robust security barrier to avoid attacks and improve data encryption.

Cloud-Based Network
Configuration and debugging online optimized remotely with Airware.
